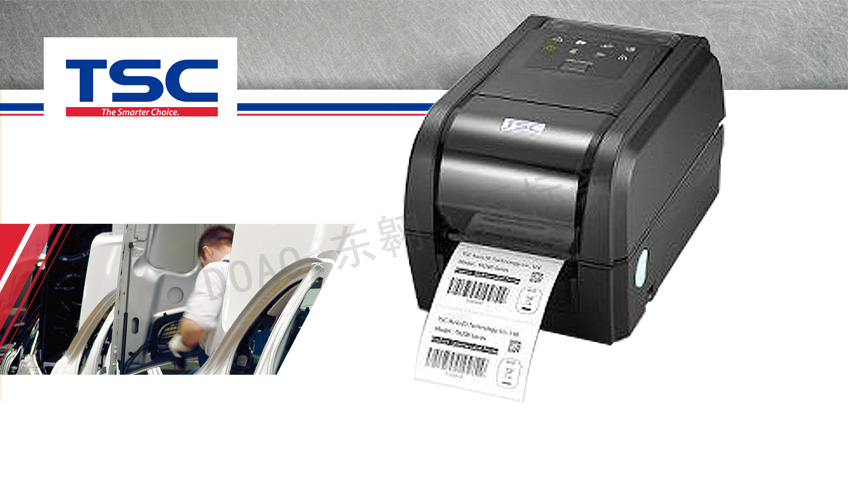

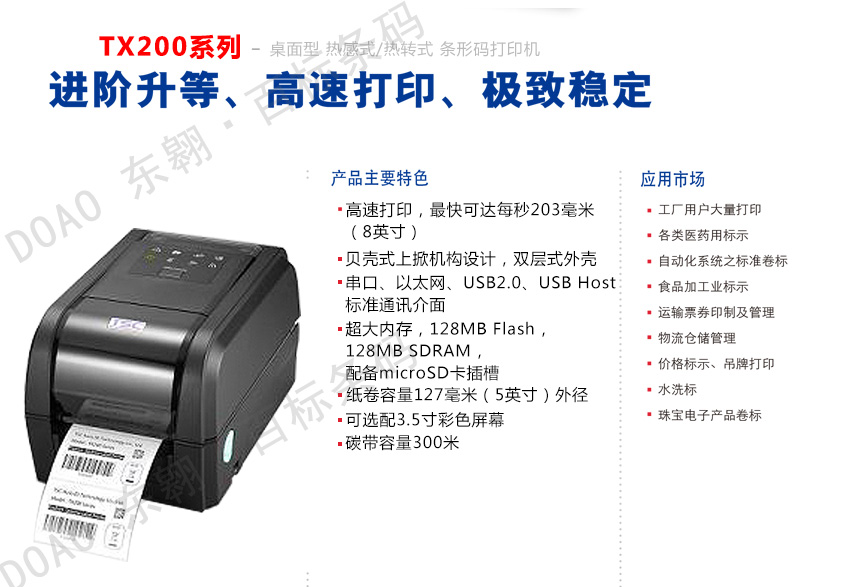

The product name
TX200 / TX300 / TX600
Print pattern
Heat transfer/heat inductance
resolution
203 DPI / 300 DPI / 600 DPI
Print speed
203 mm (8 ")/second, 152mm (6 ")/second, 102mm (4 ")/second
Maximum print width
108 mm (4.25), 106 mm (4.17 "), 106 mm (4.17)
Maximum print length
25,400mm (1,000 "), 11,430 mm (450 "), 2,540 mm (100 ")
Central processing unit (CPU)
32-bit efficient processors
memory
• 128 MB Flash memory
• 128 MB SDRAM
• the microSD card memory expansion slot can be extended to 32 GB
The sensor
• paper spacing sensor (penetration, position adjustable)
• black line marker sensor (reflective, adjustable position)
• the carbon band runs out of sensors
• raise the sensor in the print head
• paper spacing sensor (penetration, position adjustable)
• black line marker sensor (reflective, adjustable position)
• the carbon band runs out of sensors
• raise the sensor in the print head
• paper spacing sensor
• black line marker sensor (reflective, adjustable position)
• the carbon band runs out of sensors
• carbon ribbon speed sensors
• raise the sensor in the print head
The shell
ABS plastic
Operation panel
Power switch
• an action button (Pause, Feed)
• eight LED indicators
Power switch
• an action button (Pause, Feed)
• eight LED indicators
Power switch
• six action buttons (menu, feed/pause, up,
Down, left, right)
• the TFT color screen with a screen of 320 x 240
size
226 mm (wide) x 198 mm (high) x 332 mm (long)
8.90 "(wide) x 7.80" (high) x 13.07 "(long)
226 mm (wide) x 200 mm (high) x 332 mm (long)
8.90 "(wide) x 7.87" (high) x 13.07 "(long)
Instruction set
Tspl-eztm (compatible with EPL, ZPL, ZPL II)
Communication interface
• USB 2.0
• serial port (rs-232)
• built-in Ethernet servers
USB Host,
• Parallel port (Parallel) (optional)
• bluetooth (customer selection)
• 802.11b/g/n wireless network transmission (customer selection)
accessories
Windows volume editing software, driver, and operation manual
• quick installation guide
• USB transmission line
• the power cord
• external voltage automatic switch power supply
Operating temperature
Operating environment: 5 ~ 40 ° C, humidity (condensation) 25 ~ 85%
Storage temperature
Storage environment: - 40 ~ 60 ° C, humidity (condensation) 10 ~ 90%
Environment specification
Accord with RoHS, WEEE
Weight (including battery)
3.75kg (8.27 pounds), 4.08 kg (8.99 pounds)
Dealer selection
• peel off the module
• knife cutter (complete cut)
Waterproof and waterproof specifications
IP54 (for protective bags)
Safety certification
FCC Class B, CE Class B, RCM, UL, cUL, TUV/Safety, CCC
The thickness of the paper
0.055 ~ 0.254 mm (2.17 ~ 10 mil)
The paper type
Continuous paper, spacing paper, black marker, hanging, folding paper (outer volume)
The paper width
19 ~ 112 mm (0.75 "~ 4.4")
Maximum roll size
127mm (5) outer diameter, 25.4 ~ 38.1mm (1 "~ 1.5") paper scrolls
The barcode
• one-dimensional bar code
Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN -8, EAN -13, EAN -128, upc-a,
Upc-e, EAN and UPC 2 (5) digits add - on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11
• 2d barcode
Pdf-417, Maxicode, DataMatrix, QR code, Aztec, GS1 DataBar Composite code
Internal font
• eight bitmap fonts
• a Monotype ® CG Triumvirate Bold Condensed vector fonts and True Type Font Type generator
• use software to download Windows fonts
The factory equipped with
• Parallel port (Parallel)
• date/time generator (RTC)
• TFT color screen
• the carbon band runs out of sensors
• Parallel port (Parallel)
• date/time generator (RTC)
• TFT color screen
• the carbon band runs out of sensors
• Parallel port (Parallel)
Customer optional
Bluetooth wireless transmission module (serial port interface)
• 802.11b/g/n wireless network module (serial port interface)
• single machine operating keyboard (KP - 200 PLUS, ku-007 PLUS)
