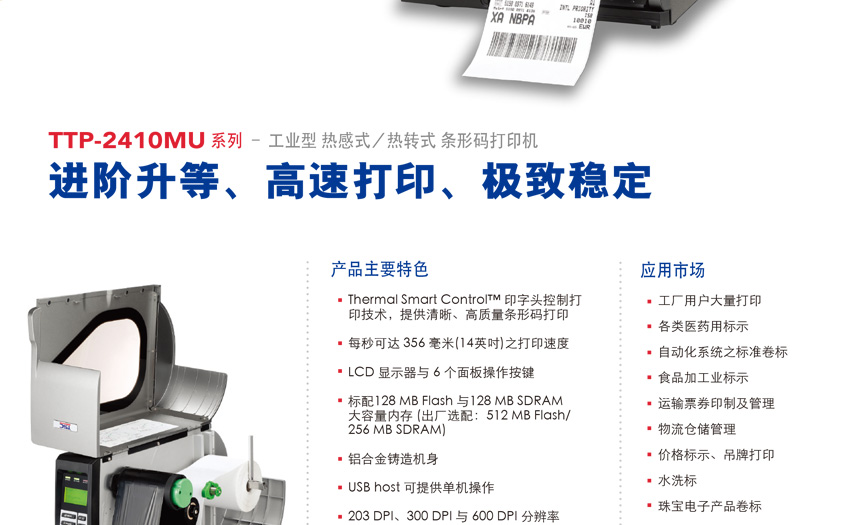

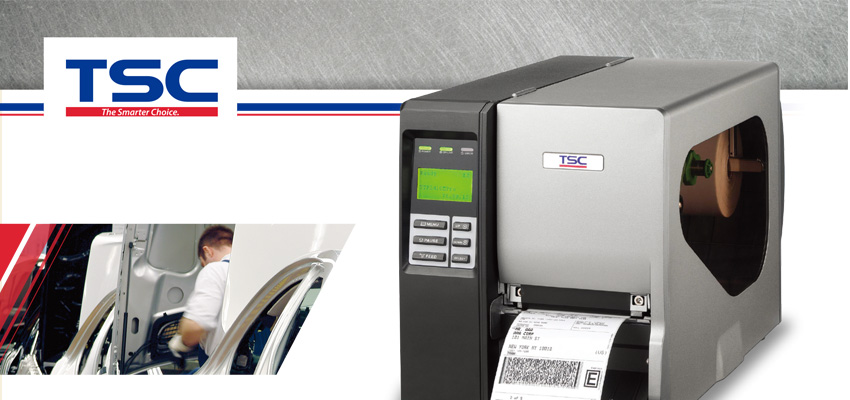

The product name
TTP - 2410 mu/TTP - 346 mu/TTP - 346 mu
Print pattern
Heat transfer/heat inductance
resolution
8 points/mm (203 DPI), 12 points/mm (300 DPI), 24 points/mm (600 DPI)
Print speed
356 mm (14 ")/second, 254 mm (10 ")/second, 102 mm (4 ")/second
Maximum print width
104mm (4.09)
Maximum print length
25,400mm (1,000 "), 11,430 mm (450 "), 2,540 mm (100 ")
Central processing unit (CPU)
32-bit efficient processors
memory
• 128 MB Flash memory (optional: 512 MB)
• 128 MB SDRAM (optional: 256 MB)
The SD card memory expansion slot can be extended to 32 GB
The sensor
• paper spacing sensor (penetration, position adjustable)
• black line marker sensor (reflective, adjustable position)
• the carbon band runs out of sensors
• carbon ribbon speed sensors
• raise the sensor in the print head
The shell
Aluminum alloy foundry printing mechanism module and main structure, metal case, transparent large window design
Operation panel
Display screens 128 by 64 and backlight
A power switch, six operation buttons (Menu, Pause, Feed, Up, Down, Select)
size
270 mm (wide) x 308 mm (high) x 505mm (long)
10.63 "x 12.13" (high) x 20.28 "(long)
Instruction set
Tspl-eztm (compatible with EPL, ZPL, ZPL II)
Communication interface
• serial port (rs-232)
• Parallel port (Parallel)
• USB 2.0
• built-in Ethernet servers
• USB host, which supports single machine operating keyboard and bar code scanner
• GPIO (optional)
• bluetooth (customer selection)
• 802.11b/g/n wireless network transmission (customer selection)
accessories
Windows volume editing software, driver, and operation manual
• quick installation guide
USB cable,
• the power cord
Operating temperature
Operating environment: 5 ~ 40 ° C, humidity (condensation) 25 ~ 85%
Storage temperature
Storage environment: - 40 ~ 60 ° C, humidity (condensation) 5 ~ 90%
Environment specification
Accord with RoHS, WEEE
Weight (including battery)
15kg (33.07 pounds)
Dealer selection
• roll rewinding module (includes rollback guide board and internal label rewinding device). Maximum volume of paper capacity: 6 inch diameter
• stripping module (contains the volume label stripping device, internal bottom paper return coil, and label stripping sensor)
Waterproof and waterproof specifications
IP54 (for protective bags)
Safety certification
FCC Class A, CE Class A, c-tick Class A, UL, CUL, TUV/Safety, CCC, CB
The thickness of the paper
0.06 ~ 0.30 mm (2.36 ~ 11.81 mil)
The paper type
Continuous paper, spaced paper, perforated paper, folded paper, black marker, elevator, ticket, water, etc. (outer volume)
The paper width
25.4 ~ 116 mm (1 "~ 4.5")
Maximum roll size
208.3 mm (8.2 ") outer diameter, 25.4 ~ 76.2 mm (1 "~ 3") paper scrolls
The barcode
• one-dimensional bar code
Code 39, Code 93, Code 128UCC, Code 128 subsets A.B.C, Codab ar, Interleave 2 of 5, EAN -8, EAN -13, EAN -128, upc-a,
Upc-e, EAN and UPC 2 (5) digits add - on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Logmars
• 2d barcode
Pdf-417, Maxicode, DataMatrix, QR Code, Aztec
Internal font
• eight bitmap fonts
• a Monotype ® CG Triumvirate Bold Condensed vector fonts and True Type Font Type generator
• use software to download Windows fonts
The factory equipped with
• the GPIO interface module
• memory upgrade (512 MB Flash / 256 MB SDRAM)
Customer optional
Bluetooth wireless transmission module (serial port interface)
• 802.11b/g/n wireless network module (serial port interface)
• normal cutting knife (full-cut blade cutter)
• heavy use of a knife (spin)
• wash knife (rotating)
• single operating keyboard (ku-007 Plus & KP - 200 Plus)
