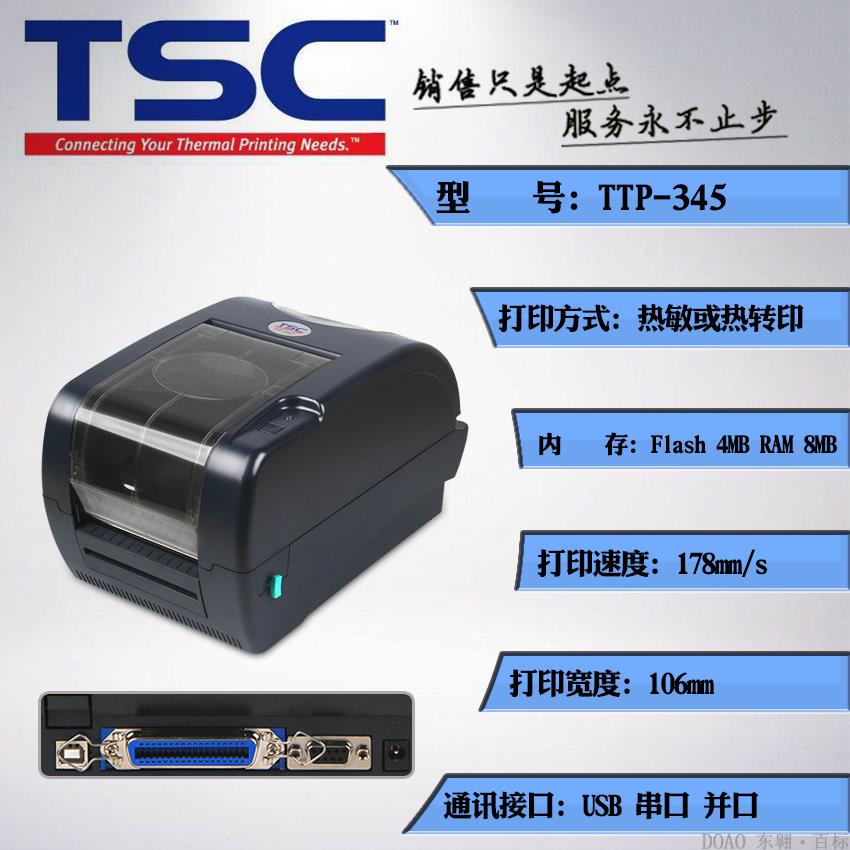

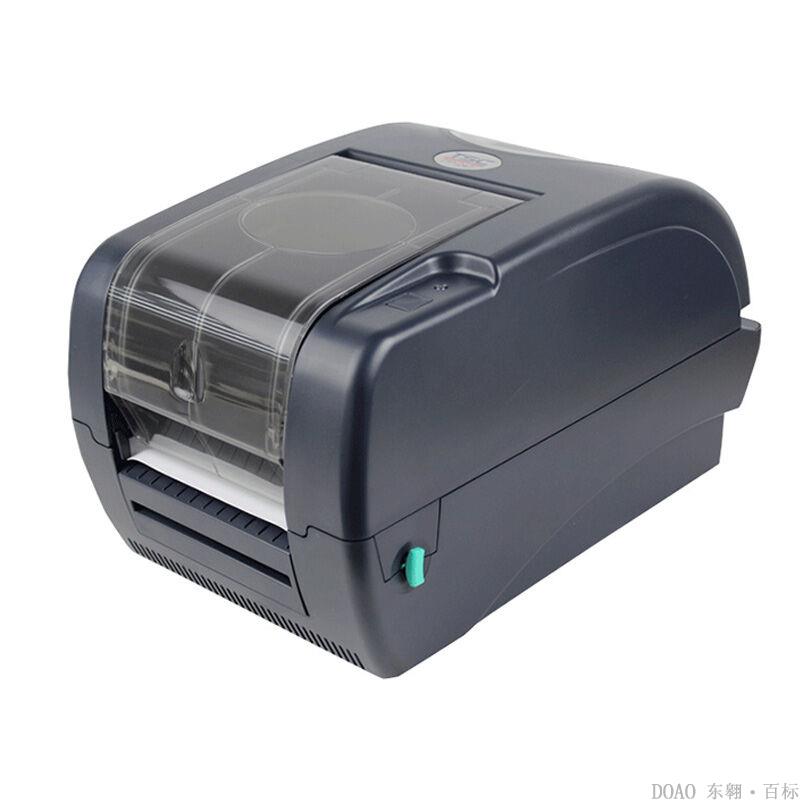

The product name
TDP - 345
Print pattern
Thermal type
resolution
203 DPI / 203 DPI
Print speed
178 mm (7)/SEC, 127mm (5 ")/SEC
Maximum print width
1010mm (4.25 "), 106 mm (4.17)
Maximum print length
2, 286 mm (90), 1, 016 mm (40)
Central processing unit (CPU)
32-bit efficient processors
memory
• 4 MB Flash memory
• 8 MB SDRAM
The SD card memory expansion slot can be extended to 4 GB
The sensor
• paper spacing sensor
• black line marker sensor (reflective, adjustable position)
• raise the sensor in the print head
The shell
Double ABS plastic
Operation panel
Power switch, paper key, LED indicator (3 colors: green, orange, red)
size
200mm (wide) x 164 mm (high) x 240mm (long)
7.87 "(wide) x 6.46" (high) x 9.45 "(long)
Instruction set
Tspl-eztm (compatible with EPL, ZPL, ZPL II)
Communication interface
• USB 2.0
• serial port (rs-232)
• Parallel port (Parallel)
• built-in Ethernet server (optional)
• bluetooth (customer selection)
• 802.11b/g/n wireless network transmission (customer selection)
accessories
Windows volume editing software, driver, and operation manual
• quick installation guide
• USB transmission line
• the power cord
• external voltage automatic switch power supply
Paper scrolls, paper coils x 2, 1.5 "paper scrolls x 2
Operating temperature
5 ~ 40 ° C, humidity (condensation) 25 ~ 85%
Storage temperature
- 40 ~ 60 ° C, humidity (condensation) 10 ~ 90%
Environment specification
Accord with RoHS, WEEE
Weight (including battery)
1.9 kg (4.19 pounds)
The power supply specifications
The external voltage switch automatically switches the power supply
• exchange input: AC 100-240v, 2.5a, 47-63hz
• DC output: DC 24V, 3.75 A, 90W
The length of the label
10 ~ 2,286 mm (0.39 "~ 90"); 10 ~ 1, 016 mm (0.39 "~ 40")
Safety certification
The FCC, CE Class B, Class B C - Tick Class B, UL, CUL, TUV/Safety, CCC, ENERGY STAR ®
The thickness of the paper
0.06 ~ 0.19 mm (2.36 ~ 7.48mm)
The paper type
Continuous paper, spacing paper, black marker, hanging, folding paper... Etc. (outer volume)
The paper width
20 ~ 112 mm (0.78 ~ 4.4)
Maximum roll size
127mm (5 ") outside diameter, 25.4 ~ 76.2 millimetre (1 "~ 3") paper scrolls
The barcode
• one-dimensional bar code
Code 39, the Code 93, 128 ucc Code, Code 128 subset of A, B, C, Codabar, Interleave 2 of 5, EAN - 8, EAN 13, EAN - 128, UPC - A,
Upc-e, EAN and UPC 2 (5) digits add - on, MSI, PLESSEY, POSTNET, RSS -stacked, GS1 DataBar, Code 11 China Post
• 2d barcode
Pdf-417, Maxicode, DataMatrix, QR Code, Aztec
Built-in fonts
• eight bitmap fonts
• a Monotype ® CG Triumvirate Bold Condensed vector fonts and True Type Font Type generator
• use software to download Windows fonts
The factory equipped with
• built-in Ethernet print server
Real-time clock (RTC)
Customer optional
Bluetooth wireless transmission module (serial port interface)
• 802.11b/g/n wireless network module (serial port interface)
• external paper holder (the maximum size 8.4 "can be paired with 1" or 3 "paper scrolls)
• 3 "paper scrolls
• single machine operating keyboard (KP - 200 PLUS, ku-007 PLUS)
