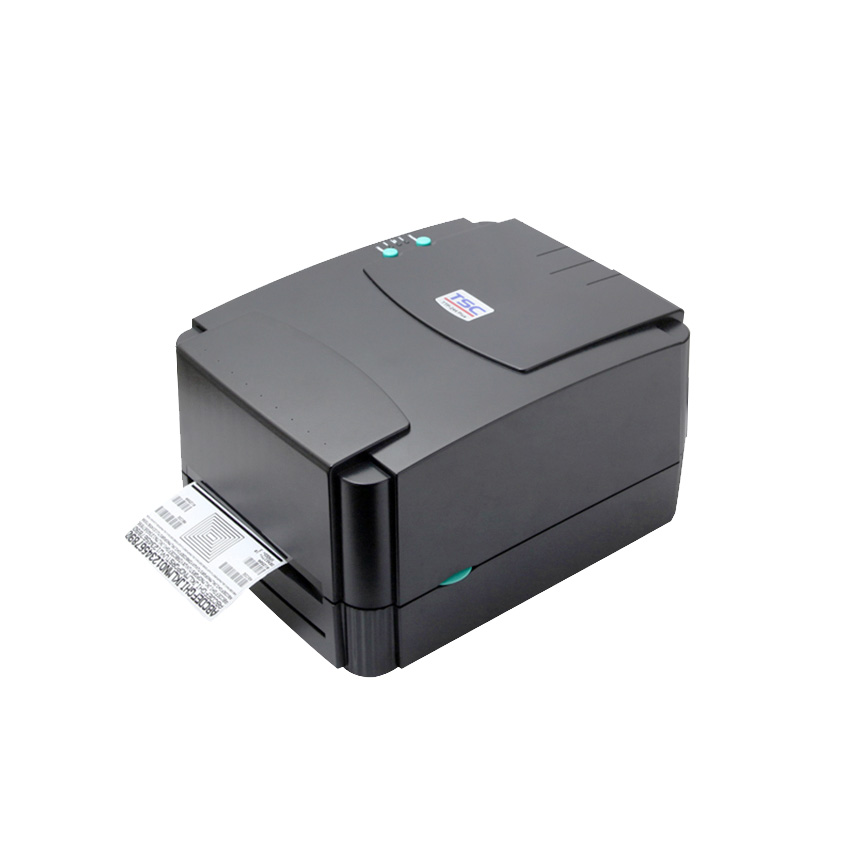

TSC TTP-243E Pro bar code printer

Brand: TSC platform half
Model: TTP - 243 - e Pro
Product main features: double motor design, effectively extending the service life of the machine 4 MB Flash, 8 MB SDRAM memory capacity SD card memory expansion slot (maximum extend to 4 GB) super carbon capacity, can accommodate 300 meters carbon belt can hold paper roll size 214 mm (8.4 inch) diameter standard transport interface: serial port and USB 2.0 ports can be shopping for external paper roll paper roll (up to 8.4 inch diameter, with 1 inch or 3 inch paper scrolls) long warranty, the whole machine for 2 years.

DetailParameterDownloadVideo data

The product name

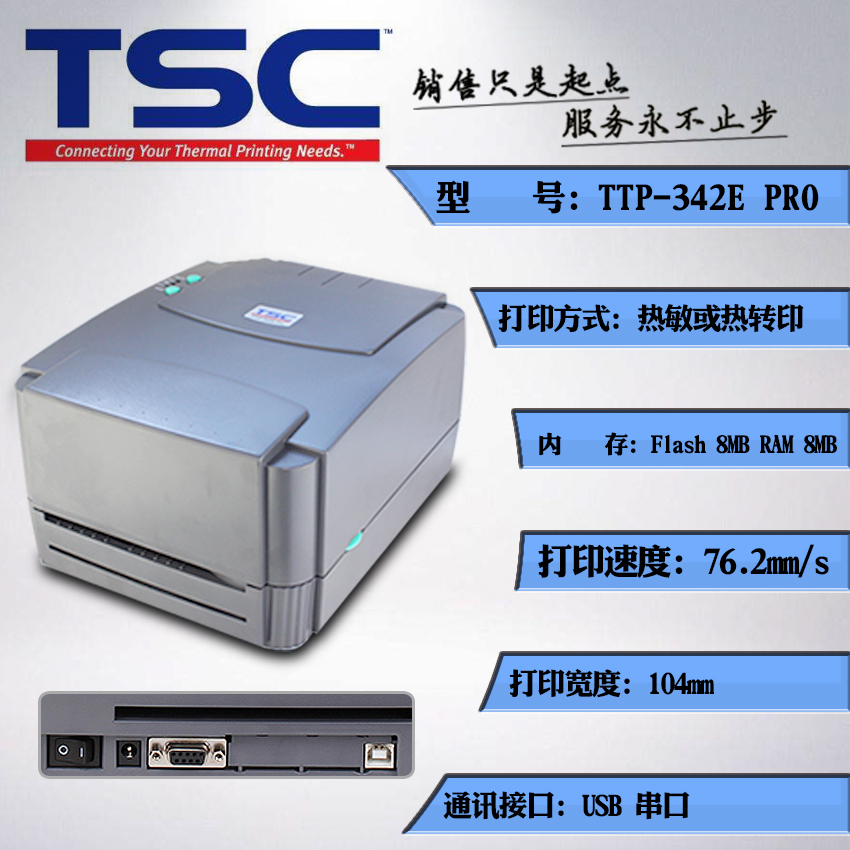

Ttp-243 Pro/ttp-243e Pro/ttp-342e Pro

Print pattern

Heat transfer/heat inductance

resolution

203 DPI / 203 DPI / 300 DPI

Print speed

76mm (3)/SEC, 76mm (3 ")/SEC, 51 mm (2 ")/second

Maximum print width

104 mm (4.09), 104mm (4.09 "), 104mm (4.09 ")

Maximum print length

2,286 mm (90 "), 2,286 mm (90 "), 1,016mm (40)

Central processing unit (CPU)

32-bit efficient processors

memory

• 4 MB Flash memory

• 8 MB SDRAM

• SD card memory expansion slots can be extended to 4 GB (customer selection)

The sensor

• paper spacing sensor

• black line marker sensor (reflex)

• the carbon band runs out of sensors

• raise the sensor in the print head

• paper spacing sensor

• black line marker sensor (reflex)

• the carbon band runs out of sensors

• paper spacing sensor

• black line marker sensor (reflex)

• the carbon band runs out of sensors

The shell

ABS plastic

Operation panel

Power switch, paper key, pause button, LED indicator (power, error, standby)

size

232 mm (wide) x 156 mm (high) x 288 mm (long)

9.13 "(width) x 6.14" (high) x 11.34 "(long)

Instruction set

TSPL, TPLE (compatible with EPL II)

Communication interface

• USB 2.0

• serial port (rs-232)

• Parallel port (Parallel) (optional)

• bluetooth (customer selection)

• 802.11b/g/n wireless network transmission (customer selection)

accessories

• Windows script editing software, driver, and operation

A manual CD

• quick installation guide

• USB transmission line

• the power cord

• the external voltage switch automatically switches the power supply

• paper scrolls and paper coils x 2

• carbon reel x 2

• carbon recycled paper cartridge

• external paper holder

Windows volume editing software, driver, and operation manual

• quick installation guide

USB cable,

• the power cord

• the external voltage switch automatically switches the power supply

• paper scrolls and paper coils x 2

• carbon reel x 2

• carbon recycled paper cartridge

• external paper holder

Windows volume editing software, driver, and operation manual

• quick installation guide

USB cable,

• the power cord

• the external voltage switch automatically switches the power supply

• paper scrolls and paper coils x 2

• carbon reel x 2

• carbon recycled paper cartridge

• external paper holder

Operating temperature

Operating environment: 5 ~ 40 ° C, humidity (condensation) 25 ~ 85%

Storage temperature

Storage environment: - 40 ~ 60 ° C, humidity (condensation) 10 ~ 90%

Environment specification

Accord with RoHS, WEEE

Weight (including battery)

2.5 kilograms (5.51 pounds)

Dealer selection

• rotary cutter (complete cut)

There is no

Waterproof and waterproof specifications

IP54 (for protective bags)

Safety certification

FCC Class A, CE Class A, c-tick Class A, TUV/Safety, CCC

The thickness of the paper

0.06 ~ 0.25 mm (2.36 ~ 9.84 mille)

The paper type

Continuous paper, spacing paper, black marker, hanging, folding paper, ticket... Etc. (outer volume)

The paper width

25.4 ~ 114 mm (1 "~ 4.49")

Maximum roll size

Inside: 110 mm (4.33)) outside

Outside: 214mm (8.42)

254 ~ 76.2 mm (1 "~ 3") paper scrolls

The barcode

• one-dimensional bar code

Code 39, the Code 93, 128 ucc Code, Code 128 subset of A, B, C, Coda bar, Interleave 2 of 5, EAN - 8, EAN 13, EAN - 128, UPC - A,

Upc-e, EAN and UPC 2 (5) digits add - on, MSI, PLESSEY, POSTNE T, RSS -, GS1 DataBar, Code 11

• 2d barcode

Pdf-417, Maxicode, DataMatrix, QR Code, Aztec

Internal font

• eight bitmap fonts

• use software to download Windows fonts

The factory equipped with

Parallel port (Parallel) and serial port (rs-232)

• place the Chinese paper spacing sensor

Customer optional

Bluetooth wireless transmission module (serial port interface)

• 802.11b/g/n wireless network module (serial port interface)

• SD memory card slot module

• 3 "paper scrolls

• single machine operating keyboard (KP - 200 PLUS, ku-007 PLUS)

Bluetooth wireless transmission module (serial port interface)

• 802.11b/g/n wireless network module (serial port interface)

• SD memory card slot module

• 3 "paper scrolls

• single machine operating keyboard (KP - 200 PLUS, ku-007 PLUS), external paper holder (maximum diameter 8.4 "can be paired with 1" or

3 "paper scroll)

Bluetooth wireless transmission module (serial port interface)

• 802.11b/g/n wireless network module (serial port interface)

• SD memory card slot module

• 3 "paper scrolls

• single machine operating keyboard (KP - 200 PLUS, ku-007 PLUS)

The product name

Ttp-243 Pro/ttp-243e Pro/ttp-342e Pro

Print pattern

Heat transfer/heat inductance

resolution

203 DPI / 203 DPI / 300 DPI

Print speed

76mm (3)/SEC, 76mm (3 ")/SEC, 51 mm (2 ")/second

Maximum print width

104 mm (4.09), 104mm (4.09 "), 104mm (4.09 ")

Maximum print length

2,286 mm (90 "), 2,286 mm (90 "), 1,016mm (40)

Central processing unit (CPU)

32-bit efficient processors

memory

• 4 MB Flash memory

• 8 MB SDRAM

• SD card memory expansion slots can be extended to 4 GB (customer selection)

The sensor

• paper spacing sensor

• black line marker sensor (reflex)

• the carbon band runs out of sensors

• raise the sensor in the print head

• paper spacing sensor

• black line marker sensor (reflex)

• the carbon band runs out of sensors

• paper spacing sensor

• black line marker sensor (reflex)

• the carbon band runs out of sensors

The shell

ABS plastic

Operation panel

Power switch, paper key, pause button, LED indicator (power, error, standby)

size

232 mm (wide) x 156 mm (high) x 288 mm (long)

9.13 "(width) x 6.14" (high) x 11.34 "(long)

Instruction set

TSPL, TPLE (compatible with EPL II)

Communication interface

• USB 2.0

• serial port (rs-232)

• Parallel port (Parallel) (optional)

• bluetooth (customer selection)

• 802.11b/g/n wireless network transmission (customer selection)

accessories

• Windows script editing software, driver, and operation

A manual CD

• quick installation guide

• USB transmission line

• the power cord

• the external voltage switch automatically switches the power supply

• paper scrolls and paper coils x 2

• carbon reel x 2

• carbon recycled paper cartridge

• external paper holder

Windows volume editing software, driver, and operation manual

• quick installation guide

USB cable,

• the power cord

• the external voltage switch automatically switches the power supply

• paper scrolls and paper coils x 2

• carbon reel x 2

• carbon recycled paper cartridge

• external paper holder

Windows volume editing software, driver, and operation manual

• quick installation guide

USB cable,

• the power cord

• the external voltage switch automatically switches the power supply

• paper scrolls and paper coils x 2

• carbon reel x 2

• carbon recycled paper cartridge

• external paper holder

Operating temperature

Operating environment: 5 ~ 40 ° C, humidity (condensation) 25 ~ 85%

Storage temperature

Storage environment: - 40 ~ 60 ° C, humidity (condensation) 10 ~ 90%

Environment specification

Accord with RoHS, WEEE

Weight (including battery)

2.5 kilograms (5.51 pounds)

Dealer selection

• rotary cutter (complete cut)

There is no

Waterproof and waterproof specifications

IP54 (for protective bags)

Safety certification

FCC Class A, CE Class A, c-tick Class A, TUV/Safety, CCC

The thickness of the paper

0.06 ~ 0.25 mm (2.36 ~ 9.84 mille)

The paper type

Continuous paper, spacing paper, black marker, hanging, folding paper, ticket... Etc. (outer volume)

The paper width

25.4 ~ 114 mm (1 "~ 4.49")

Maximum roll size

Inside: 110 mm (4.33)) outside

Outside: 214mm (8.42)

254 ~ 76.2 mm (1 "~ 3") paper scrolls

The barcode

• one-dimensional bar code

Code 39, the Code 93, 128 ucc Code, Code 128 subset of A, B, C, Coda bar, Interleave 2 of 5, EAN - 8, EAN 13, EAN - 128, UPC - A,

Upc-e, EAN and UPC 2 (5) digits add - on, MSI, PLESSEY, POSTNE T, RSS -, GS1 DataBar, Code 11

• 2d barcode

Pdf-417, Maxicode, DataMatrix, QR Code, Aztec

Internal font

• eight bitmap fonts

• use software to download Windows fonts

The factory equipped with

Parallel port (Parallel) and serial port (rs-232)

• place the Chinese paper spacing sensor

Customer optional

Bluetooth wireless transmission module (serial port interface)

• 802.11b/g/n wireless network module (serial port interface)

• SD memory card slot module

• 3 "paper scrolls

• single machine operating keyboard (KP - 200 PLUS, ku-007 PLUS)

Bluetooth wireless transmission module (serial port interface)

• 802.11b/g/n wireless network module (serial port interface)

• SD memory card slot module

• 3 "paper scrolls

• single machine operating keyboard (KP - 200 PLUS, ku-007 PLUS), external paper holder (maximum diameter 8.4 "can be paired with 1" or

3 "paper scroll)

Bluetooth wireless transmission module (serial port interface)

• 802.11b/g/n wireless network module (serial port interface)

• SD memory card slot module

• 3 "paper scrolls

• single machine operating keyboard (KP - 200 PLUS, ku-007 PLUS)
