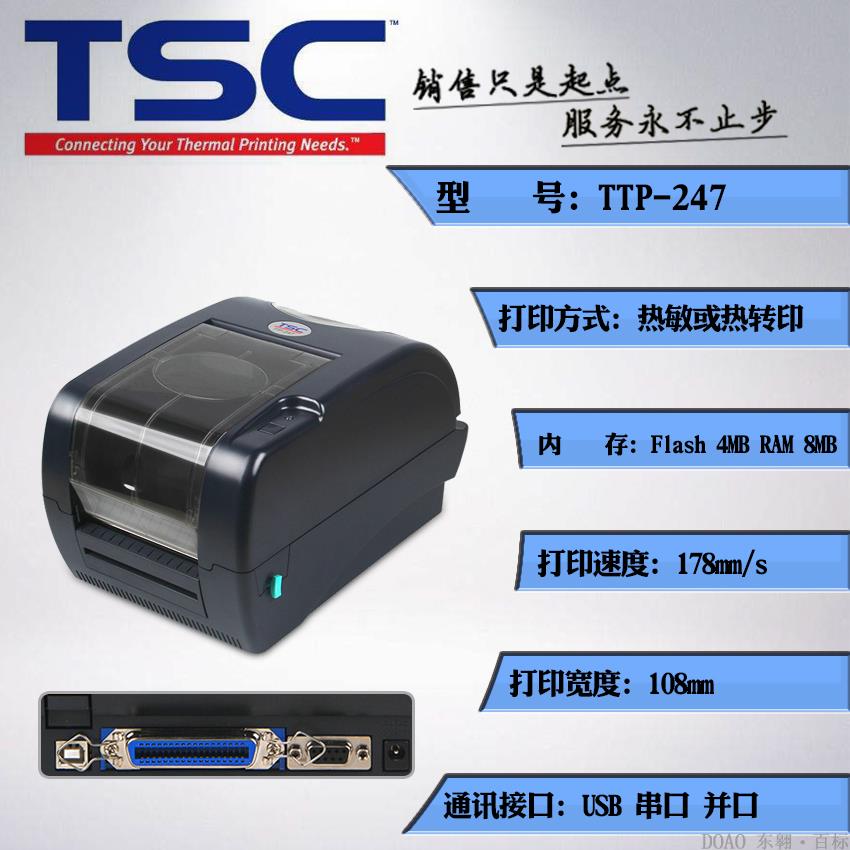

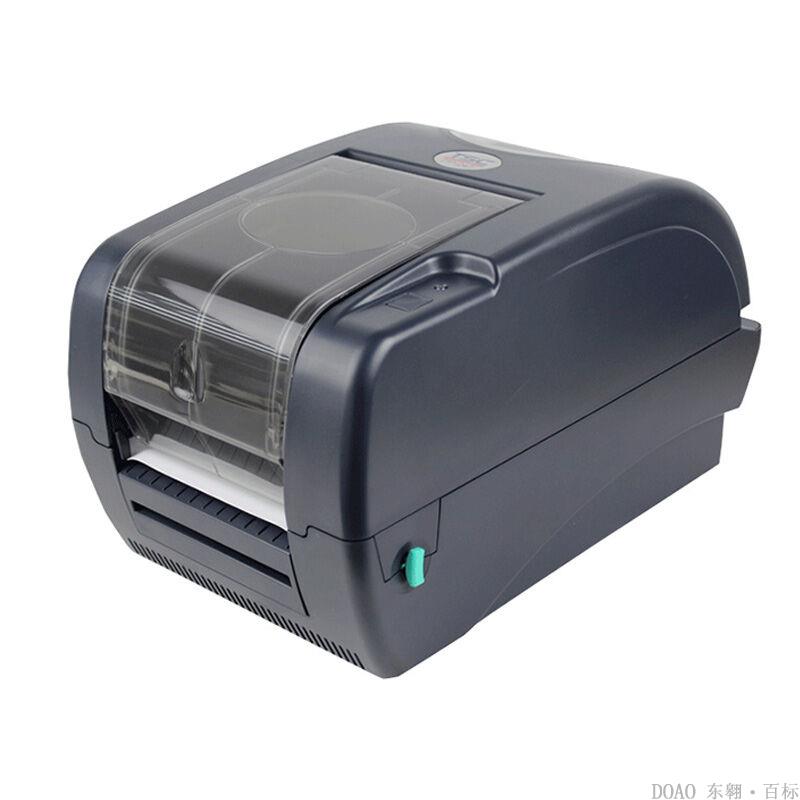

TSC ttp-247 barcode printer
Brand: TSC platform half
Model: TTP - 247
Product main features: double ABS chassis, durable 300 dpi and 203 dpi model synchronous high speed printing, 203 dpi model fastest up to 7 inches per second, 300 dpi model can be up to 5 inches per second large consumables capacity, built-in volume label paper roll can hold 5 inch diameter, tie-in external paper roll can be used as high as 8.4 inch diameter roll shell type lift cover design, material easy to install with SD card slot, memory expansion of convenient and economical mobile sensor tags.
DetailParameterDownloadVideo data

The product name

TDP - 247 / TDP - 345

Print pattern

Thermal type

resolution

203 DPI / 203 DPI

Print speed

178 mm (7)/SEC, 127mm (5 ")/SEC

Maximum print width

1010mm (4.25 "), 106 mm (4.17)

Maximum print length

2, 286 mm (90), 1, 016 mm (40)

Central processing unit (CPU)

32-bit efficient processors

memory

• 4 MB Flash memory

• 8 MB SDRAM

The SD card memory expansion slot can be extended to 4 GB

The sensor

• paper spacing sensor

• black line marker sensor (reflective, adjustable position)

• raise the sensor in the print head

The shell

Double ABS plastic

Operation panel

Power switch, paper key, LED indicator (3 colors: green, orange, red)

size

200mm (wide) x 164 mm (high) x 240mm (long)

7.87 "(wide) x 6.46" (high) x 9.45 "(long)

Instruction set

Tspl-eztm (compatible with EPL, ZPL, ZPL II)

Communication interface

• USB 2.0

• serial port (rs-232)

• Parallel port (Parallel)

• built-in Ethernet server (optional)

• bluetooth (customer selection)

• 802.11b/g/n wireless network transmission (customer selection)

accessories

Windows volume editing software, driver, and operation manual

• quick installation guide

• USB transmission line

• the power cord

• external voltage automatic switch power supply

Paper scrolls, paper coils x 2, 1.5 "paper scrolls x 2

Operating temperature

5 ~ 40 ° C, humidity (condensation) 25 ~ 85%

Storage temperature

- 40 ~ 60 ° C, humidity (condensation) 10 ~ 90%

Environment specification

Accord with RoHS, WEEE

Weight (including battery)

1.9 kg (4.19 pounds)

The power supply specifications

The external voltage switch automatically switches the power supply

• exchange input: AC 100-240v, 2.5a, 47-63hz

• DC output: DC 24V, 3.75 A, 90W

The length of the label

10 ~ 2,286 mm (0.39 "~ 90"); 10 ~ 1, 016 mm (0.39 "~ 40")

Safety certification

The FCC, CE Class B, Class B C - Tick Class B, UL, CUL, TUV/Safety, CCC, ENERGY STAR ®

The thickness of the paper

0.06 ~ 0.19 mm (2.36 ~ 7.48mm)

The paper type

Continuous paper, spacing paper, black marker, hanging, folding paper... Etc. (outer volume)

The paper width

20 ~ 112 mm (0.78 ~ 4.4)

Maximum roll size

127mm (5 ") outside diameter, 25.4 ~ 76.2 millimetre (1 "~ 3") paper scrolls

The barcode

• one-dimensional bar code

Code 39, the Code 93, 128 ucc Code, Code 128 subset of A, B, C, Codabar, Interleave 2 of 5, EAN - 8, EAN 13, EAN - 128, UPC - A,

Upc-e, EAN and UPC 2 (5) digits add - on, MSI, PLESSEY, POSTNET, RSS -stacked, GS1 DataBar, Code 11 China Post

• 2d barcode

Pdf-417, Maxicode, DataMatrix, QR Code, Aztec

Built-in fonts

• eight bitmap fonts

• a Monotype ® CG Triumvirate Bold Condensed vector fonts and True Type Font Type generator

• use software to download Windows fonts

The factory equipped with

• built-in Ethernet print server

Real-time clock (RTC)

Customer optional

Bluetooth wireless transmission module (serial port interface)

• 802.11b/g/n wireless network module (serial port interface)

• external paper holder (the maximum size 8.4 "can be paired with 1" or 3 "paper scrolls)

• 3 "paper scrolls

• single machine operating keyboard (KP - 200 PLUS, ku-007 PLUS)
