The cable
wireless
Scanning performance
Image sensor
The CCD
pixel
2500
lighting
Red LED (622nm ~ 628nm)
Maximum decoding velocity
300 times/SEC.
Read code system
EAN - 13, Code128, EAN - 8, Code39, upc-a, upc-e, Codabar, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN - 128, GS1 Databar, PDF417, MicroPDF417, etc. (PDF417 and MicroPDF417 support length is less than 255 bytes)
Accuracy of literacy
P 3 mil
Typical reading depth *
EAN 13 (13mil) 40mm ~ 490mm
Code128 (10 mil) 35 mm to 370 mm
Code 39 (5mil) 100mm ~ 250mm
Barcode sensitivity * *
Tilt + 70 °; Deflection + 75 °
Sign contrast
20% or higher
Mechanical /
Electrical parameters
Communication interface
USB, RS232, PS2
USB and RS232
Appearance size (mm)

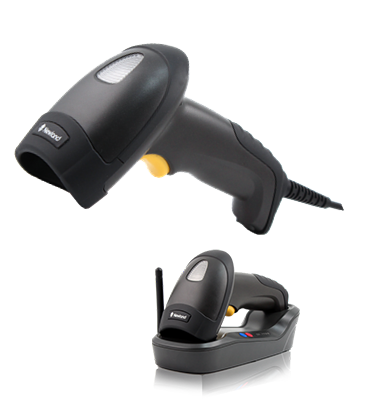

Scanning gun size 113.5 (W) x 73 (D) x 159 (H)
The base size is 195 (W) x 82.5 (D) by 47 (H)
The weight of the
The scanning gun weighs 152 grams
Scanning gun weight 210 g (including battery)
The base weighs 150 grams
prompt
Buzzer, LED indicator
Working voltage
5 VDC plus or minus 5%
Working current
103 ma
220 ma
Standby current
89 ma
105 ma
Environmental parameters
Working temperature
- 10 ° C to 50 ° C
Storage temperature
- 40 ℃ ~ + 70 ℃
Relative humidity
5% ~ 95% (no condensation)
Electrostatic protection
Plus or minus 4KV (contact discharge); Plus or minus 8KV (air discharge)
Drop height
1.2 meters
Protection grade
IP42
A. matching
Wireless performance
Communication mode
Synchronous mode/asynchronous mode/batch mode
Wireless standards
2.4 to 2.4835 GHz (ISM Band) Band, using Zigbee wireless communication technology
Transmission distance (open area)
50 meters or more
Storage capacity
128 k.
Battery capacity
2200 mAh
Battery charging time
3.5 hours
Continuous working time
More than 17 hours or 60, 000 consecutive scans
International certification
FCC Part15 Class B, CE EMC Class B
Accessories list
cable
USB
Square root
Square root
The RS - 232.
Square root
Square root
PS / 2
Square root
x
Support bracket
Square root
x
Smart stent
Square root
x
Power adapter
5V power adapter, output: DC 5V, 0.5 A; Input: AC 100 ~ 240V, 50 ~ 60Hz
* test conditions: temperature = 23 ℃; Ambient illumination = 300 LUX incandescent lamp; The sample code developed in the new world
* test conditions: test distance = (minimum depth + maximum depth) / 2;
The environment temperature = 23 ℃; Ambient illumination = 300 LUX incandescent lamp
The 2 d: QR CODE; 10 Bytes; Minimum width = 15 mil; PCS = 0.8;
* specifications are subject to change without prior notice
