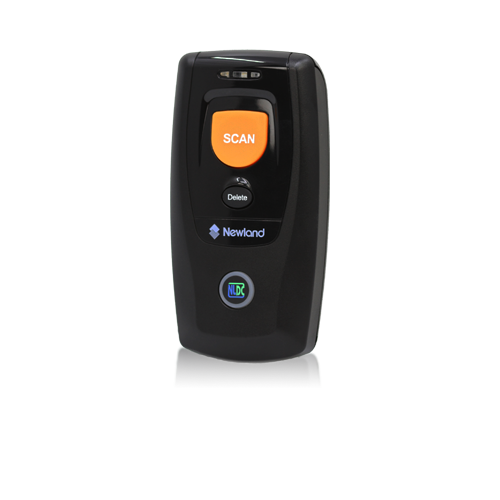

NLS - BS80-1 d
NLS - BS80-2 d
The performance parameters
Image sensor
2500 CCD
752 x 480 CMOS
Read code system
1D: Code 128, EAN - 13, EAN - 8, Code 39, upc-a, upc-e, Codabar, ISSN, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN - 128, GS1 Databar, etc
2D: PDF417, QR Code, Data Matrix
1D: Code 128, EAN - 13, EAN - 8, Code 39, upc-a, upc-e, Codabar, ISSN, Interleaved 2 of 5, ISBN, Code 93, UCC/EAN - 128, GS1 Databar, etc
Read the precision
P 5 mil
Typical reading depth
Code 39:105 mm - 175 mm (5 mil)
Code 128:60 mm - 340 mm (10 mil)
EN13:55 mm - 410 mm (13 mil)
EAN - 13, 65 mm - 65 mm (13 mil)
Code 39, 55 mm - 165 mm (5 mil)
The Data Matrix 65 mm - 140 mm (10 mil)
QR Code 45 mm - 175 - mm (15 mil)
PDF 417 65 mm - 65 mm (6.67 mil)
Barcode sensitivity
Tilt: plus or minus 55 °. Rotation: + 25 °; Deflection: + 75 °
Tilt: plus or minus 50 °; Rotation: + 360 °; Deflection: plus or minus 50 °
Minimum contrast
30%
Data interface
Micro USB, bluetooth HID/SPP wireless protocol
Bluetooth transmission distance
50 meters (free space)
Wireless standards
2.4-2.5 GHz (ISM spectrum), compatible with bluetooth 4.0/3.0/2.1 + EDR
Memory capacity
1MB (cumulative saving of more than 20,000 EAN - 13 barcode information)
Mechanical/electrical parameters
size
88.0 (long) x 46.0 (wide) x 24.5 (high) mm
The weight of the
62 g
prompt
Buzzer, LED indicator light, vibrator
The battery specification
3.7 V 900mA rechargeable lithium battery
Battery life
Can work for 11 hours continuously
(in synchronous mode, every 6 seconds is scanned and transmitted)
Can work for 6 hours continuously
(in synchronous mode, every 6 seconds is scanned and transmitted)
Charging time
3.5 hours
Power adapter
(optional)
Output: DC 5V, 500mA input: AC100 ~ 240V, 50 ~ 60Hz
current
Working current: 75mA (bluetooth enabled)
Standby current: 5mA
Working current: 125mA (bluetooth enabled)
Standby current: 12mA
Environmental parameters
Working temperature
- 20 ℃ ~ 50 ℃
Storage temperature
- 40 ℃ ~ 70 ℃
Relative humidity
5% ~ 95% (no condensation)
Electrostatic protection
Plus or minus 8 KV (contact discharge); Plus or minus 15 KV (air discharge)
Drop height
1.2 meters
Protection grade
IP42
certification
FCC Part15 Class B, CE EMC Class B
* specifications are subject to change without prior notice
