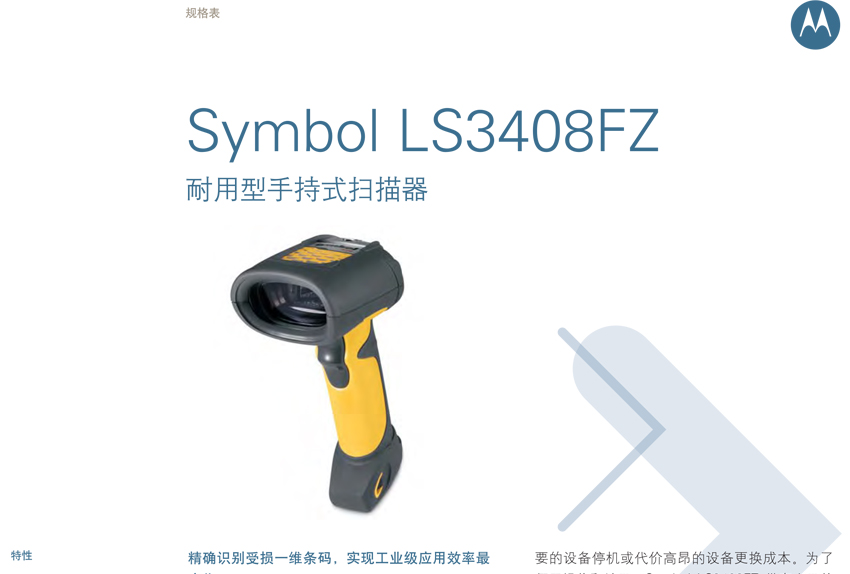

Zebra/Symbol LS3408 industrial barcode scanner

Symbol LS3408 industrial barcode scanner

Brand: ZEBRA/Symbol
Model: Symbol LS3408
Main features of the product:
1. Waterproof and dustproof, and can withstand the impact of falling from 2 meters to the cement floor
2. The high strength and powerful scanning capabilities of the XE class enable LS3408 to be the best choice for interpreting one-dimensional barcode in an industrial environment, such as a cargo yard, a manufacturing platform, and a warehouse
3. Large enhanced LED display screens and super-loud 75-db buzzers enable you to better understand the signal of the bar code in a noisy work environment
4. Adopt the highly praised "handle - forward" design to make the scanner more comfortable and reduce the fatigue caused by long time use of the scanner

DetailParameterDownloadVideo data

Size: 17 * 9.3 * 6.8 cm (high * width * depth)

Weight: about 6.4 ounces / 181 grams

Voltage and current: 5 + / -10% VDC @140ma (standby current: less than 35mA)

Color: yellow/twilight

Light source: 650nm laser diode

Horse speed: 50HZ

Decoding rate: 200 times per second

The light source tilts/leans/left/right deviation: + / -35, + / -60, + / -60 degrees

Rated operating distance: 13mm (100% UPC/EAN) : 0 to 19 inches (48.25cm); 5 mill (Code39) : 1.25 to 5.25 inches (3.17 to 13.33 cm)

Print contrast: 25% minimum reflection ratio

Fault tolerance: level speed: 200 inches (508 cm)/s

Vertical speed: 200 inches (508 cm) per second

Angle speed: 200 inches (508 cm) per second

Decoding functions: UPC/EAN and supplementary bar Code, Code 39, Code 39 Full ASCII, tri-optic Code 39, RSS feed, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5 MSI, Codell, IATA, Bookland EAN, Code 32

Support interface: rs-232c (Standard, Nixdorf, ICL, & Fujitsu); IBM / 469 x 468 x; Keyboard parallel; (Standard, IBM SurePOS, Macintosh); Laser/Wand Emulation; In addition, Adaptive Connectivity provides the above equipment and other non-standard interfaces

Operating temperature: 32 to 122 degrees Fahrenheit / 0 to 50 degrees Celsius

Storage temperature: -40 to 158 degrees Fahrenheit/minus 40 to 70 degrees Fahrenheit

Temperature: 5% to 95% noncondensing

Resistance to fall: fall from 6.5 feet / 2 meters at room temperature to the cement floor, and fall from 6 feet / 1.825 meters above the other operating temperature to the cement floor. It can still operate normally.

Environmental seal: using IP53 seal standard, effective dustproof and waterproof

Ambient lighting: direct exposure to general indoor lighting and direct sunlight outside

Electrical safety: get UL1950, CSA C22.2 No. 950, EN60950 / IEC950 certification

EMI/RFI: FCC part Class B, ba-003 Class B, European Union EMC Directive, Australian SMA

Laser safety: CDRH ClassII and IEC Class 2

The attachment

Erection options: adjustable height fixed scan seats: 5 to 10 inches / 12.7 to 25.4 cm

Adjustable Angle is 0 to 90 degrees; Table vertical and wall hanging type, fixed seat; A scanner sleeve with practice and check loop

Power supply: the supply of power supply to the application of power supply
