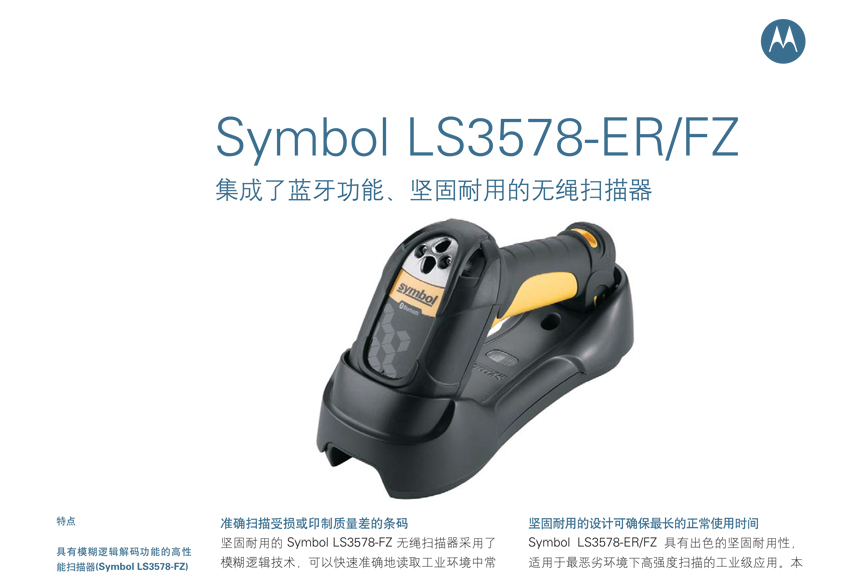

Symbol LS3578 - FZ durable one-dimensional bar code scanner

Brand: ZEBRA/Symbol
Model: Symbol LS3578 - FZ
Main features of the product:
1. The one-dimensional (1D) barcode of broken, polluted and poorly printed industrial environment can be read quickly and accurately
2. The technical personnel on the production line can scan the broken and contaminated barcode without using the cable connecting the host, thus saving their time and obtaining more accurate data
The use of cordless mode can reduce the downtime caused by cable failure
4. Innovative design not only make LS3578 FZ - more durable, and more accord with human body engineering design and strengthen the function of operation, can adapt to in the most extreme working conditions for industrial application of high strength and scanning

DetailParameterDownloadVideo data

Physical parameters

Size: 18.65 cm high x 12.25cm long x 7.43 cm wide

Weight (excluding cable) : 14.6 ounces / 414 g

Battery: 2200mAh lithium ion battery charging time: 3 hours full (100%) color: light black/yellow

The performance parameters

Type of scanner: Retrocollective

Light source: 650nm visible laser diode

Scan repeat: normally 36 times per second

Minimum width: 5mil (0.127 mm)

Print contrast: the lowest 25% emission difference

Rotation Angle: + -20 degrees

Tilt Angle: + -65 degrees

Migration perspective: + -50 degrees

Mobile fault-tolerant: for 100% 13milUPC up to 1.52 m/s, the effect of mobile fault tolerance depends on the type of barcode, the scanning distance and the quality of the printing

Decoding ability: UPC, EAN, UPC, EAN with Supplementals, UCC. EAN 13, 128, JAN 8 & Code 39, 39 Full ASCII Code, Code 39 Trioptic, Code 128, 128 Full ASCII Code, Codabar (NW7), Interleaved 2 of 5, Discrete '2 of 5, 93, MSI, Code 11 Code, Code 32, Bookland EAN, IATA, UCC/EAN RSS and RSS variants

Supported interfaces: USB, RS232, keyboard interface, and Synapse

Using the environment

Working temperature: - 4 ° F to 122 ° F / - 20 ° C to 50 ° C

Storage temperature: - 40 ° F to 140 ° F / - 40 ° to 60 ° C C

Humidity: relative humidity 5% to 95%, no condensation

Ability to withstand earthquakes: repeatedly fall from 6.5 feet / 2 meters to the cement floor and still function properly

Light resistance: in normal office and factory lighting environment or direct exposure to sunlight will not have any effect on it

Seal level: IP65

Number of rechargeable seats: 250,000 times inserted

Electrostatic discharge: conforms to 15kV air discharge and 8kV contact discharge specification

Charging base: STB3578 and FLB3578

Power requirements: 4.75-14vdc

Wireless specifications

Radio: Bluetooth Class2 Version1.2 serial port and HID Profiles

Frequency: 2.402 to 2.480 GHz adaptive frequency hopping and co-existence with 802.11 wireless networks

Data rate: 720Kbps

Wireless range: it can reach up to 100 meters in a straight line without shade, and the typical indoor wireless range is 33 meters, but its range varies depending on the specific environment
