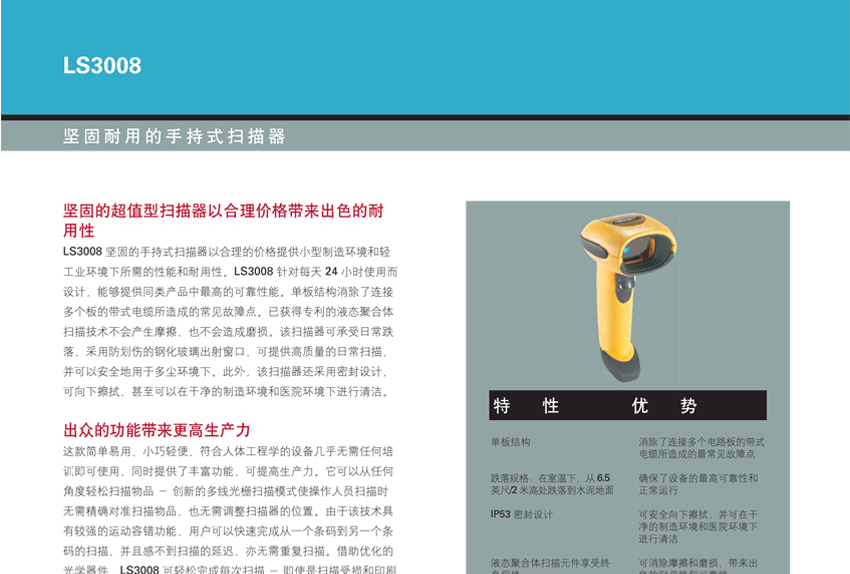

Zebra/ Symbol LS3008 one-dimensional barcode scanning express single-durable scanner

Symbol LS3008 one-dimensional bar code scanning grab

Brand: ZEBRA/Symbol
Model: Symbol LS3008
Main features of the product:
The innovative multi-line raster scan mode enables operators to scan without precise alignment of the scanning objects and adjusting the position of the scanner; Easy to scan for smaller, stacked, and poorly printed barcodes
Liquid polymer scanning technology eliminates friction and wear, ensuring excellent durability and reliability
The excellent mobile fault-tolerant feature can reduce the user's feeling of fatigue, allowing the user to scan the bar code quickly and continuously without feeling the delay, thus increasing the productivity
Suitable for scanning items ranging from 0 to 19 inches, providing comfortable, intuitive scanning
Remote scanner management (RSM) can significantly reduce administrative overhead and reduce administrative costs
The optional Intellistand can be easily switched between hands-free mode and handheld mode, allowing the operator to maintain maximum productivity

DetailParameterDownloadVideo data

Size: 17 * 9.3 * 6.8 cm (high * width * depth)

Weight: about 6.4 ounces / 181 grams

Voltage and current: 5 + / -10% VDC @140ma (standby current: less than 35mA)

Color: yellow/twilight

Light source: 650nm laser diode

Horse speed: 50HZ

Decoding rate: 200 times per second

The light source tilts/leans/left/right deviation: + / -35, + / -60, + / -60 degrees

Rated operating distance: 13mm (100% UPC/EAN) : 0 to 19 inches (48.25cm); 5 mill (Code39) : 1.25 to 5.25 inches (3.17 to 13.33 cm)

Print contrast: 25% minimum reflection ratio

Fault tolerance: level speed: 200 inches (508 cm)/s

Vertical speed: 200 inches (508 cm) per second

Angle speed: 200 inches (508 cm) per second

Decoding functions: UPC/EAN and supplementary bar Code, Code 39, Code 39 Full ASCII, tri-optic Code 39, RSS feed, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5 MSI, Codell, IATA, Bookland EAN, Code 32

Support interface: rs-232c (Standard, Nixdorf, ICL, & Fujitsu); IBM / 469 x 468 x; Keyboard parallel; (Standard, IBM SurePOS, Macintosh); Laser/Wand Emulation; In addition, Adaptive Connectivity provides the above equipment and other non-standard interfaces

Operating temperature: 32 to 122 degrees Fahrenheit / 0 to 50 degrees Celsius

Storage temperature: -40 to 158 degrees Fahrenheit/minus 40 to 70 degrees Fahrenheit

Temperature: 5% to 95% noncondensing

Resistance to fall: fall from 6.5 feet / 2 meters at room temperature to the cement floor, and fall from 6 feet / 1.825 meters above the other operating temperature to the cement floor. It can still operate normally.

Environmental seal: using IP53 seal standard, effective dustproof and waterproof

Ambient lighting: direct exposure to general indoor lighting and direct sunlight outside

Electrical safety: get UL1950, CSA C22.2 No. 950, EN60950 / IEC950 certification

EMI/RFI: FCC part Class B, ba-003 Class B, European Union EMC Directive, Australian SMA

Laser safety: CDRH ClassII and IEC Class 2

The attachment

Erection options: adjustable height fixed scan seats: 5 to 10 inches / 12.7 to 25.4 cm

Adjustable Angle is 0 to 90 degrees; Table vertical and wall hanging type, fixed seat; A scanner sleeve with practice and check loop

Power supply: the supply of power supply to the application of power supply
