Physical parameters
Size: 20.3 cm height x 13.7 cm long x 8.6 cm wide
Weight (excluding cable) : 12oz / 340 g
Input voltage and current: 5V + / -10%, 450mA (not optional RFID module); 5V + / -10%, 1.2 A (with optional RFID module)
Color: light black
The performance parameters

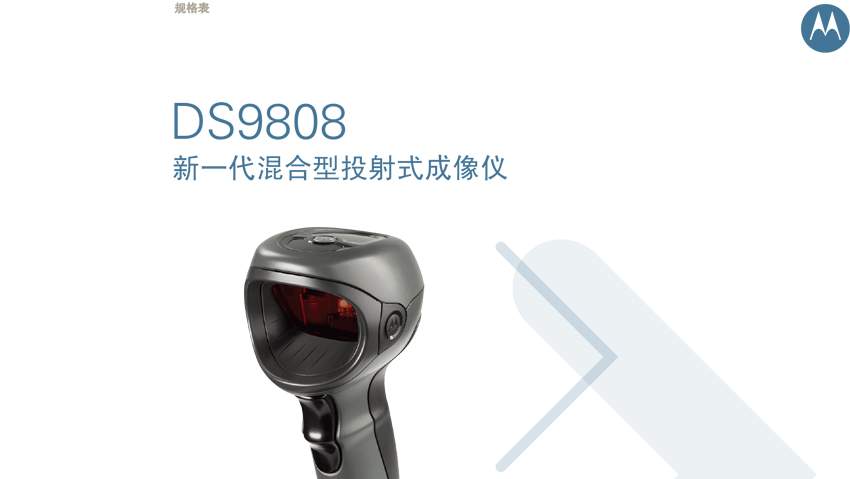

Symbol ds9808-sr and Symbol ds9808-lr imager model
Light source: target mode: 650nm laser diode, lighting: 630nm LED
Imaging scans area: 39 ° (level), 25 ° (vertical)
Rotate/tilt Angle offset perspective: 360 °, + / - 65 °, + / - 60 °
Bar code label speed: programmable, up to 254 cm per second (horizontal reading rate)
Symbol ds9808-lr laser scanning mode
Light source: 650nm LED
40 ° scan Angle: + / - 3 ° Angle (name)
Decoding ability
One dimensional Code: UPC, EAN, UPC, EAN with Supplementals, UCC. EAN 13, 128, JAN 8 & Code 39, 39 Full ASCII Code, Code 39 Trioptic, Code 128, 128 Full ASCII Code, Codabar (NW7), Interleaved 2 of 5, Discrete '2 of 5, 93, MSI, Code 11 Code, Code 32, Bookland EAN, IATA, UCC/EAN RSS and RSS variants
2d Code: PDF417, microPDF417, MaxiCode, Data Matrix (ECC 2000), Composite Codes and QR Code
Postal codes: U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, Australian Postal and Dutch Postal
Minimum resolution: code39-4mil; UPC - 7.8 mil; PDF417-5 mil; Datamatrix 5 mil -
Support interface: USB, RS232, RS485 (IBM46XX protocol), keyboard interface, Synapse
Rated work scope (handheld mode) :
Symbol DS9808 - LR
Code39-5mil: 0-12.7 cm; UPC/EAN - 10mil (80%) : 0-34.3 cm; UPC/EAN -13mil (100%) : 0-45.7 cm; Pdf417-6.6 mil: 0-12.7 cm; Datamatrix - 10mil: 0-15.2 cm
Symbol DS9808 - LR
Code39-5mil: 0-11.4 cm; UPC/EAN - 10mil (80%) : 0-21.6 cm; UPC/EAN - 13mil (100%) : 0-26.7 cm; Pdf417-6.6 mil: 0-12.7 cm; Datamatrix - 10mil: 0-15.2 cm
Rated work scope (non-holding mode) :
Symbol DS9808 - LR/Symbol DS9808 - the SR
Code39-5mil: 0-11.4 cm; UPC/EAN - 10mil (80%) : 0-17.8 cm; UPC/EAN - 13mil (100%) : 0-20.3 cm; Pdf417-6.6 mil: 0-11.4 cm; Datamatrix - 10mil: 0-11.4 cm
Imaging parameters
Supported image format: you can export images in Bitmap, JPEG, or TIFF format
Image transmission speed: USB2.0: maximum 12MB/SEC; RS232: maximum 115Kb/SEC
Image transmission time: for general USB applications, 100kb compressed JPEG image transmission time is about 0.2 seconds
Image quality: 120PPI (6.5 inches / 16.5cm) for 4 x 6 inches / 10.2 x 15.2 cm
Using the environment
Working temperature: 32 ° F to 104 ° F / 0 ° C to 40 ° C
Storage temperature: - 40 ° F to 158 ° F/to 40 ° C to 70 ° C
Humidity: relative humidity 5% to 95%, no condensation
Earthquake resistance: the repeated fall from 5 feet / 1.5 meters to the cement floor can still function normally
Anti-light: it can resist natural light and artificial light (i.e., sunlight, incandescent light, fluorescent lamp, mercury lamp, nano lamp)
Electrostatic discharge: conforms to 15kV air discharge and 8kV contact discharge specification
Option to
Electronic goods theft system: compatible with Checkpoint EAS decoder system
Accessories: mounting bracket on wall: RFID module (only applicable to Symbol ds9808-lr model)
RFID tag: Gen2 UHF (with optional RFID module), only applicable to Symbol ds9808-lr model
