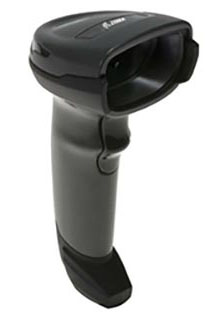

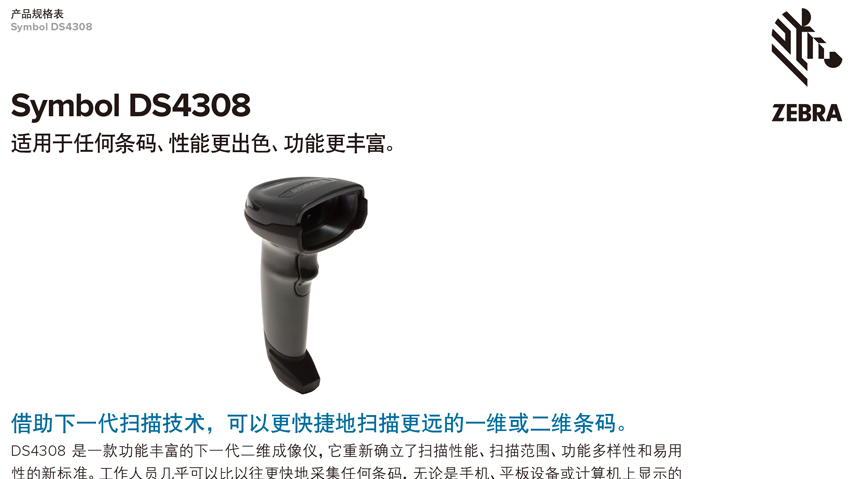

Zebra DS4308 2d handheld barcode scanning gun

Brand: ZEBRA
Model: DS4308

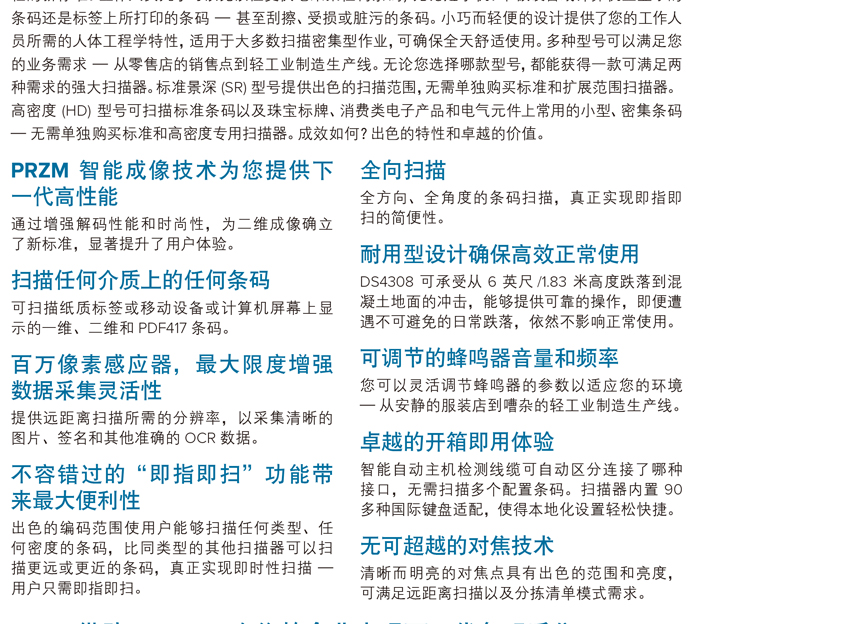

Main features of the product:
1. The PRZM intelligent imaging technology provides you with the next generation of high performance
Scan any bar codes on any medium
3. Megapixel sensor, which greatly enhances data acquisition flexibility
The ability to "not miss" means to be able to make a lot of convenience
5. The all-directional, full-angle barcode scan, which really means the ease of scanning.
6. Durable design ensures efficient and normal use. DS4308 can withstand the impact of falling from 6 feet / 1.83 meters to the concrete floor
Adjustable volume and frequency of the buzzer

DetailParameterDownloadVideo data

Physical parameters

Size: 16.5 cm H x 9.8 cm W x 6.7 cm D

Weight (excluding cable) : 5.7 ounces / 162 grams

Power: 5VDC + -10%, 360mA (typical RMS)

Color: light black, nova white

Supported interfaces: USB, RS232, keyboard interface, RS485 (IBM 46xx), SSL

The performance parameters

Light source: focusing mode: 617nm LED

Lighting: 660 nm LED

Imaging area: 36 ° (horizontal) x 22.5 ° (vertical)

Minimum print contrast: 20%

Rotate/tilt Angle offset perspective: + / - 360 °, + / - 65 °, + / - 65 °

Movement tolerance: up to 30 inches / 76.2 cm per second

Resolution: SR: Code 39 4 mil, UPC 60% 7.8 mil, PDF417 5mil, Datamatrix 7.5 mil; HD: Code 39 3 mil, UPC 60% 7.8 mil, PDF417 4 mil, Datamatrix 5 mil

Decoding ability

One-dimensional: UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code 128, Gs1-128, 128, Code 39, Code 39 ISBT Full ASCII, Trioptic Code 39, 32 Code, Code, Code 11, Matrix 2 of 5, 93 Interleaved 2 of 5, 2 of 5, Codabar, MSL Discrete ', Chinese 2 of 5, Gs1 Databar variants, Korean 3 of 5, ISBT Concat

2d: PDF417, MicroPDF417, Composite Codes, tlc-39, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Han Xin

Post: Australian Post, US PlANET, Royal Mail 4 State Customer, US POSTNET, KIX Code (Dutch), UK Postal, Japan Post, UPU 4 State Postal FICS (Post US4), USPS 4 State Postal (Post US3), Canadian Post (Postbar)

Using the environment

Working temperature: 32 ° F to 122 ° F / 0 ° C to 50 ° C

Storage temperature: - 40 ° F to 158 ° F/to 40 ° C to 70 ° C

Humidity: relative humidity 5% to 95%, no condensation

Fall specification: can withstand the impact of several times from the height of 6 feet / 1.83 meters to the concrete floor

Seal: IP42

Anti-light: anti-normal indoor light, up to 1600 lux; Anti-japanese light, up to 86000 lux

The attachment

Optional: smart bracket Gooseneck Intellistand

DS3408SR decoding range

Code 128, 3.0 mil, N/A

Code 39, 3.0 mil, 3.8 cm-13.7 cm

Code 39, 5.0 mil, 0 cm - 27.9 cm

PDF417, 6.6 mil, 2.8 cm-20.3 cm

UPC, 13.0 mil, 0 cm-71.1 cm

Data Matrix, 10.0 mil, 5.1 cm-22.9 cm

Code 39, 20.0 mil, 0 cm-134.6 cm

QR, 10.0 mil, 2.8 cm-21.6 cm

QR, 20.0 mil, 2.3 cm - 41.1 cm

DS3408HD decoding range

Code 128, 3.0 mil, 2.5 cm-7.6cm

Code 39, 3.0 mil, 1.3 cm-14.6 cm

Code 39, 5.0 mil, 0.0 cm-25.4 cm

Micro PDF, 4 mil, 2.5 cm-11.9 cm

PDF417, 6.6 mil, 0.5cm - 19.7cm

UPC, 13 mil, 0 cm-41.9 cm

DataMatrix, 5 mil, 3.0 cm-8.9 cm

DataMatrix, 7.5 mil, 2.5 cm - 16.5 cm

DataMatrix, 10.0 mil, 1.9 cm-20.8 cm

Code 39, 20.0 mil, 0 cm-76.2 cm

QR, 10.0 mil, 0 cm-17.8 cm

QR, 20.0 mil, 1.3 cm-27.9 cm
