Zebra DS2278 2d wireless barcode scanning gun

Brand: ZEBRA
Model: DS2278

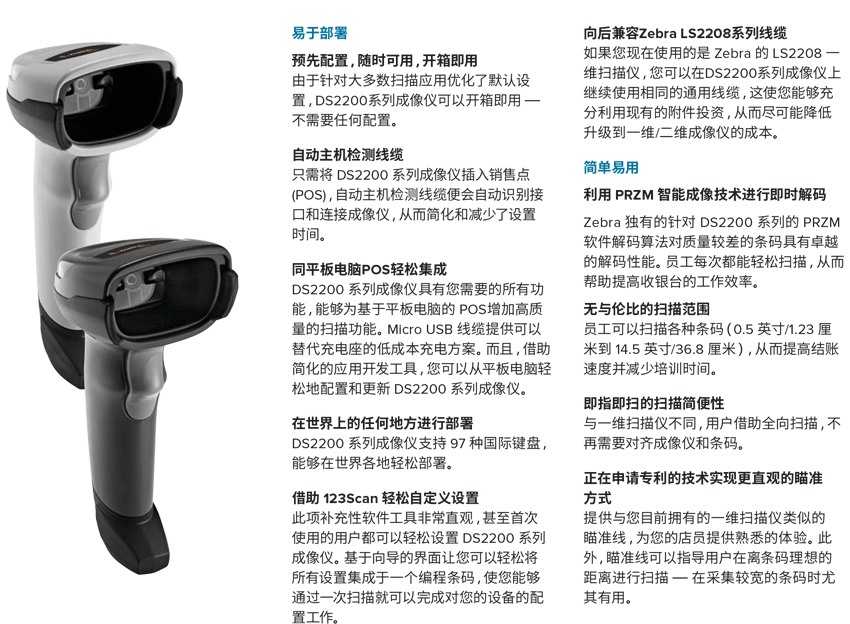

Main features of the product:
1. Pre-configured, ready to use, out of the box
2. Automatic host detection cable
Deploy anywhere in the world
4. Easy custom setting with 123Scan
Using the PRZM intelligent imaging technology to decode instantly
6. Unparalleled scanning range

DetailParameterDownloadVideo data

Physical parameters

Size: host: 17.5 cm H x 6.6 cm W x 9.9 cm D; Demonstration charging base: 7.1 cm H x 9.4 cm W x 12.2 cm D

Weight: 5.7 ounces / 161.6 grams

Input voltage range: 4.5 to 5.5 VDC host power supply; 4.5 to 5.5 VDC external power supply

Current: demonstration charging base and Micro USB cable: 500 mA (typical) standard USB; 1 1100 mA (typical) BC 1.2 USB

Color: bright white, dark color

Supported host interface: USB, RS232, keyboard port, TGCS (IBM) 46XX over RS485

Keyboard support: more than 90 international keyboards

User instruction: direct decoding indicator, successfully decoding LED, rear view LED, buzzer (adjustable tone and volume)

The performance parameters

Mobile fault-tolerant (hand-held) : up to 5 inches / 13 cm per second, 13 mil UPC

Swipe card scanning speed (hands-free) : up to 30.0 inch / 76.2 cm per second, 13 mil UPC

Light source: target mode: linear 624nm amber LED

Lighting: 645nm super red LEDs

Imaging area: 32.8 ° (horizontal) x 24.8 ° (vertical), rated

Image sensor: 640 x 480 pixels

Minimum print contrast: 25%

Rotate/tilt Angle offset perspective: + / - 360 °, + / - 65 °, + / - 65 °

Resolution: Code 39-4.0 mil; Code 128-4.0 mil; Data Matrix -6.0 mil; QR Code - 6.7 mil

Decoding ability

1 dimension: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)

2d: PDF417, Micro PDF417, Composite Codes, tlc-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes

Using the environment

Working temperature: 32 ° F to 122 ° F / 0 ° C to 50 ° C

Storage temperature: - 40 ° F to 158 ° F/to 40 ° C to 70 ° C

Humidity: relative humidity 5% to 95%, no condensation

Drop specification: can withstand multiple times from 5.0 feet / 1.5 meters to the concrete floor

Rolling specification: can withstand 250 times 1.5ft / 0.5m high

Seal: IP42

Light resistance: 0 to 107,600 Lux

Electrostatic discharge: ESD conforms to en61000-4-2, + / -15 KV air discharge, + / -8 KV direct discharge, + / -8 KV indirect discharge

Rf specifications

Bluetooth rf standard bluetooth version 4.0 and BLE: 2 classes 33 feet (10.0 meters), serial port and HID configuration files; The output power can be down-regulated from 2.0 dBm

The battery

Battery capacity/battery type: 2400 mAh lithium ion battery

The number of scans after charging: 60 scans per minute, or 60,000 at 10 scans per minute

Full charge: 100 hours

Charge time (from empty battery to full charge) :

Standard USB, 25 hours

BC1.2 USB, 6 hours

External 5V power supply, 6 hours

Micro USB, 11 hours

The attachment

Demonstration charging base, standby battery, Micro USB cable
