Zebra/Symbol LS4208 handheld laser barcode scanner one-dimensional barcode scanner

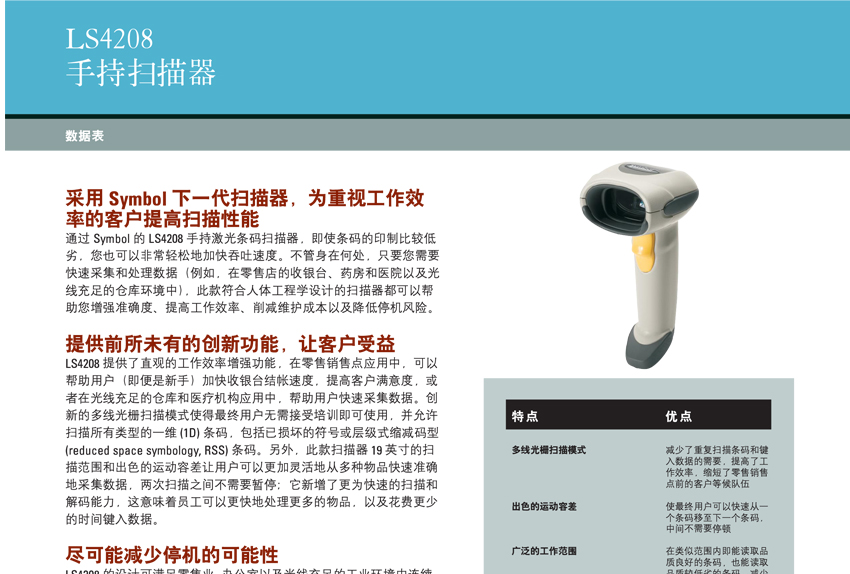

Symbol LS4208 handheld laser barcode scanner

Brand: ZEBRA/Symbol
Model: Symbol LS4208
Main features of the product:
1. The moving laser line, which moves up and down to form a grating to capture tiny, overlapping or printed barcodes supporting remote control
2. The main functions of the scanner can be managed through network remote management, facilitating the upgrading and customization of single PC board, liquid injection injection molding device, and steel glass output window
3. With excellent shock protection, it can withstand multiple 6 foot falls to the cement floor. It is not easy to rupture or scratch, and is easy to clean.

DetailParameterDownloadVideo data

Dimensions: 17cm H x 9.3 cm L x 6.8 cm w

Weight: about 6.4 ounces (181 g)

Voltage and current: 5 + / -10% VDC @140ma (standby: less than 35 mA)

Color: white or light black

Light source: 650nm laser diode

Motor frequency: 50Hz

Decoding rate: 200 times per second

35 ° rotation: + / -

Back and forth: + / - 60 °

Swinging: + / - 60 °

Print contrast: 25% minimum reflection difference

Scope of work: 5mil (code39) : 1.5 to 5.5 in (3.81 to 13.97 cm); 13mil (100% UPC/EAN) : 0 to 19in (0 to 48.25 cm); 10mil (code39) : 0 to 14in (0 to 35.56 cm); 20mil (code39) : 0 to 29in (0 to 73.66 cm)

Multi-line multi-line scanning range: 5in reading distance of about 0.5 in (1.3 cm); 10in reading distance about 1in (2.5 cm)

Operation tolerance: horizontal speed: 200in (508 cm)/second

Vertical speed: 200in (508 cm)/second

Angular velocity: 200in (508 cm)/second

Decoding ability: UPC/EAN and with supplementals, Code 39, Code 39 Full ASCII, tri-optic Code 39, RSS feed, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5 MSI, Codell, IATA, Bookland EAN, Code 32

Support interface: rs-232c (standard, Nixdorf, ICL & Fujitsu); IBM / 469 x 468 x; Keyboard simulation; USB (standard, IBM SurePOS, Macintosh); Laser/Wand emulation. In addition, synapse connectivity allows connectivity to all of these interfaces and many non-standard interfaces.

Operating temperature: 32o-122o F (0o-50o C)

Storage temperature: -40o-158o F (-40o-70o C)

Humidity: 5% to 95% (non-condensing)

Falling specification: can withstand the weight of 6 feet (1.8 - m) down to the cement floor

Light resistance: can be used in indoor and natural outdoor (direct sunlight) lighting conditions

EAS support: optional cash register electronic goods anti - theft (EAS) system function

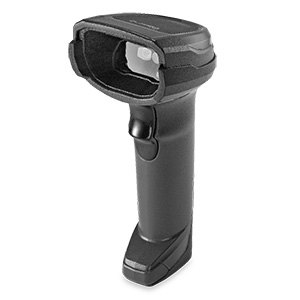

Previous：Zebra DS8108SR handheld imager
