Physical parameters
Dimensions: 18.6 cm long x 9.7 cm high x 6.9 cm wide
Weight: 224 g
Communication base interface: RS232, RS485, USB, keyboard interface

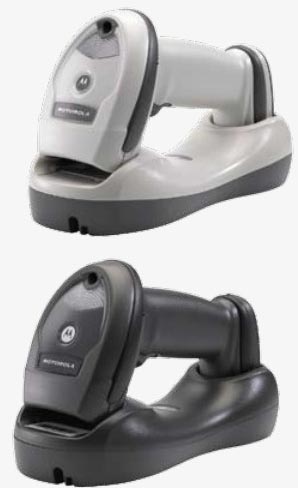

Color: black; white
Battery: "environmentally sustainable use" can replace rechargeable batteries
The performance parameters
The offset Angle tolerance: + / 65 °
The tilt Angle tolerance: + / 65 °
Rotating Angle tolerance: + / 45 °
Scanning mode: single bright line of sight
Scanning Angle: horizontal 35 °
Scan speed: 547 scans per second
Mobile tolerance: 63.5 cm/s
Source: IED Class1 equipment (617 nm) (tan)
Minimum print contrast: 15% MRD
Scan frequency after each charge: up to 57,000 times
Hours of operation: 72 hours after each charge
Barcode decoding ability
UPC, EAN, UPC, EAN with Supplementals, UCC. EAN 13, 128, JAN 8 & Code 39, 39 Full ASCII Code, Code 39 Trioptic, Code 128, 128 Full ASCII Code, Codabar (NW7), Interleaved 2 of 5, Discrete '2 of 5, 93, MSI, Code 11 Code, Code 32, Bookland EAN, IATA, UCC/EAN RSS and RSS variants, GS1
Typical decoding scope (standard work scope) :
Code39-3 mil: 12.7-17.8 cm; Code39-4 mil: 10.2-10.2 cm; Code39-5 mil: 7.6-33 cm; Code39 7.5 mil: 3.8-48.3 cm; 13mil 100% UPC - A: 2.5-78.7 cm; Code39-20 mil: 2.5-106.7 cm; 26mil 200% UPC - A: 7.6-140cm; Code39-100mil: greater than 6 m
A wireless connection
Rf: Bluetooth v2.1 Class2 rf
Data rate: 3.0 Mbit/s (2.1 Mbit/s) Bluetooth v2.1
Rf range: 100m (line-of-sight)
Using the environment
Ambient light immunity: maximum 108000lux
Working temperature: 32 ° F to 122 ° F / 0 ° C to 50 ° C
Storage temperature: - 40 ° F to 158 ° F/to 40 ° C to 70 ° C
Humidity: relative humidity 5 to 85 %, no condensation
Drop specification: at room temperature can withstand the impact of falling from 1.5m height to 100 times, and can withstand the impact from 1.8m height to concrete floor
Environmental seal: the sealing shell with gasket can prevent dust and can be sprayed and cleaned
Warranty: three years
