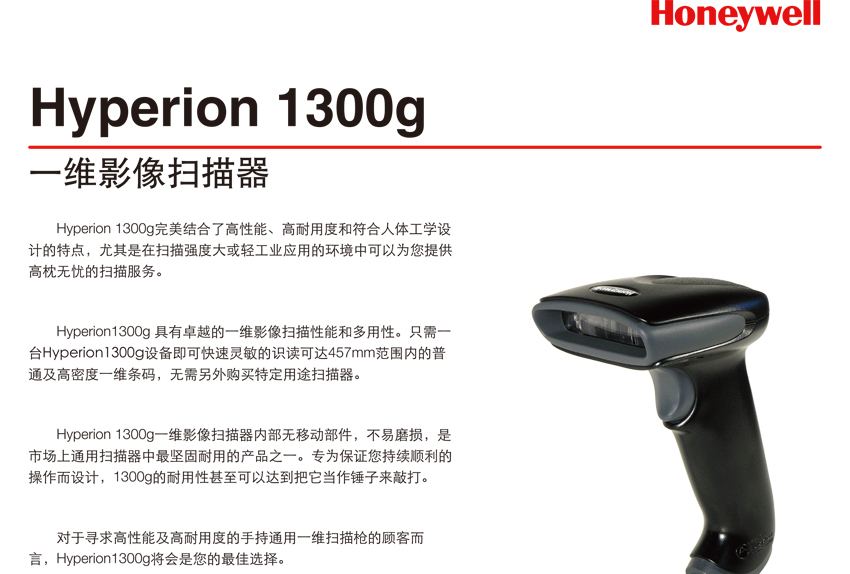

Hyperion 1300g one-dimensional image scanner
Brand: Honeywell
Model: Hyperion 1300g

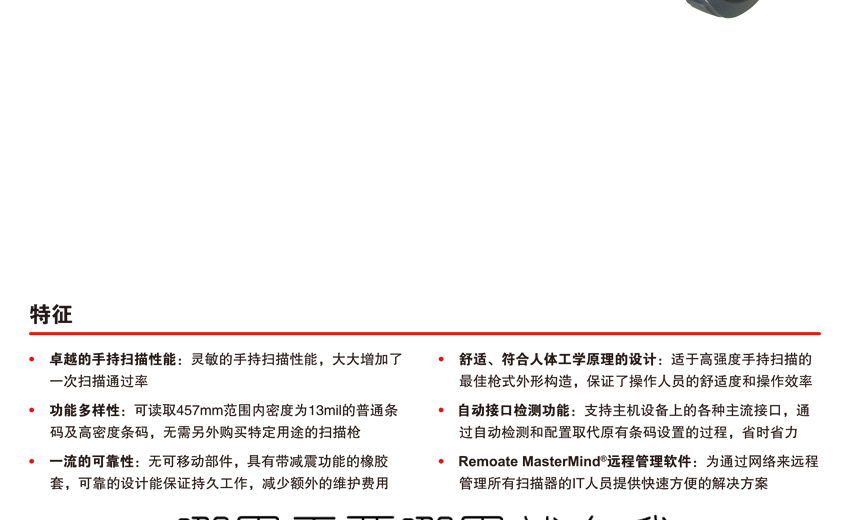

Main features of the product:
1. Excellent handheld scanning performance: sensitive handheld scanning performance, greatly increasing the scanning pass rate
Versatility: the ability to read a standard bar code with a density of 13mil in the 457mm range and a high density bar code without the need for additional scanning guns for specific USES
3. First-class reliability: no moving parts, rubber covers with shock absorber, reliable design can guarantee lasting work and reduce extra maintenance costs
4. Comfortable and ergonomic design: suitable for high strength handheld scanning, which ensures the comfort and operation efficiency of the operator
5. Automatic interface detection function: support the main interface of host equipment, replace the original barcode setting process with automatic detection and configuration, save time and effort
Remote joint ® : Remote management software through the network to Remote management all the scanner for the IT staff to provide convenient and fast solution
DetailParameterDownloadVideo data
Honeywell 1300g detail parameters:
Physical parameter
Size: host: 15 cm high, X 11.2 cm long, X 7.9 cm wide
Weight (excluding cable): 160 grams
performance parameter
Scan mode: single line
System interface: USB, RS232, keyboard port, RS485
Scanning speed: 270 times per second
Recognizable print contrast: minimum 20% reflection difference
Deviation angle: +65 degrees
Inclination angle: +65 degrees
Movement tolerance: 20 inches / sec
The decoding ability: UPC.EAN, Supplementals, UPC.EAN with UCC.EAN 128, JAN 8 & 13, Code 39, Code 39 Full ASCII, Code 39 Trioptic, Code 128, Code 128, Full ASCII Codabar (NW7), Interleaved 2 of 5 Discrete 2, of 5, Code 93, MSI, Code 11, Code 32, Bookland EAN, IATA, UCC/EAN RSS and RSS variants
Using environment
Operating temperature: host: 0 degrees C to 50 degrees C
Storage temperature: host: -40 degrees C to 60 degrees C
Humidity: relative humidity 0 to 95%, no condensation
Earthquake resistance: host: 1.5m can withstand repeated fall (to the concrete floor)
Illumination rating: 0 to 70000lux
Industrial grade: IP41
Electrical Parameters
Input voltage: 5VDC
Operating power: 200mA, 5VDC
Standby power: 125mA, 5VDC
Honeywell 1300g decoding area:
Bar width depth of field
5.0mil 50-200mm
7.5mil 40mm-300mm
10mil 30mm-380mm
13mil 10mm-460mm
20MIL 30mm-660mm
