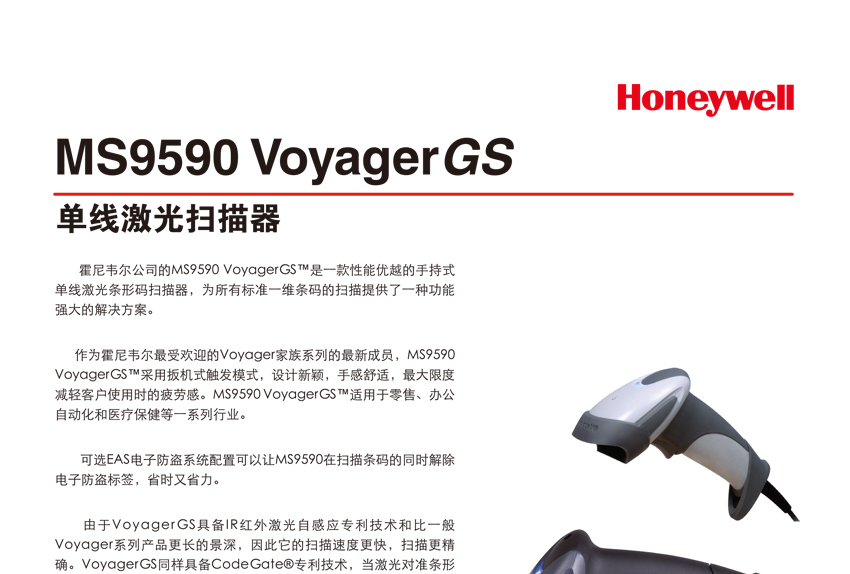

VoyagerGS 9590 single-line laser scanner
Brand: Honeywell
Model: VoyagerGS 9590

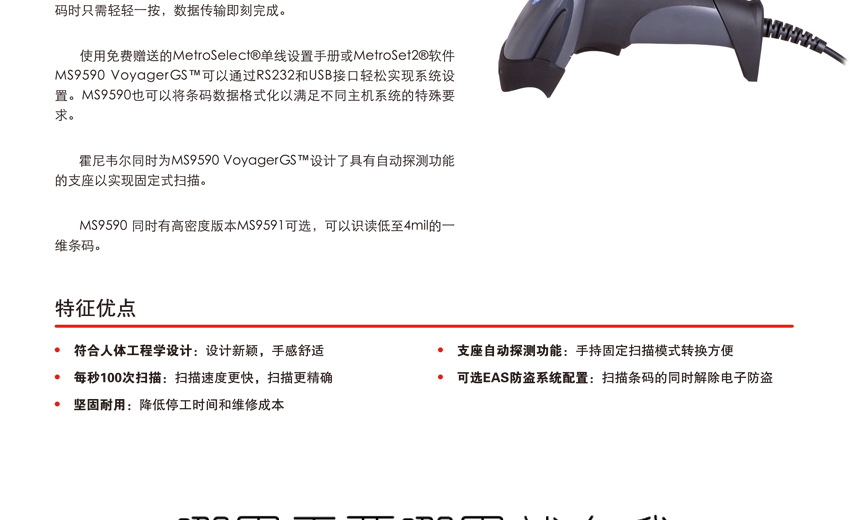

Main features of the product:
Ergonomic design: new design, comfortable hand feel
100 scans per second: faster scanning, more accurate scanning
Strong and durable: reduces downtime and maintenance costs
Automatic detection function of support: easy to convert with fixed scanning mode
Optional EAS anti-theft system configuration: scanning bar code while removing the electronic anti-theft label
DetailParameterDownloadVideo data
Honeywell MS9590/MS9591 detail parameters:
Physical parameter
Size: host: 16 cm high, x 6.5 cm long, X 8.2 cm wide
Weight (excluding cable): 150 grams
performance parameter
Light source: visible laser diode laser, wavelength 650nm + 10nm
Buzzer: 7 tones or Silent Sounds
System interface: USB, RS232, keyboard port, RS485
Scan type: single line
Scanning speed: 100 times per second
Scanning angle: level 44
Recognizable print contrast: minimum 35% reflection difference
The angle of rotation, elevation and skewness are 42, 68, and 52 degrees
The decoding ability: UPC.EAN, Supplementals, UPC.EAN with UCC.EAN 128, JAN 8 & 13, Code 39, Code 39 Full ASCII, Code 39 Trioptic, Code 128, Code 128, Full ASCII Codabar (NW7), Interleaved 2 of 5 Discrete 2, of 5, Code 93, MSI, Code 11, Code 32, Bookland EAN, IATA, UCC/EAN RSS and RSS variants
Using environment
Operating temperature: host: 0 degrees C to 40 degrees C
Storage temperature: host: -40 degrees C to 60 degrees C
Humidity: relative humidity 5% to 95%, no condensation
Earthquake resistance: host: 1.5m can withstand repeated fall (to the concrete floor)
Illumination rating: 0 to 4842lux
Seal level: IP31
Electrical Parameters
Input voltage: 5VDC + 0.25V
Operating power: 675mW (125mA, 5VDC)
Standby power: 375W (0.75A, 5VDC)
Laser rating: Class1
MS9590/MS9591 decoding area:
Bar code width MS9590 MS9591
Code39-4mil can't read 25mm-45mm
Code39-5.2mil 83mm-108mm 22mm-55mm
Code39-7.5mil 38mm-178mm; 20mm-64mm
Code39-10.4mil 32mm-254mm 0mm-72mm
Code39-13mil 0mm-305mm 0mm-100mm
Code39-26mil 12mm-445mm not tested
