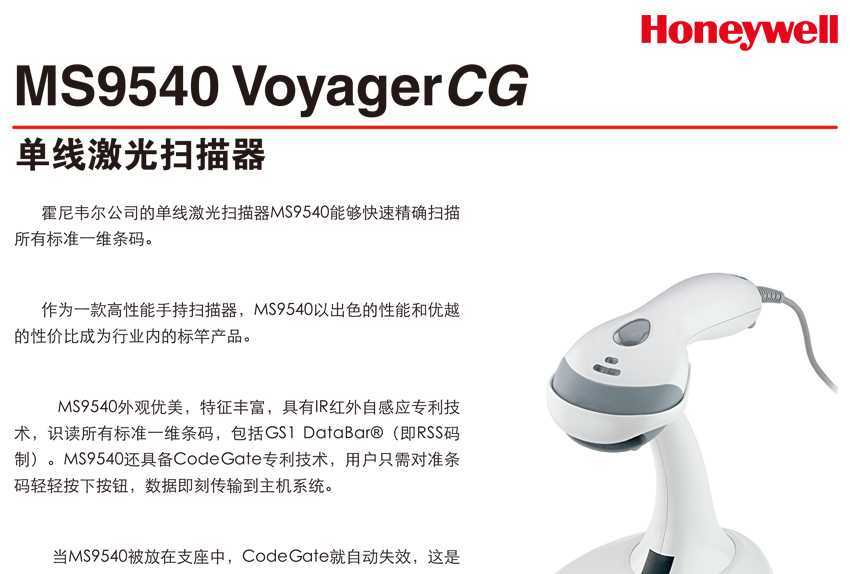

Voyager 95X0 single-line laser scanner
Brand: Honeywell
Model: Voyager 95X0

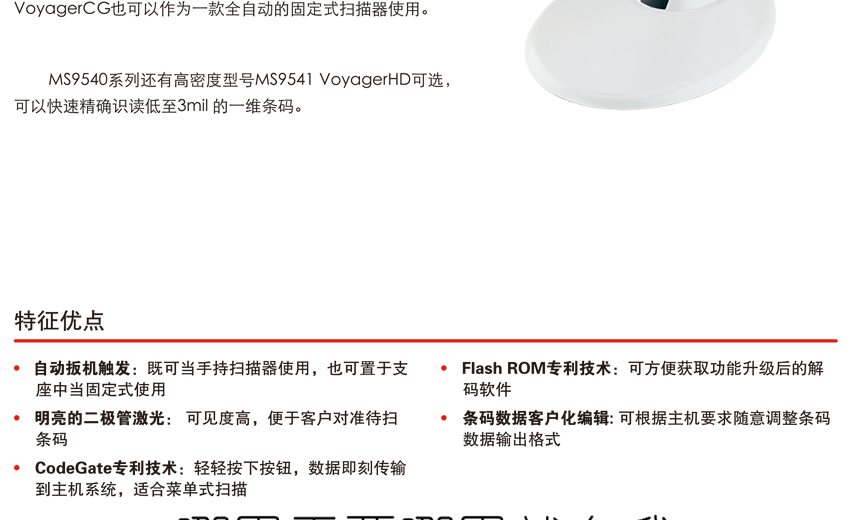

Main features of the product:
1. Both IR infrared self-induction and CodeGate: eliminate the extra time spent on scanning alignment, and make it more efficient and efficient
2. Automatic detection of support coordinates: portable scanning or stationary scanning
3. Flash ROM software upgrade: it can easily acquire the decoding software after the function upgrade
4. Barcode data customization editor: can adjust barcode data output format according to the requirements of the host
5. Support all common interfaces: compatible with various brand hosts on the market
DetailParameterDownloadVideo data
Honeywell MS9540/MS9541 detail parameters:
Physical parameter
Size: host: 19.8 cm high, X 7.8 cm long, X 5.6 cm wide
Weight (excluding cable): 149 grams
performance parameter
Light source: visible laser diode laser, wavelength 650nm + 10nm
Buzzer: 7 tones or Silent Sounds
Indicator light: Green = laser light, ready to scan; red = decoded successfully; yellow = automatic scanning
System interface: USB, RS232, keyboard port, RS485
Scan parameter
Scan type: single line
Scanning speed: 72 times per second
Scanning angle: level 50
Recognizable print contrast: minimum 35% reflection difference
The angle of rotation, elevation and skewness are 42, 68, and 52 degrees
The decoding ability: UPC.EAN, Supplementals, UPC.EAN with UCC.EAN 128, JAN 8 & 13, Code 39, Code 39 Full ASCII, Code 39 Trioptic, Code 128, Code 128, Full ASCII Codabar (NW7), Interleaved 2 of 5 Discrete 2, of 5, Code 93, MSI, Code 11, Code 32, Bookland EAN, IATA, UCC/EAN RSS and RSS variants
Using environment
Operating temperature: host: 0 degrees C to 40 degrees C
Storage temperature: host: -40 degrees C to 60 degrees C
Humidity: relative humidity 5% to 95%, no condensation
Earthquake resistance: host: 1.5m can withstand repeated fall (to the concrete floor)
Illumination rating: 0 to 4842lux
Dust proof: sealed to protect against airborne dust particles
Electrical Parameters
Input voltage: 5VDC + 0.25V
Operating power: 825mW (165mA, 5VDC)
Standby power: 600mW (120mA, 5VDC)
Laser rating: Class1
MS9540/MS9541 decoding area:
Bar code width MS9540 MS9541
Code39-4mil - 6mm-38mm
Code39-5.2mil 13mm-51mm -
Code39-6.8mil - 0mm-76mm
Code39-7.5mil 0mm-127mm; -
Code39-10.4mil 0mm-165mm 0mm-108mm
Code39-13mil 0mm-203mm 0mm-140mm
Code39-21mil 25mm-254mm -
