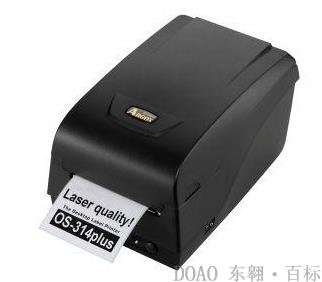

S-314plus barcode printer technical parameters
Printing mode heat sensitive/heat transfer
Resolution (resolution) 300dpi
Print width Max4.1 (104mm)
Print speed up to 4ips
Print length 50 inches (1270 mm)
Memory 8MB SDRAM 4MB Flash ROM
CPU 32-bit RISC microprocessors
Communication interface and serial port of USB
The label sensor occupies the left reflex
The operating panel LED indicator lights x2, press new x1
Type 5 international standard glyph (1.25 mm ~ 6mm)
All fonts can be enlarged to 24x 24
4 printing directions 0 ~ 270 rotation
The Windows font can be downloaded from the software
One dimensional barcode PPLA: Code 39, UPC - A, UPC - E, Code 128 subset, A/B/C EAN 13, EAN - 8, HBIC, Codabar, Plessey, UPC2, UPC5, Code 93, Postnet, UCC/EAN - 128, UCC/EAN - 128 - K MART, UCC/EAN - 128 Random Weight, Telepen, FIM,
Interleave 2 of 5 (Standard/with 10 checksum/modulo with human readable check digit/with 10 checksum modulo & shipping bearer bars), GS1 Data bar (RSS)
PPLB: Code 39 Std. & Extended, UPC - A, UPC - E, Matrx 2 of 5, UPC - Interleaved 2 of 5, Code 39 with the check sum digit, Code 93, EAN 13, EAN - 8 (Standard, 2/5 digit add - on), Codabar, Postnet, Code128 subset, A/B/C Code 128 UCC (shipping container Code), Code 128 auto, UCC/EAN Code 128 (GS1-128),
Interleave 2 of 5, Interleaved 2 of 5 with the check sum, Interleaved 2 of 5 with human readable check digit, German Postcode, Matrix 2 of 5, UPC Interleaved 2 of 5, EAN 13 digit add - on 2/5, 2/5 digit UPCA add - on, UPCE 2/5 digit add - on, GS1 Data bar (RSS)
2d barcode PPLA/PPLB: Maxicode, PDF - 417, Data Matrix (ECC200 only), QR - Code, Composite codes
Graphic PPLA/PPLB: PCX, BMP, IMG, HEX, GDI, Binary raster (PPLB only)
Weight 2.0 kilogram
The length is 285 mm by 158mm by 155mm
Instruction set PPLA, PPLB
software
Windows driver (Windows 7 / Win 8 / Win 10/vista/XP)
Label making software - BarTender
The paper carrier is continuous or spaced/rolled or accordion/hot, copper plate, board/tag, label and ticket... Etc.
Maximum width: 10.8 cm, minimum width: 2.54 cm
Thickness: 0.0635 ~ 0.254 mm
Maximum outer diameter: 4.3 "(10.9 cm) shaft size: 12.7 mm inside diameter
The type of carbon belt: waxy, semi-wax and semi-resins, whole resin (outer carbon belt)
Carbon band width: 1 inch to 4 inches (2.5 to 11cm)
Carbon diameter: the maximum diameter of 1.45 (3.7 cm)
Carbon length: 92m
Shaft size: the inner diameter of the shaft is 0.5 (1.3 cm) including the slot
Power switch power supply unit
Input: 100V ~ 240V, 1.8 A, 50 ~ 60Hz
Output: 24VDC, 2.5 A
Installation/standard CE, FCC, cTUVus, CCC, ROHS
Operating temperature of 40 f to 100 f (4 ℃ ~ 38 ℃); 10% ~ 90% frost-free, store environment: - 20 ℃ ~ - 50 ℃
Optional accessories cutter, paper holder, memory card, clock card, 4M Asian type card (in complex, simple, Korean and Japanese)
