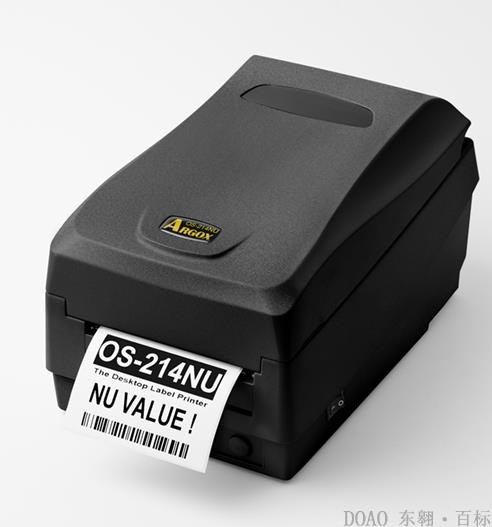

Os-214nu bar code printer technical parameters
Printing mode heat sensitive/heat transfer
Resolution 203dpi (8 point/mm)
Print width Max4.1 (104mm)
Print speed up to 4ips
Print length 100 inches (2,540mm)
Memory 8 MB of DRAM memory (5 MB available user) 8 MB Flash ROM Flash memory (6 MB available user)
CPU 32-bit microprocessors
The labeling sensor is a left-reflection type, a carbon sensor
Operation panel 2 LED indicator lamp, 1 button
Interface of communication interface, serial port, USB
Font 5 kinds of international standard glyph (1.25 mm to 6 mm), up to 24 x 24, four direction 0 ° ~ 270 °, can download the Windows font by software
One dimensional barcode PPLA: Code39 Code93, Code128 / subset of A, B and C, Codabar, Interleaved 2 of 5, UPC A/E / 2 and 5 add - on, EAN 13/8, UCC/EAN - 128, UCC/EAN 128 random weight, Postnet, Plessey, HIBC, Telepen, FIM
PPLB: Code39 Code93, Code128 / subset of A, B and C, Codabar, Interleaved2 of 5, UPC A/E / 2 and 5 add - on, EAN 13/8, UCC/EAN - 128, Postnet,
Matrix 2 of 5, Code minus 128UCC
Two dimensional barcode
The PPLA/PPLB/PPLZ: MaxiCode, PDF417, Data Matrix (ECC200), QR code, Composite codes, Aztec
PPLA/PPLZ: Micro PDF417
graphics
PPLA/PPLB: PCX, BMP, IMG, HEX, GDI, Binary raster (PPLB)
PPLZ GRF, Hex and GDI
Instruction set PPLA/PPLB/PPLZ
Application software
Windows driver (Windows 7 / Win 8 / Win 10/vista/XP)
Label making software - BarTender
Paper type paper roll type, label type (continuous paper, spacing paper, folded paper, ticket, hang... etc.)
Paper specifications
Maximum width: 11 cm
Minimum width: 2.54 cm
Paper thickness: 0.0635 ~ 0.254 cm
Maximum outer diameter: 12.7 cm / 10.9 cm
Diameter: 1.27 cm / 2.54 cm
Carbon with specifications
Applicable type: waxy, semi-wax semi-resin, full resin (outer carbon belt)
Carbon band width: 2.5 to 10.2 cm
Maximum diameter: 3.7 cm
Maximum length: 92 m
Inside diameter: 1.3 cm (notch with notch)
Weight 2.0 kilogram
The size is 278 mm by 186mm by 153mm
Power switch power supply unit
Input: 100V ~ 240V, 50 ~ 60Hz, 1.8 A
Output: 24VDC, 2.5 A
Install/standard
CE, FCC, cTUVus, CCC, RoHS
Operating environment: operating temperature of 4 ℃ ~ 38 ℃, relative humidity 10% ~ 90%), storage environment: - 20 ℃ ~ 50 degrees Celsius
Optional accessory screw, external paper holder, timer RTC card
