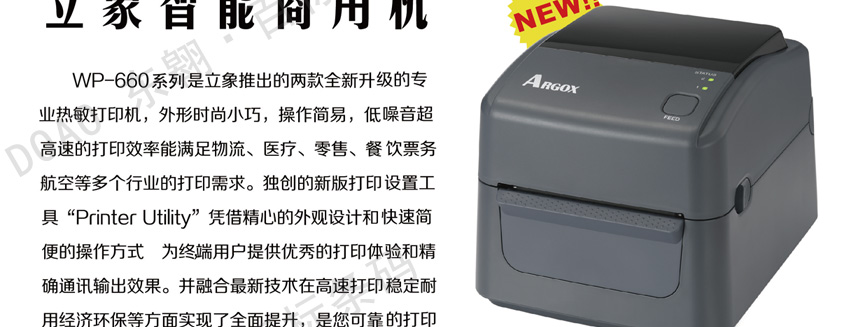

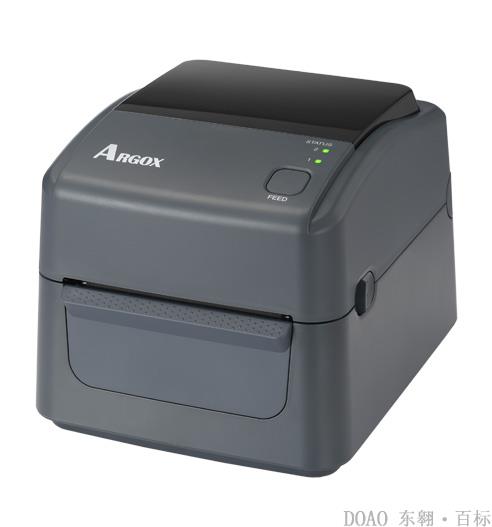

Technical parameters: wp-660 WLP - 660
Special machine for printing method
Resolution 203 dpi
Up to 6ips up to 7ips
Maximum printing length can reach up to 999 mm, minimum 8 mm
Maximum print width 4.25 "(108 mm)
Memory 16MB Flash ROM, 32MB SD RAM
Expand storage USB typeA port, can be external USB, capacity can reach 16GB not support
CPU type 32-bit RISC microprocessors
Label sense method
The reflector, the penetration sensor,
The print head lifts the sensor
The reflective sensor, the print head lift sensor
Operation interface 2 LED indicator lamp, 1 button
Communication interface USB typeB port, network port (wi-fi, bluetooth, serial port, and optional) USB Type B port
The font
PPLB/PPLZ builds fonts and soft fonts
Wp-660 PPLZ supports download Windows compatible smooth fonts
A dimensional barcode
PPLB: Code 39 Std. & Extended, UPC-A, UPC-E, UPC-Interleaved 2 of 5, Code 39 with check sum digit, Code 93, EAN-13, EAN-8 (Standard, 2 /5digit add-on), Codabar, Postnet, Code128 subset A/B/C, Code128 UCC (shipping container code), Code 128 auto, UCC/EAN code 128 (GS1-128), Interleave 2 of 5, Interleaved 2 of 5 with check sum, Interleaved 2 of 5 with human readable check digit, German Postcode, Matrix 2 of 5, UPC Interleaved 2 of 5, EAN-13 2/5 digit add-on, UPCA 2/5 digit add-on, UPCE 2/5 digitadd-on, GS1 Data bar (RSS)
PPLZ: Code39, UPC - A, UPC - E, Postnet, Code128 subset, A/B/C Interleave 2 of 5, Interleaved 2 of 5 with the check sum, Interleaved 2 of 5 with human readable check digit, Code 93, Code 39 with the check sum digit, MSI, EAN - 8, Codabar, Code 11, EAN 13, Plessey, GS1 Data bar (RSS), 2 of 5, Industrial Standard 2 of 5, Logmars
Two dimensional barcode
PPLB: MaxiCode, PDF417, Data Matrix (ECC 200 only), QR code, Composite Codes, Aztec Barcode
PPLZ: MaxiCode, PDF417, Data Matrix (ECC 200 only), QR code, Composite Codes, Aztec Barcode, Micro PDF417
graphics
PPLB: PCX, BMP, Binary raster, GDI
PPLZ: GRF, Hex, GDI
Instruction set
WP: PPLA/PPLB/PPLZ
WLP: PPLB
Application software
Windows driver (Windows XP/Vista/Win 7 / Win 8),
Bar code editing software -- BarTender
Software Tool Printer Tool
Paper type heat sensitive paper materials can be applied to paper roll type label spacing paper, continuous paper or folding paper, notes, listed etc
Paper specifications
The diameter of the paper roll is maximum: 127 mm
Axis size: 25.4 mm or 38mm
The maximum support of the axis is 176.2 mm
Use 203.2mm paper roll
Weighs 1.76 kilograms
Size W 183.8 mm x H 166.7 mm x D 226.2 mm
Power switch type power source input: 100 ~ 240V ~ 1.8 A, 50-60hz output: 24VDC, 2.5 A
Installation standard CE, FCC, cTUVus, CCC, RoHS
Operating temperature operating temperature 5 ℃ to 40 ℃, 25% ~ 85% of condensation, storage temperature: - 20 ~ 60 ℃
Optional accessories for cutting knife, peeling paper and hanging paper holder
Cutting knife and hanging paper holder
