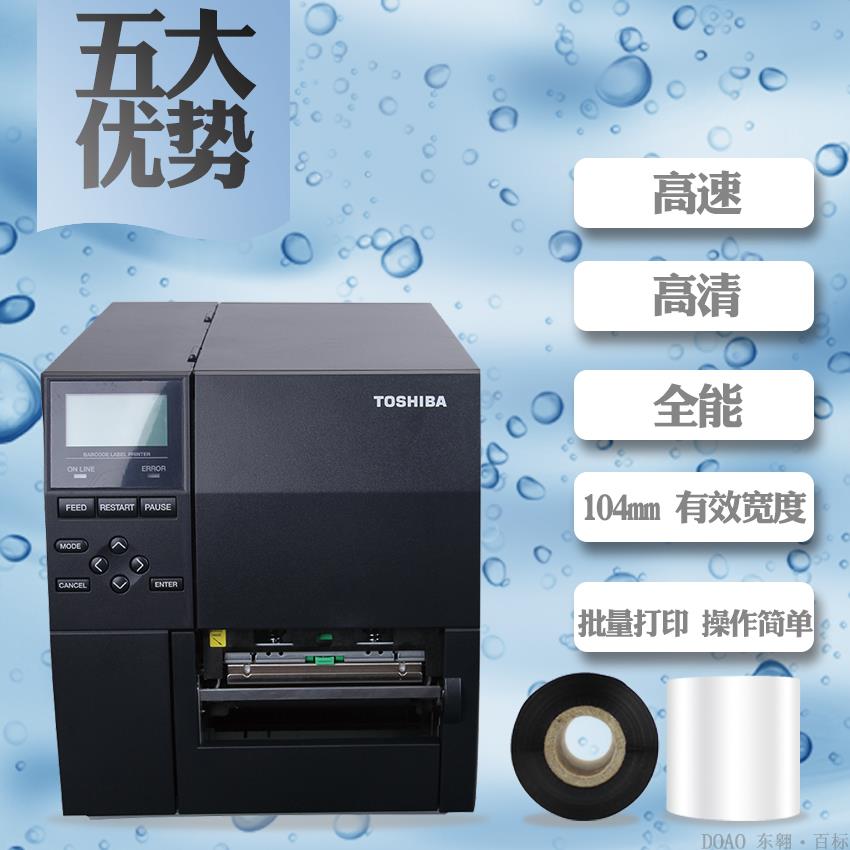

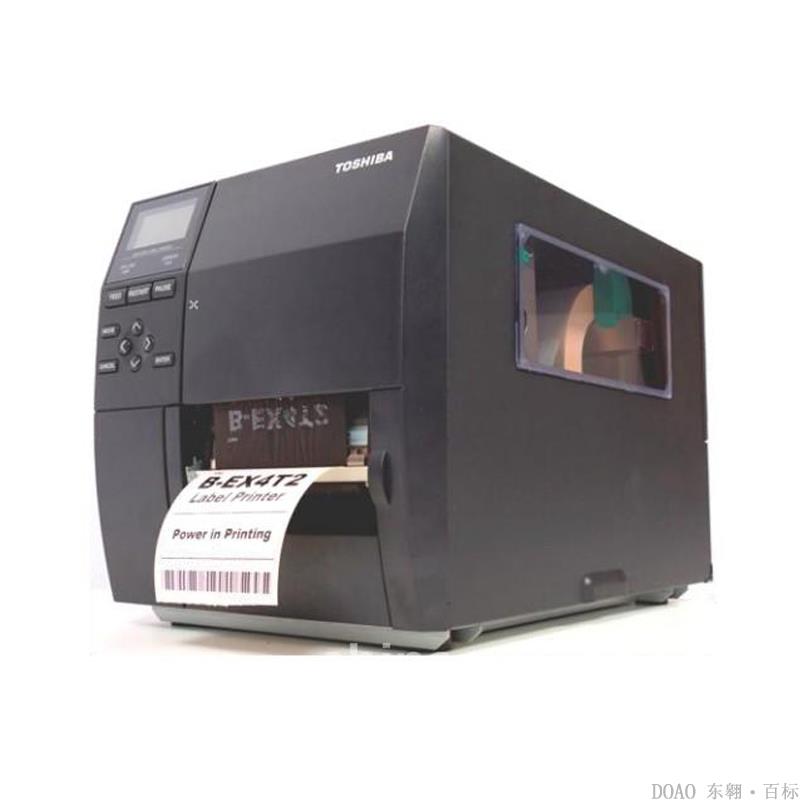

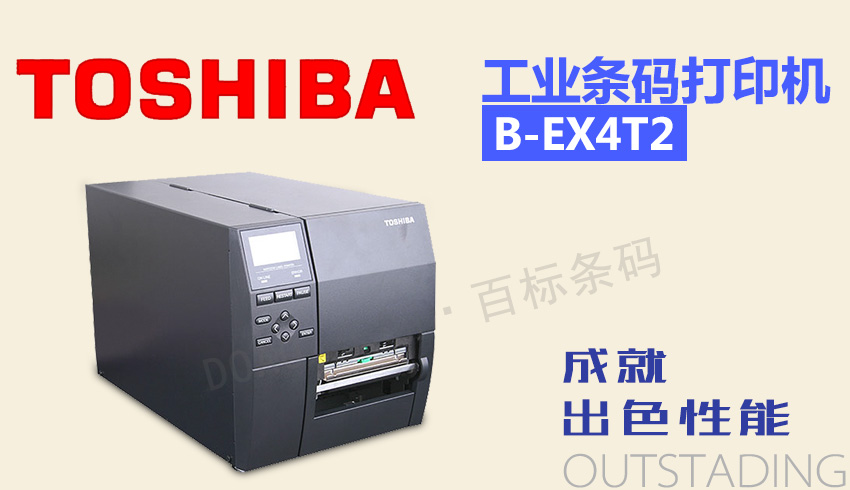

Toshiba b-ex4t2 bar code printer

Brand: TOSHIBA
Model: B - EX4T2

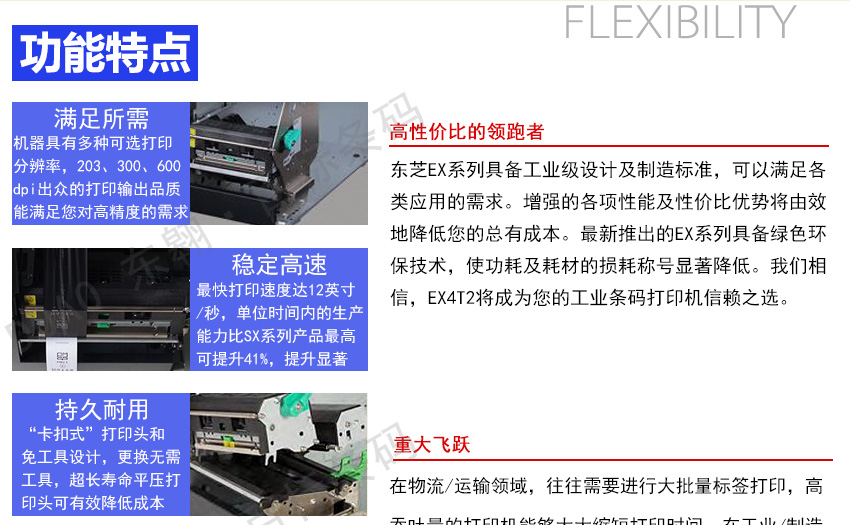

Product features:
Superior quality, satisfy the need

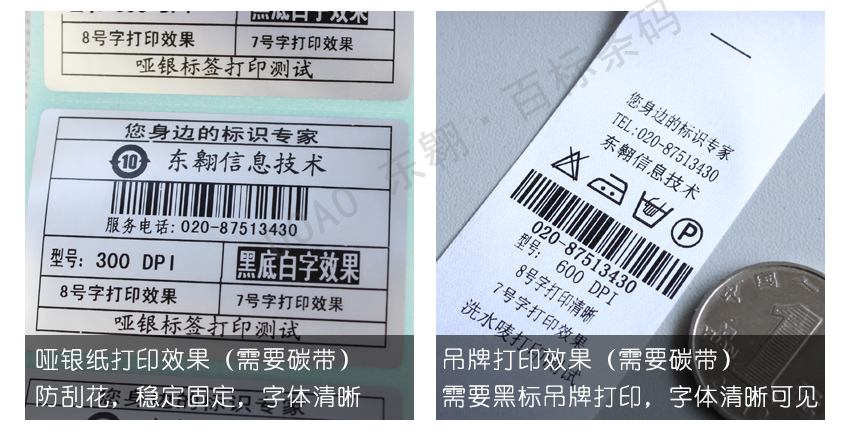

The b-ex4t2 bar code printer has a variety of optional print resolution, 203dpi, 300dpi and 600dpi, which can satisfy your requirement for high precision printing.
Fast and flexible, stable speed
Printing speed can be up to 12 inches per second, per unit time production capacity than the SX series products up to 41% increased, to significantly improve the print total throughput.
The idea of human nature is durable and durable
B - EX4T2 series of print head and roller components in the tradition of B - EX4T1 unique advantages, namely the "card" button to print the roller head and free tools, can be replaced by the user themselves without using any tools, which reduces the hardware maintenance costs. At the same time, the super long life flat pressure printing head can effectively reduce the operating cost of the user.

DetailParameterDownloadVideo data

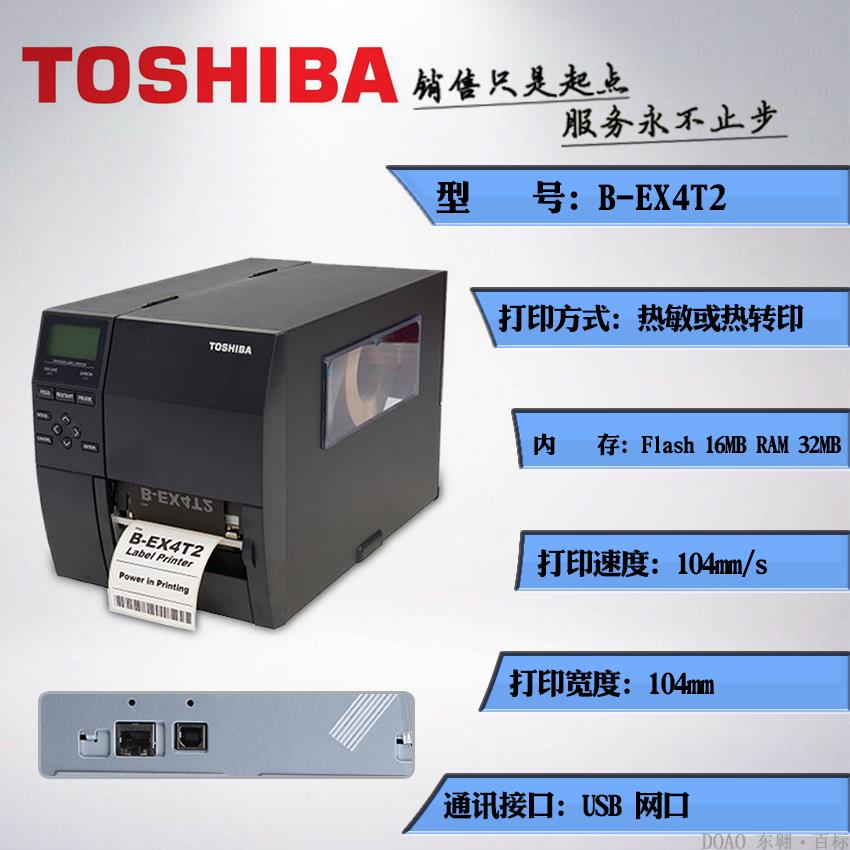

specifications

Model B - EX4T2 - gs12-cn - R (203dpi), b-ex4t2 - ts12-cn - R (300dpi), b-ex4t2 - hs12-cn - R (600dpi)

Printing: heat transfer/direct heat

Print head: flat press

Resolution: b-ex4t2 - gs12-cn - R (203dpi), b-ex4t2 - ts12-cn - R (300dpi), b-ex4t2 -hs12-cn - R (600dpi)

Printing speed: up to 12 inches per second (GS/TS); Maximum 6 inches per second (HS)

Print width (maximum) : 104 mm

Print length (maximum) : 1500mm

Memory: 32MB SDRAM / 16MB FLASH ROM

Interface: standard: USB, LAN; Optional: RS232C, Parallel, WLAN, extend I/O

medium

Paper length: 8 mm (0.32 inches) - 1, 500 mm (59 inches)

Paper width: 25mm (0.98in) -120mm (4.72 inches)

Maximum volume diameter: 203mm (8 inches)

Core diameter: 76mm (3 inches)

Media thickness: 0.13mm (0.0051 in) - 0.17mm (0.0067 inches); Sign: 0.08 mm (0.0031 inch) - 0.17 mm (0.0067 inch)

Carbon belt

Standard length: (MAX) 600 meters (1,968.5 inches)

Carbon band width: 68 mm (2.68 inches) - 112 mm (4.41 inches)

Carbon belt: 90mm (3.54 in)

Inner diameter: 25.7 mm (1.02 in)

Carbon belt setting: carbon strip ink is coiled outward

Physical specifications

Width: 278mm (10.9 inches)

Height: 310mm (12.2 inches)

Depth: 460mm (18.11 inches)

Weight: 17 kg (36.7 LBS)

The choose and buy a

The cutter module, the stripping module (including the built-in recoil), the expansion I/O card, the rs-232c serial port card, and the mouth card, the real time clock and the USB host card

Bar code category

One dimensional type: UPC/EAN/JAN, Code39, Code93, Code128, EAN128, NW7, Industrial 2 of 5, MSI, ITF, Postnet, RM4SCC, kix-code, Customer barcode, GS1 Databar

QR code: Data Matrix, PDF417, Maxicode, QR code, Micro PDF417

The font

Bitmap: 21 types (including simplified Chinese), Kanji: 6 types (External Memory), Outline: 7 types, Writable characters: 132 types, Optional TTF: 20 types

Working parameters

Working temperature: 41 ° F (5 ° C to 104 ° F (40 ° C)

Storage temperature: - 40 ° F (40 ° C) to 104 ° F (60 ° C)

Working humidity: 25-85% (no condensation)

Humidity: 10-90% (no condensation)

Electrical parameters: 100-240 VAC, 50-60 Hz
