specifications
models

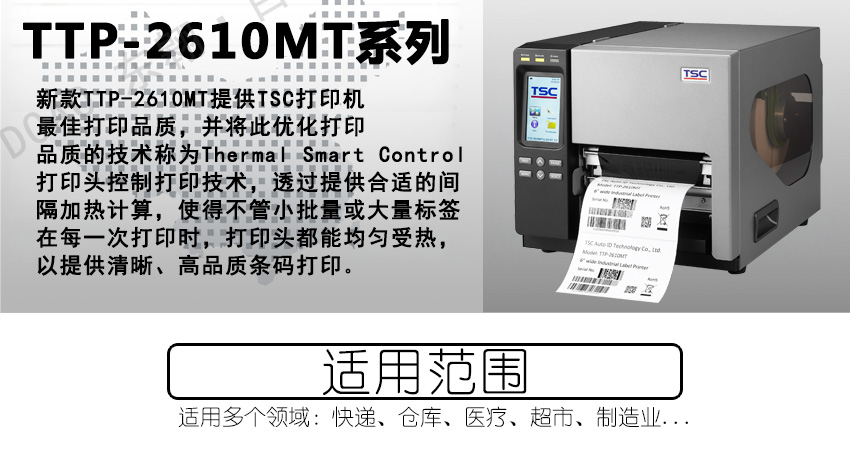

TTP - 2610 mt
TTP - 368 mt
The resolution of the
8 points per millimeter (203 DPI)
12 points per millimeter (300 DPI)
Print mode
Thermal/heat transfer
Maximum printing speed
305mm (12 ")/SEC
254 mm (10 ")/SEC
Maximum print width
168 mm (6.61)
168 mm (6.61)
Maximum print length
14,732 millimeters (580 ")
6, 604 millimeters (260 ")
chassis
Main structure: aluminum alloy casting, metal case, transparent window design
The volume size
355 mm (wide) x 337 mm (high) x 520 mm (long)
13.98 "(wide) x 13.27" (high) x, 20.47 "(long)
The weight of the
23kg (50.71 pounds)
The maximum size of internal paper roll
208.3 mm (8.2 ") outer diameter
Carbon belt
450 meters, maximum 8mm outer diameter, 1 "carbon strip scrollbars (outer volume/inner volume carbon)
Carbon belt width
50.8 mm ~ 178 mm (2 "~ 7")
Central processing unit (CPU)
32-bit efficient processors
memory
• 512 MB Flash memory
• 256 MB SDRAM
The SD card memory expansion slot can be extended to 32 GB
Communication interface
• Parallel port (Parallel)
• serial port (rs-232)
• USB 2.0
• built-in Ethernet servers
• USB host, which supports single machine operating keyboard and bar code scanner
• GPIO (optional)
• bluetooth (customer selection)
• 802.11b/g/n wireless network transmission (customer selection)
The power supply specifications
The built-in voltage switches the power supply
• exchange input: AC 100-240v, 3.0 A, 50-60hz
• ac output: DC 24V, 8.33a, 200W
Operation panel
16 bits color screen, display screen 480 x 272, and backlight display, touch panel
Operation switch, button
A power switch and six action buttons (Menu, Pause, Feed, Up, Down, Select)
The sensor
• paper spacing sensor (penetration, position adjustable)
• black line marker sensor (reflective, adjustable position)
• the carbon belt runs out of sensors and carbon ribbon speed sensors
• raise the sensor in the print head
Date/time generator
standard
Built-in fonts
• eight bitmap fonts
• a Monotype ® CG Triumvirate Bold Condensed vector fonts and True Type Font Type generator
• use software to download Windows fonts
Bar code
• one-dimensional bar code
Code 39, the Code 93, 128 ucc Code, Code 128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN - 8, EAN 13, EAN - 128, UPC - A, UPC - E, EAN and UPC 2 (5) who add - on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11
• 2d barcode
Pdf-417, Maxicode, DataMatrix, QR code, Aztec
Font and bar code rotation
0 ° and 90 °, 180 °, 270 °
Instruction set
Tspl-eztm (compatible with EPL, ZPL, ZPL II)
The paper type
Continuous paper, spaced paper, perforated paper, folded paper, black label (outer volume)
The paper width
50.8 ~ 172.7 mm (2 "~ 6.8")
The thickness of the paper
0.06 ~ 0.254 mm (2.36 ~ 10 mille)
Size of paper scrolls
76.2 mm (3)
The length of the label
10 ~ 14,732 mm (0.39 "~ 580")
10 ~ 6,604 mm (0.39 ~ 260)
Environmental conditions
Operating environment: 5 ~ 40 ° C, humidity (condensation) 25 ~ 85%
Storage environment: - 40 ~ 60 ° C, humidity (condensation) 10 ~ 90%
Safety certification
FCC Class A, CE Class A, CCC
Environment specification
Accord with RoHS, WEEE
accessories
Windows volume editing software, driver, and operation manual
• quick installation guide
• USB transmission line
• the power cord
• carbon recycled paper cartridge
The factory equipped with
• the GPIO interface module
Dealer selection
• peel off the module
• heavy use of cutter (complete cut)
Customer optional
Bluetooth wireless transmission module (serial port interface)
• 802.11b/g/n wireless network module (serial port interface)
• single machine operating keyboard (KP - 200 PLUS, ku-007 PLUS)
