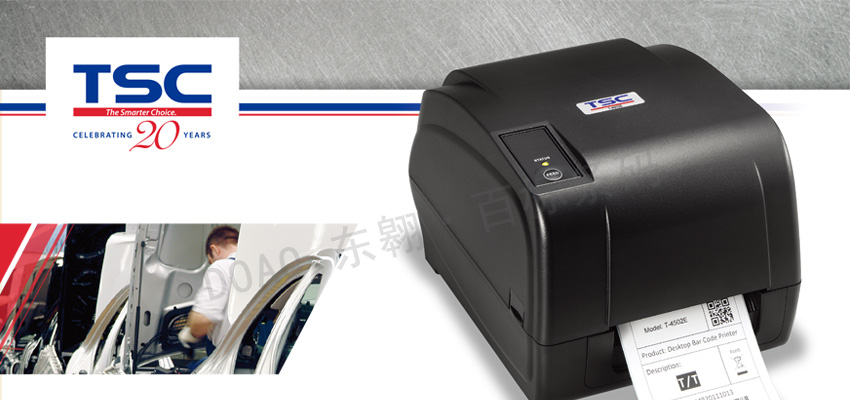

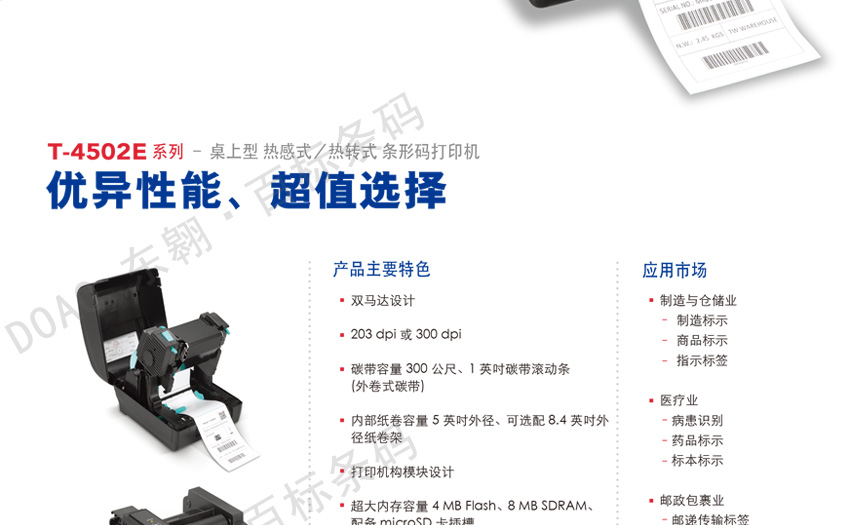

The product name
T - 4503 - e - 4502 - e/T
Print pattern
Heat transfer/heat inductance
resolution
203 DPI / 203 DPI
Print speed
127mm (5 ")/second, 102mm (4 ")/second
Maximum print width
108mm (4.25 "), 104mm (4.09)
Maximum print length
2, 794 mm (110 "), 1, 016 mm (40)
Central processing unit (CPU)
32-bit efficient processors
memory
• 4 MB Flash memory
• 8 MB SDRAM
• the microSD card memory expansion slot can be extended to 4 GB
The sensor
• paper spacing sensor (penetration, position adjustable)
• black line marker sensor (reflective, adjustable position)
• the carbon band runs out of sensors
• raise the sensor in the print head
The shell
ABS plastic
Operation panel
Power switch, paper key, LED indicator (3 colors: green, orange, red)
size
224 mm (wide) x 186 mm (high) x 294 mm (long)
882 "(wide) x 7.32" (high) x 11.57 "(long)
Instruction set
Tspl-eztm (compatible with EPL, ZPL, ZPL II)
Communication interface
• USB 2.0
• serial port (rs-232) (customer selection)
• Parallel port (Parallel) (customer selection)
• built-in Ethernet server (customer selection)
• bluetooth (customer selection)
• 802.11b/g/n wireless network transmission (customer selection)
accessories
Windows volume editing software, driver, and operation manual
• quick installation guide
• USB transmission line
• the power cord
• the external voltage switch automatically switches the power supply
• paper scrolls and paper coils x 2
• carbon reel x 2
• carbon recycled paper cartridge
Operating temperature
Operating environment: 5 ~ 40 ° C, humidity (condensation) 25 ~ 85%
Storage temperature
Storage environment: - 40 ~ 60 ° C, humidity (condensation) 10 ~ 90%
Environment specification
Accord with RoHS, WEEE
Weight (including battery)
2.45kg (5.4 lb)
Dealer selection
• the tag dissection sensor
• knife cutter (complete cut and half cut)
• wash the static brush module
Waterproof and waterproof specifications
IP54 (for protective bags)
Safety certification
FCC Class A, CE Class A, CCC
The thickness of the paper
0.06 ~ 0.254 mm (2.36 ~ 10 mille)
The paper type
Continuous paper, spacing paper, black marker paper, sling, and folded paper (outer volume/inner volume)
The paper width
25.4 ~ 118 mm (1.0 ~ 4.6)
Maximum roll size
127mm (5 ") outside diameter, 25.4 ~ 38mm (1 "~ 1.5") paper scrolls
The barcode
• one-dimensional bar code
Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN -8, EAN -13, EAN -128, upc-a,
Upc-e, EAN and UPC 2 (5) digits add - on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11
• 2d barcode
Pdf-417, Maxicode, DataMatrix, QR code, Aztec, GS1 DataBar Composite code
Internal font
• eight bitmap fonts
• a Monotype ® CG Triumvirate Bold Condensed vector fonts and True Type Font Type generator
• use software to download Windows fonts
The factory equipped with
• 128 x 64, including backlight, LCD display screen
Customer optional
• external paper coils (the maximum size 8.4 "can be paired with 3" paper scrolls) (including a link plate in the paper holder)
• serial port (rs-232)
• Parallel port (Parallel)
• built-in Ethernet print server
• bluetooth wireless transfer module (USB port)
• 802.11b/g/n wireless network module (USB port)
• 1.5 "paper spool set x 2
• single machine operating keyboard (KP - 200 PLUS, ku-007 PLUS)
