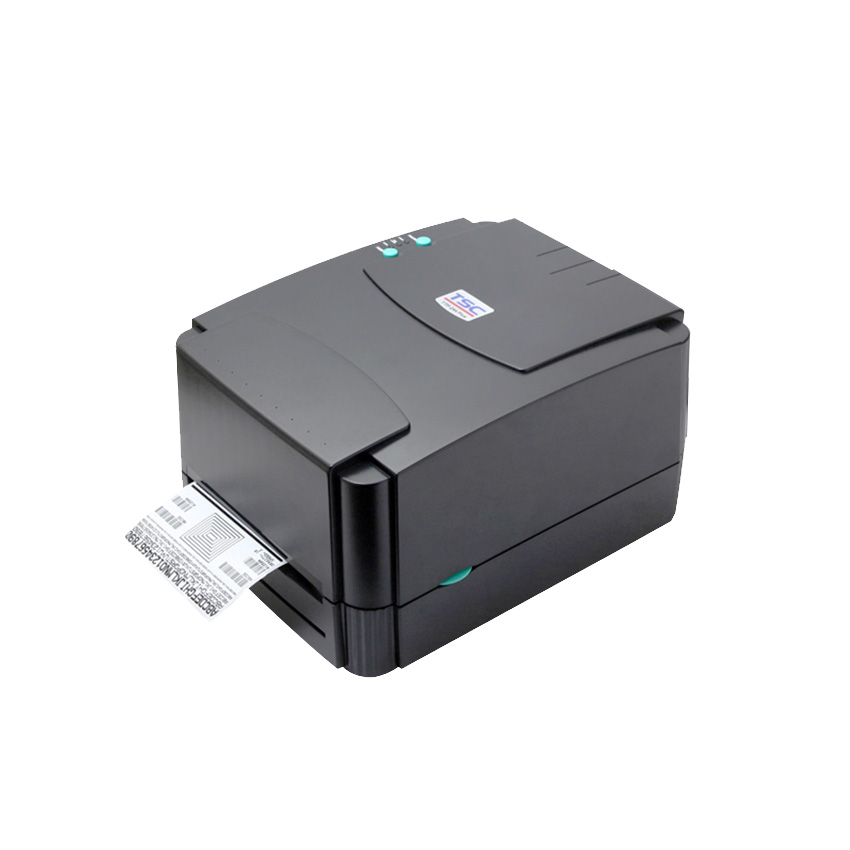

The product name
TTP - 244 Pro
Print pattern
Heat transfer/heat inductance
resolution
203 dpi
Print speed
127mm (5 ")/second
Maximum print width
108 mm (4.25)
Maximum print length
2, 286 millimeters (90)
Central processing unit (CPU)
32-bit efficient processors
memory
• 4 MB Flash memory
• 8 MB SDRAM
• SD card memory expansion slots can be extended to 4 GB (customer selection)
The sensor
• paper spacing sensor
• black line marker sensor (reflex)
• the carbon band runs out of sensors
The shell
ABS plastic
Operation panel
Power switch, paper key, LED indicator (power, error, standby)
size
232 mm (wide) x 156 mm (high) x 288 mm (long)
9.13 "(width) x 6.14" (high) x 11.34 "(long)
Instruction set
Tspl-eztm (compatible with EPL, ZPL, ZPL II)
Communication interface
• USB 2.0
• serial port (rs-232)
• Parallel port (Parallel) (optional)
• bluetooth (customer selection)
• 802.11b/g/n wireless network transmission (customer selection)
accessories
Windows volume editing software, driver, and operation manual
• quick installation guide
• the power cord
• external voltage automatic switch power supply
• paper scrolls and paper coils x 2
• carbon reel x 2
• carbon recycled paper cartridge
• external paper roll holder
Operating temperature
5 ~ 40 ° C, humidity (condensation) 25 ~ 85%
Storage temperature
Storage environment: - 40 ~ 60 ° C, humidity (condensation) 10 ~ 90%
Environment specification
Accord with RoHS, WEEE
Weight (including battery)
2.5 kilograms (5.51 pounds)
Fall fall specification
1.5 meters (5 feet)
Waterproof and waterproof specifications
IP54 (for protective bags)
Safety certification
FCC Class A, CE Class A, c-tick Class A, TUV/Safety, CCC
The thickness of the paper
0.06 ~ 0.25 mm (2.36 ~ 9.84 mille)
The paper type
Continuous paper, spaced paper, perforated paper, folded paper, black marker, elevator, ticket....
The paper width
25.4 ~ 114 mm (1 "~ 4.49")
Maximum roll size
110 mm (4.33)) outside diameter, 254 ~ 76.2 mm (1 "~ 3") paper scrolls
The barcode
• one-dimensional bar code
Code 39, the Code 93, 128 ucc Code, Code 128 subset of A, B, C, Codab ar, Interleave 2 of 5, EAN - 8, EAN 13, EAN - 128, UPC - A,
Upc-e, EAN and UPC 2 (5) the digits add - on, MSI, PLESSEY, POSTNET, RSS -stacked, GS1 DataBar, Code 11
• 2d barcode
Pdf-417, Maxicode, DataMatrix, QR Code, Aztec
Internal font
• eight bitmap fonts
• a Monotype ® CG Triumvirate Bold Condensed vector fonts and True Type Font Type generator
• use software to download Windows fonts
The factory equipped with
Parallel port (Parallel) and serial port (rs-232)
Customer optional
Bluetooth wireless transmission module (serial port interface)
• 802.11b/g/n wireless network module (serial port interface)
• 3 "paper scrolls
• SD memory card slot module
• single machine operating keyboard (KP - 200 PLUS, ku-007 PLUS)
