Basic specifications:

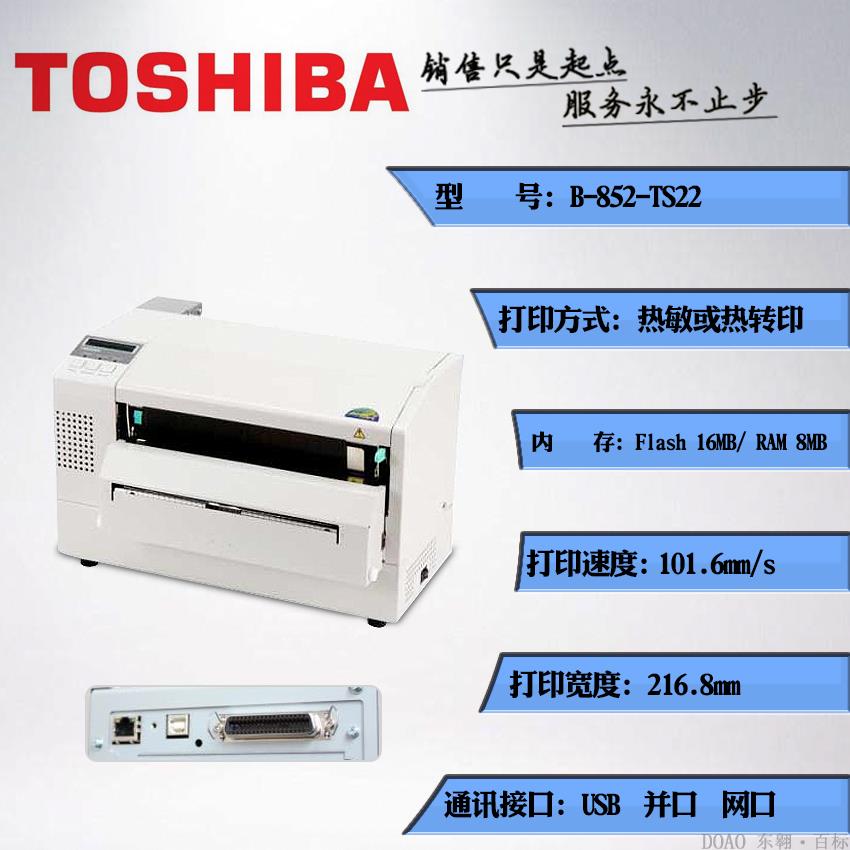

model
B - 852 - TS22 - CN
Way of print
Heat transfer/direct heat
The print head type
Flat pressure type
The resolution of the
300 dpi (dots / 11.8 mm)
The printing speed
50.8 mm per second (2 inches per second)
101.6 mm per second (4 inches per second)
Maximum print width
216.8 mm (8.5 inches)
Available medium width (including paper)
100 ~ 242mm (3.9 ~ 9.5 inches)
Standard interface
Parallel (Centronics, two-way 1284 and a half byte pattern)
USB I/F (V2.0 full speed)
LAN I/F (10/100 BASE - T)
The CPU
32 bits RISC
memory
ROM: Flash 16MB RAM: SDRAM 8MB
Mode of operation
Batch cutter (only if you have the cutter module installed)
LCD display information
16 character/line
Bar code type
Barcode type JAN8, JAN13 EAN8, EAN8 CODE + 2 CODE bar CODE, EAN8 + 5 yard barcode, EAN13, EAN13 CODE + 2 CODE bar CODE, barcode EAN13 CODE + 5 yards, UPC - E, UPC barcode - E + 2 yards, UPC - E + 5 yards barcode, UPC - A, UPC barcode - A + 2 yards, UPC barcode - A + 5 yards, MSI, ITF, NW - 7, Code39, Code93, Code128, EAN128, Industrial2to5, CUSTOMER bar CODE, POSTNET, KIX CODE, RM4SCC (ROYAL MAIL 4 state CUSTOMER CODE), RSS14
2d Code Data Matrix, PDF417, Maxi Code, Micro PDF417, QR Code, CP Code
Available Times Roman font (6), Helvetica (6), Presentation (1), Letter Gothic (1), Prestige Elite (2), Courier (2), OCR (2) and Gothic (1), the vector fonts (4), Price, the font (3)
Rotate angles 0 degrees, 90 degrees, 180 degrees, 270 degrees
Appearance size (WxDxH) 385mmmx181mm x243mm
* the depth is 427mm after the mounting support.
Weight 15.6 kg (excluding medium and carbon)
Power consumption of 217W, 1.1 A (20W, 0.1 A)
Provide voltage alternating current (220 ~ 240V), 50Hz
Ambient humidity 5 degrees ~ 40 degree
Relative humidity 25% ~ 85% RH (non-condensing state)
Optional parts
Serial interface board (rs-232c) (b-sa74-rs-qm-r)
Wireless LAN interface board (b-sa704 - wlan-qm-r)
Cutter module (b-7208 - qm-r)
Extend the input/output interface board (b-sa704 - IO - qm-r)
Real-time alarm clock (b-sa704 - RTC - qm-r)
* for purchase
