model
FM420
FM420 - MS - 30
FM420 - MS - 38
The performance parameters
Read mode
CMOS
The resolution of the
752 * 480
interface
USB1.1 / RS232
USB1.1
RS232
Read code system
The 2 d
PDF 417, QR Code (Model 1/2), Data Matrix (ECC200, ECC000, 050, 080, 100,140), Aztec, Maxicode, LP Code, Chinese Sensible Code, etc
1 d
Code 128, EAN - 13, EAN - 8, Code 39, upc-a, upc-e, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, etc
tilt
45 °
Barcode sensitivity * *
rotating
360 °
deflection
45 °
Read the precision
P 5 mil
The light source
LED (617.5 nm - 633.5 nm)
The intensity of light source
LUX (130 mm)

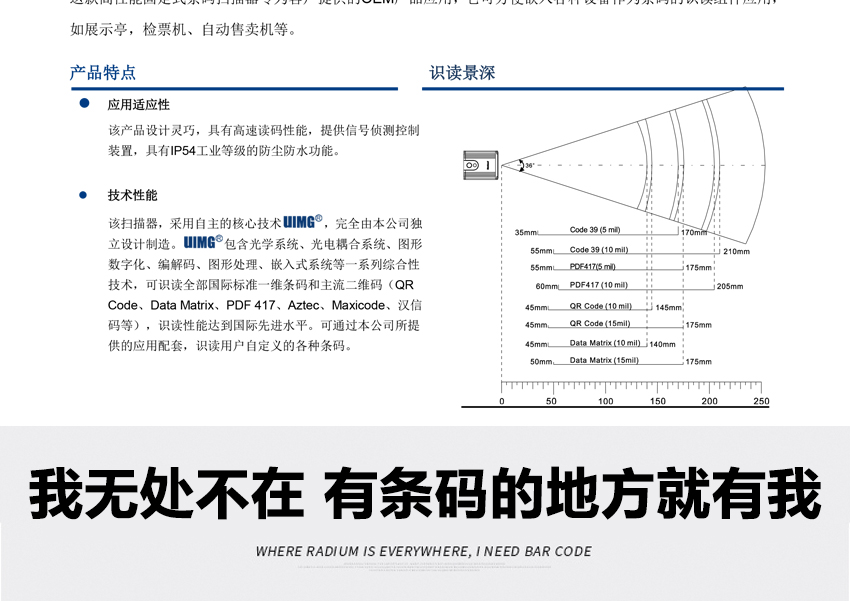

Read the depth of field
35 mm to 210 mm
Print contrast
25% or higher
Mechanical/electrification characteristics
power
1.75 W.
voltage
DC 5 V
current
Maximum current
420 mA
Working current
260 mA
The idle current
1 mA
Main engine size (length x width x height)
49.0 * 37.0 * 25.0 mm
49.0 * 41.4 * 27.0 mm
The host weight
70 g
85 g
The environment
Working temperature
- 10 ° C - + 45 ° C
- 10 ° C - + 60 ° C
Storage temperature
To 40 ° C to + 70 ° C
Relative humidity
5%-95% (no condensation)
Ambient light
0 ~ 100000 LUX
certification
FCC Part15 Class B, CE EMC Class B
Accessories list
cable
RS232
Used to connect FM420 and information receiving host with adapter interface.
USB
Used to connect FM420 and information receiving hosts.
Power adapter ADP50
5V power supply adaptor with data line to FM420 power supply. The output is: DC5V, 0.5 A; Input: AC100 ~ 240V, 50 ~ 60HZ.
* * test conditions are as follows: Code39, 4 Bytes; Minimum width = 10mil; The width is 3:1; PCS = 1.0; Bar height = 12mm; Test distance = 100mm; The environment temperature = 23 ℃; Ambient illumination = 200 LUX
* specifications are subject to change without prior notice
