Scanning performance
image sensor
CMOS
pixel
1280 * 960
lighting
White light LED
focusing
Laser 650nm
Symbologies
2D, PDF417, QR, Code, Data, Matrix, Chinese, Sensible, Code (Han Xinma), etc.
1D EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code93, ITF-6, ITF-14, Interleaved 2, of 5, Industrial 2, of 5, Standard 2, of 5, Matrix 2, of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc.
Reading accuracy *
More than 3mil
Typical reading depth of field *
Model

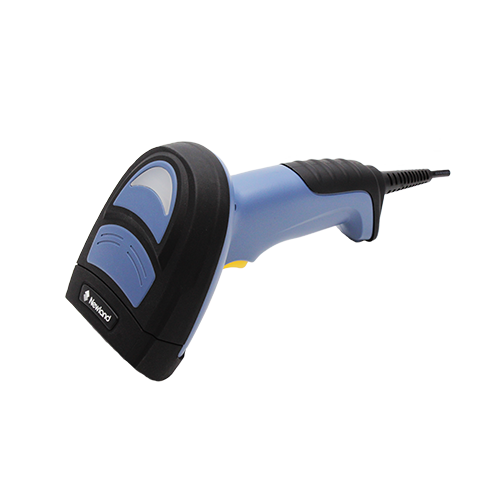

NLS-NVH200HD
EAN-13 (13mil)
25mm~155mm
Code 39 (5MIL)
50mm~100mm
PDF 417 (6.7mil)
40mm~105mm
Data Matrix (10mil)
40mm~110mm
QR Code (15mil)
35mm~155mm
Motion tolerance *
2 m/s
Bar code sensitivity * *
Tilt (pitch)
Plus or minus 50 degrees
Rotation (tilt)
360 degrees
Deflection (skew)
Plus or minus 50 degrees
Fov
Horizontal 40.5 degrees, vertical 30.4 degrees
Symbol contrast *
More than 25%
Machinery /
Electrical parameter
communication interface
R
RS-232, USB, PS/2
Appearance size (mm)
74 (W) * 115 (D) * 161 (H)
weight
173G
Prompt mode
Buzzer, LED indication, vibrator
working voltage
5 VDC + 5%
Rated power consumption
1251 mW (typical)
Current @5 VDC
Working current
266 mA (typical), 344 mA (maximum)
Standby current
109 mA
Environment parameter
working temperature
-20 DEG C, ~50 DEG C
Storage temperature
-40 DEG C, ~+70 DEG C
relative humidity
5%~95% (without condensation)
Electrostatic protection
+ 16 kV (air discharge) + 8 kV (direct discharge)
drop height
1.8 meters
Protection level
IP42
International certification
FCC, Part15, Class, B, CE, EMC, Class, B
Parts list
Data line
USB
The USB data line is used to connect the machine and the information receiving host.
RS-232
The RS232 data line (optional) is used to connect the machine and the information receiving host.
PS/2
The PS/2 data line (optional) is used to connect the machine and the information receiving host.
The power adapter
5V power adapter (optional), with RS232 data line to power equipment.
Output: DC, 5V, 1.5A input: AC, 100~240V, 50~60Hz
.
* test conditions: ambient temperature =23 DEG C; ambient illumination =300 LUX incandescent lamp; test sample codes developed using the new continent
* * test conditions: test distance = (minimum depth of field + maximum depth of field) /2; ambient temperature =23 DEG C; ambient illumination =300 LUX incandescent lamp
2D:QR CODE; 10 Bytes; minimum bar width =15 mil; PCS=0.8;
