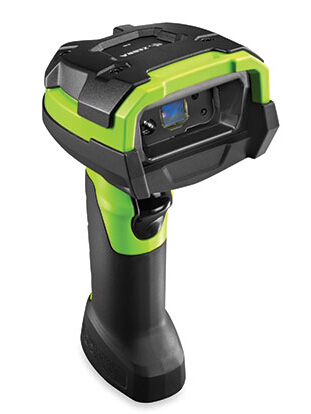

Physical parameters
Size: 18.5 cm H x 7.6 cm W x 13.2 cm D
Weight (excluding cable) : 10.8 ounces / 305 grams
Input voltage and current: minimum 4.5 VDC, maximum 5.5 VDC; Operating current 340mA (typical); Standby current 100mA (typical)
Color: industrial green
Support interface: USB, RS232, keyboard port
User instruction: direct decoding of indicator light, buzzer, vibration
The performance parameters
Image sensor: 1280 * 800pixels
Lighting: 1 660nm super-red LED
Imaging area: level: 42 °; 28 ° vertically:
Minimum print contrast: 15%
Rotate/tilt Angle offset perspective: + / - 360 °, + / - 60 °, + / - 60 °
Decoding ability
1 dimension: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
2d: PDF417, Micro PDF417, Composite Codes, tlc-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
Using the environment
Working temperature: - 22 ° F to 122 ° F to 50 ° to 30 ° C/C
Storage temperature: - 40 ° F to 158 ° F/to 40 ° C to 70 ° C
Humidity: relative humidity 5% to 95%, no condensation
Earthquake resistance: the repeated fall from 8 feet / 2.4 meters to the cement floor can still function normally
Seal: IP67
Light resistance: 0 to 108000lux
Electrostatic discharge: conforms to 25kV air discharge and 10kV contact discharge specification
Tools and maintenance
123Scan: set the scanner parameter and update firmware
Scanner SDK: used to generate a fully functional Scanner program
Scanner Management Service (SMS) : remote administration
Decoding the scope
Code128:5mil -- -- -> 3.3 cm to 17cm
Code128:20mil -- - > 7.1 cm to 71.1 cm
Code128:40mil -- - > 4.4 cm to 152.4 cm
Datamatrix: 7.5 mil - - > 4.8 cm to 15.2 cm
Datamatrix: 10mil - - >, 3.5 cm to 21.8 cm
