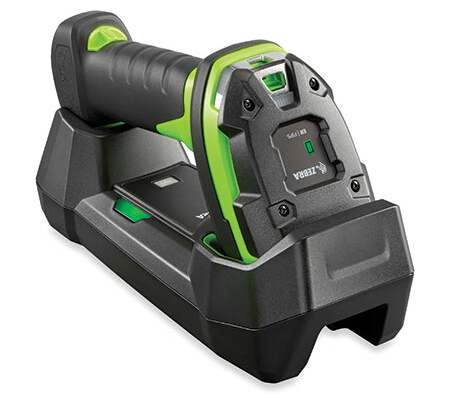

Zebra LI3678 one-dimensional ultra-durable wireless barcode scanner

Brand: ZEBRA
Model: LI3678

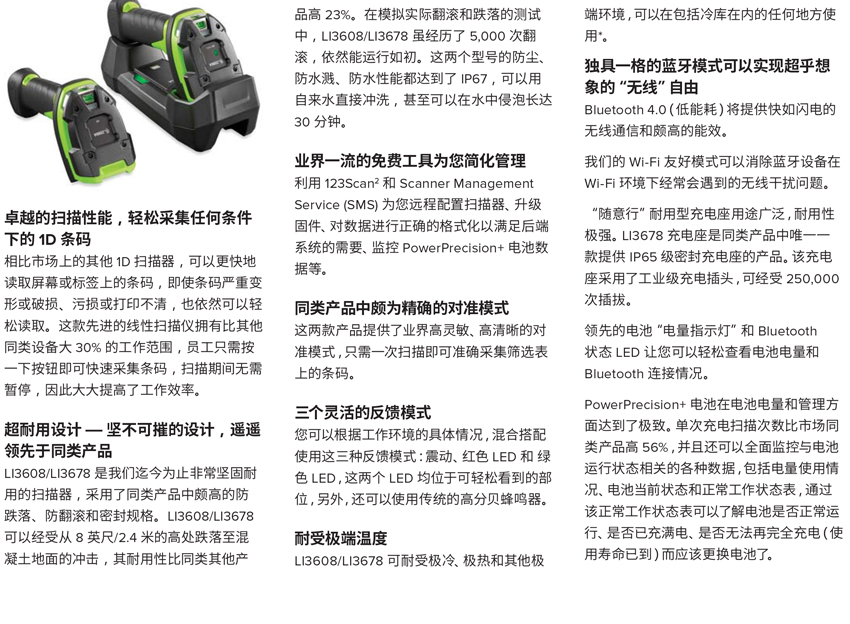

Main features of the product:
1. Superior 1D barcode scanning performance
The 1D barcode on the label or screen is faster than any other 1D scanner on the market
2. Super strong design
It can withstand repeated exposure to the cement floor at an altitude of 8 feet / 2.4 meters, 5, 000 operational roll-off tests, an IP67 seal level, and a spray water that can be immersed in water for more than 30 minutes
3. Three kinds of flexible feedback modes
Vibrations, LED lights, loud sounds
Extreme temperature grade
- 30 ℃ to 50 ℃, allows you to use it anywhere
Bluetooth 4.0 wireless
The Zebra wi-fi friendly model can effectively eliminate wireless interference with other wi-fi devices, and Bluetooth 4.0 (low energy) provides the biggest energy efficiency for wireless communications.
Strong and durable base
The base with an IP65 seal level can withstand 250,000 insertion charges.

DetailParameterDownloadVideo data

Physical parameters

Size: 18.5 cm H x 7.6 cm W x 14.2 cm D

Weight (excluding cable) : 13.6 ounces / 385 g

Input voltage: minimum 4.5 VDC, maximum 5.5 VDC; External power supply: minimum 11.4 VDC, maximum 12.6 VDC

Color: industrial green

Support interface: USB, RS232, keyboard port

Battery: 3100mAh rechargeable lithium battery

User instruction: direct decoding of indicator light, buzzer, vibration

The performance parameters

Full power scan: 70000 +

Image sensor: 1500pixels

Lighting: 2 617nm amber LED

Imaging area: 35 °

Minimum print contrast: 15%

Rotate/tilt Angle offset perspective: + / - 65 °, + / - 65 °, 45 ° + / -

Decoding ability

One dimensional Code: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, Base 32 (Italian Pharma)

Using the environment

Working temperature: - 22 ° F to 122 ° F to 50 ° to 30 ° C/C

Storage temperature: - 40 ° F to 158 ° F/to 40 ° C to 70 ° C

Humidity: relative humidity 5% to 95%, no condensation

Earthquake resistance: the repeated fall from 8 feet / 2.4 meters to the cement floor can still function normally

Seal: scanner: IP67; Base: IP65

Light resistance: 0 to 108000lux

Electrostatic discharge: conforms to 25kV air discharge and 10kV contact discharge specification

Tools and maintenance

123Scan: set the scanner parameter and update firmware

Scanner SDK: used to generate a fully functional Scanner program

Scanner Management Service (SMS) : remote administration

Wireless communications

Bluetooth frequency: bluetooth class1, 4.0, serial port and HID

Data rate: typical bluetooth: 3Mbit/s (2.1 Mbit/s); Low energy: 1Mbit/s (0.27 Mbit/s)

Communication range: Class1: Max 100 meters; Class2: the maximum 10 meters

Decoding the scope

Code39:4mil -- -- -> 10.2 cm to 25.4 cm

Code39:5mil -- -> 7.6 cm to 33cm

Code39:7.5 mil -- -- -- -- > 3.8 cm to 48.3 cm

UPC: 13mil (100%) - > 2.5 cm to 78.7 cm

Code39:20mil -- -- -> 0cm to 106.7 cm

UPC: 26mil (200%) - - > 7.6 cm to 140cm
