Physical parameters
Size: 18.65 cm tall x 12.25 cm long x 743 cm wide
Weight (excluding cable) : 13.9 ounces / 391 grams
Battery: 2200mAh lithium ion battery charging time: 3 hours full (100%) color: light black/yellow
The performance parameters
Light source: 650nm visible laser diode, light 630nm visible laser diode
39.6 ° imager horizon: standard scope focus (horizontal) x 25.7 ° (vertical); High density focus 38.4 ° (horizontal) x 24.9 ° (vertical)
Rotation Angle: 0-360 degrees
Tilt Angle: + -60 degrees
Offset view: + -60 degrees
Mobile fault-tolerant: for 100% 13milUPC up to 1.52 m/s, the effect of mobile fault tolerance depends on the type of barcode, the scanning distance and the quality of the printing
Decoding ability
One dimensional Code: UPC, EAN, UPC, EAN with Supplementals, UCC. EAN 13, 128, JAN 8 & Code 39, 39 Full ASCII Code, Code 39 Trioptic, Code 128, 128 Full ASCII Code, Codabar (NW7), Interleaved 2 of 5, Discrete '2 of 5, 93, MSI, Code 11 Code, Code 32, Bookland EAN, IATA, UCC/EAN RSS and RSS variants
QR Code: PDF417, microPDF417, MaxiCode, Data Matrix (ECC 2000), Composite Codes and QR Code
Postal codes: U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, Australian Postal and Dutch Postal
DPM mark: machine play Datamatrix tag (only DS3578 - DP), by laser etching, chemical etching, inkjet marking, casting, molding, or cast in metal, plastic, rubber, or on the surface, such as glass, make all supported above the barcode type
IUID support: supports IUID resolution, and the performance of reading and separating IUID fields depends on the requirements of the application
Using the environment
Working temperature: - 4 ° F to 122 ° F / - 20 ° C to 50 ° C
Storage temperature: - 40 ° F to 140 ° F / - 40 ° to 60 ° C C
Humidity: relative humidity 5% to 95%, no condensation
Ability to withstand earthquakes: repeatedly fall from 6.5 feet / 2 meters to the cement floor and still function properly
Anti-light: it can resist natural light and artificial light (i.e., sunlight, incandescent light, fluorescent lamp, mercury lamp, nano lamp)
Seal level: IP65
Number of rechargeable seats: 250,000 times inserted
Electrostatic discharge: conforms to 20kV air discharge and 8kV contact discharge specification

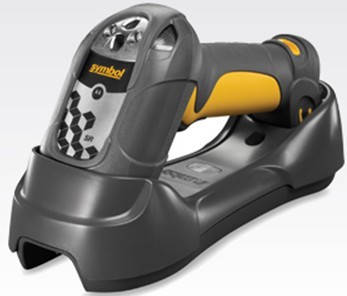

Charging base: STB3578 and FLB3578
Power requirements: 4.75-14vdc
Wireless specifications
Radio: Bluetooth Class2 Version1.2 serial port and HID Profiles
Frequency: 2.402 to 2.480 GHz adaptive frequency hopping and co-existence with 802.11 wireless networks
Data rate: 720Kbps
Wireless range: it can reach up to 100 meters in a straight line without shade, and the typical indoor wireless range is 33 meters, but its range varies depending on the specific environment
interface
Supported interfaces: USB, RS232, RS485, keyboard interface, and Synapse
Option to
A gun sleeve (attached to a trousers or belt); Intelligent bracket (hands-free scanning); BalancerPulley; Standard charger (only for charging); Standard communication base (wireless/charging); Forklift charging stand (charging only); Forklift communication (wireless/charging)
DS3578 decoding region:
Label density DS3578 - SR DS3578 - HD/ds3578-dp
Code39-3mil does not apply to 27.9mm - 40.6 mm
Code39-4mil 66mm - 114.3 mm contact - 88.9 mm
Code39-5mil 25.4 mm-160mm contact - 106.7 mm
Code39-7.5 mil contact - 256.5 mm contact - 137.2 mm
Code39 20 mil - 25.4 mm to 530.9 mm to 27.9 mm to 27.9 mm
100% UPC - 13 mil 22.9 mm to 383.5 mm; 20.3 mm to 157.5 mm
Pdf417-6.67 mil 68.6 mm - 154.9 mm contact - 94mm
Pdf417-10mil 10.2 mm - 236.2 mm contact - 114.3 mm
PDF417-15 mil 83.8 mm to 375.9 mm to 81.3 mm to 81.3 mm
Data Matrix - 4mil does not apply to 25.4 mm-53.3 mm
Data Matrix - 5mil does not apply to 10.2 mm - 68.6 mm
Data Matrix - 7.5 mil 53.3 mm - 139.7 mm contact - 88.9 mm
Data Matrix - 10mil 27.9mm - 180.3 mm contact - 111.8 mm
QR Code - 4mil does not apply 27.9 mm-35.6 mm
QR Code - 5mil does not apply 12.7 mm-55.9mm
QR Code - 7.5 mil is not applicable to contact - 83.8 mm
QR Code - 10mil 38.1 mm - 154.9 mm contact - 101.6 mm
