Physical parameters
Size: 6.55 inches tall x 4.72 inches long x 2.82 inches wide
16.6 cm high x 11.9 cm long x 7.1 cm wide
Weight: 6.4 ounces (182 g)
Voltage and current: 5 + / -10% VDC @350 mA

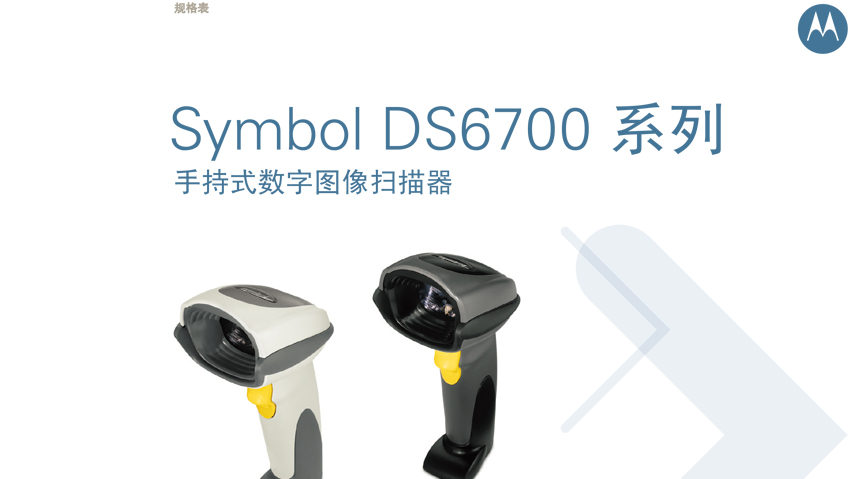

Color: white or light black (pictured) cash register
The performance parameters
Light source: target: 650 nanometer visible laser diode
Illumination: 630 nano-led
Horizon (vertical level x) : SR - standard range: 34 ° 43 ° V x H; DC - document acquisition: 35 ° 44 ° V x H
Rotating/back and forth swinging: SR - standard range: 360 °, + 65 °, plus or minus 60 °; DC - document acquisition: 360 °, + 360 °, plus or minus 60 °
Symbolic decoding function
One dimension: UPC/EAN and with supplementals, Code 39, 39 Full ASCII Code, Tri - optic Code 39, RSS variants, UCC/EAN 128, Code 128, 128 Full ASCII Code, Code 128, Codabar (NW1), Interleaved 2 of 5, 2 of 5, MSI, Discrete 'Codell, IATA, Bookland EAN Code, 32
PDF417 (and variant) : PDF417, microPDF417 and Composite Codes
Post: us Postnet and Planet, UK, Japan, Australia and the Netherlands
Two dimensions: MaxiCode, DataMatrix (ECC 200) and QR Code
Rated work distance (SR - standard range focus) : 5 mil (Code 39) : 1.1 -- 6.5 inches (2.8 -- 16.5 cm); 13 mil (100% UPC/EAN) : 0.5-9.7 inch (1.3-24.6cm); 20 mil (Code 39) : 0.5 -- 15.2 inches (1.3-38.6cm); PDF417 (10 Mil) : 0.9-7 inches (2.3-17.8 cm); Datamatrix (10 Mil) : 1.1 -- 7.5 inches (2.8 -- 19.1 cm); Rated work distance (DC - document collection focus) : 5 mil (Code 39) : 2.5 -- 10 inches (6.5 -- 25.4 cm); 13 mil (100% UPC/EAN) : 0.8-16.8 inches (2 -- 42.7 cm); 20 mil (Code 39) : 0.7 to 28.3 inches (1.8 -- 71 cm); PDF417 (10 Mil) : 1.9-11.8 inches (4.8-30cm); Datamatrix (10 Mil) : 2.6-12.2 inches (6.6-31 cm)
Minimum print contrast: the minimum reflects 25%
Movement tolerance: horizontal speed: 5 inches per second (12.7cm)
Supported interfaces: DS6707: rs-232c (standard, Nixdorf, ICL and Fujitsu), USB (standard, IBM SurePOS, Macintosh) and Synapse are allowed to connect to all of these interfaces and multiple non-standard interfaces. DS6708: including the above interface and IBM 468x / 469x and keyboard simulation

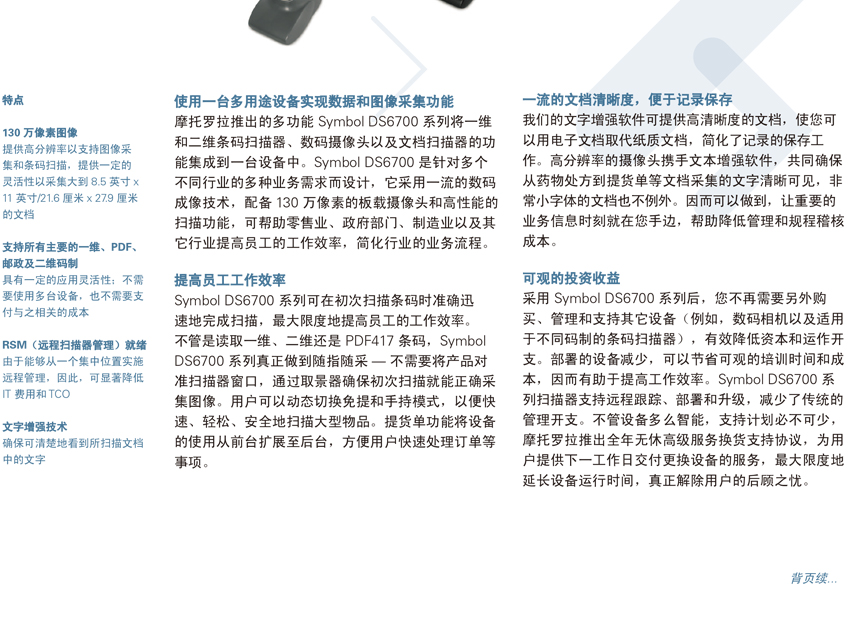

Image parameters (DS6707 only)
Image (pixel) : 1.3 megapixels: 1280 H x 1024 V
Graphical format support: you can export images to Bitmap, Jpeg, and Tiff
Image transmission speed: USB 1.1: up to 12 Mb/SEC; RS232: up to 115 Kb baud rate
Image transmission time: transmission of a 100kb Jpeg compression file, typical USB application takes about 0.2 seconds
Image distance (vertical x level) :
Document size: minimum distance (about)
2 1/8 x 3 3/8 inches (5.4 x 8.6 cm) 2.4 inches (6.1 cm)
4 x 6 inches (10.2 x 15.2 cm) 5.7 inches (14.5cm)
5 x 7 inches (12.7 x 17.8 cm) 6.9 inches (17.5 cm
) 8 x 11 inches (21.6 x 28 cm) 11.9 inches (30.2 cm)
The range is calculated from the front end of the scanner, based only on the standard range focus
* note: the imaging parameters only apply to DS6707. DS6708 does not support image transmission.
Using the environment
Working temperature: 32 ° to 122 ° F / 0 ° to 50 ° C
Storage temperature: - 40 ° to 158 ° F / - 40 ° to 70 ° C
Humidity: 5% to 95% (no condensation)
Falling specification: can withstand the impact of falling from 6 feet (1.8 meters) to the cement floor
Seal: IP43 seal standard, waterproof and dustproof
Light resistance: it is not disturbed by indoor normal lighting conditions and outdoor natural light (direct sunlight).
Rules and regulations
Electrical safety: UL6950-1, CSA C22.2 No. 60950-1, EN60950-1 / iec 60950-1
Laser safety: EN60825-1:19 94 + A1:2002 + A2:2001, iec60825-1, 21CFR1040. 10 and 21CFR1040. 11, CDRH II, IEC level 2
EMI/RFI: FCC, part B, ba-003 B, CISPR 22, CISPR 24
Medical electronic equipment: en60001-1-2:2002
Environment: compliance with RoHS directive 2002/95 / EEC requirements
Installation and selection (attachment) : Intellistand, adjustable height: 5 -- 10 inches (12.7 -- 25.4 cm); Adjustable Angle: 0 °, 90 °, may also provide desktop and wall mounting bracket.
Supply power: supply power supply for applications that are not powered by the main cable.
