Zebra/Symbol LS2208 barcode scanning gun

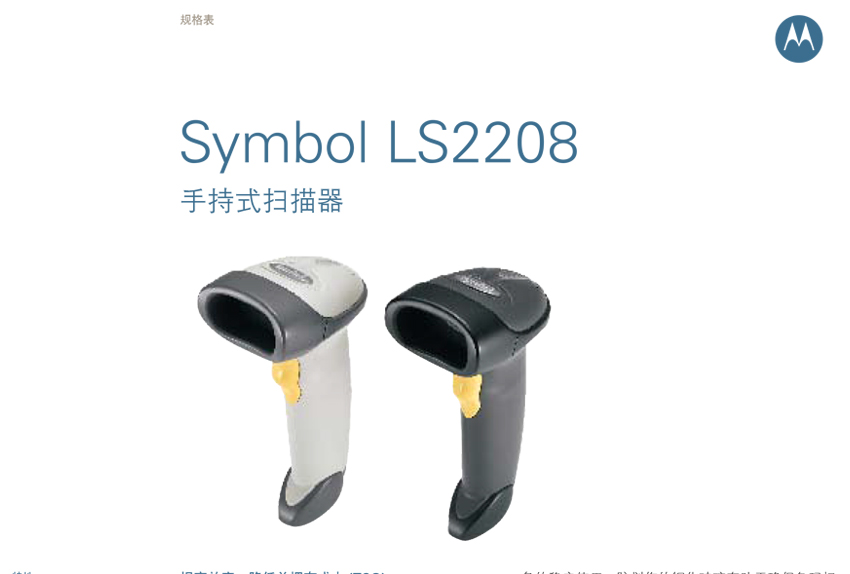

Symbol LS2208 barcode scanner

Brand: ZEBRA/Symbol
Model: Symbol LS2208
Main features of the product:
1. The scanning element in LS2208AP is designed by liquid injection method, which can be fully shockproof and durable. These powerful features help to prevent failures and minimize costs.
2. In any field, excellent quality and reasonable price of LS2208AP handheld scanner can provide unparalleled performance, excellent reliability, and user friendly man-machine engineering design, thus creating more efficient mobile work environment.

DetailParameterDownloadVideo data

Light source: 650 nanometer, visible laser diode

Scope of work: the scan range of 100% UPC/EAN code from direct contact to 8 inches / 20 cm can be scanned normally

Scan contrast: 20% minimum reflection

Scan speed: 100 times/s

Rolling: + / -30 degrees

Back and forth: + / -65 degrees

The left and right oscillations: + / - 60 degrees

Decoding ability: support UPC/EAN, Code 39 Full ASCII, Code 128, Codabar Interleaved 2 of 5, MSI/Plessey, IATA, r55, Chinese 2 of 5

Electric pressure: 5 VDC

Source: compliance with UL, CSA, VDE, FCC A and B

Light resistance: adaptable to indoor and outdoor environments

Weight: 146 g

Standby current: less than 500 mah

Cable: portable 6 foot (1.8 meter) mobile cable

Supported interfaces: Uudecoded, RS232, Keyboard Wedge, Eand Emulation, USB and Synapse

Working temperature: 0 ℃ to 50 ℃

Storage temperature: - 40 ° to 70 °

Earthquake resistance: 1.5m high free fall

Programming method: M USES this manual

Receive Windows software by RS232 (optional)

Set features: bar code type option, check digit option, decoding options, transmission delay characters, suffix characters, normal read prompt volume and tone, the trigger option, the keyboard simulation type (packet delay, the keyboard type, the keyboard language)
