Dolphin 6110 CE6.0 mobile data terminal
Brand: Honeywell
Model: Dolphin 6110 CE6.0

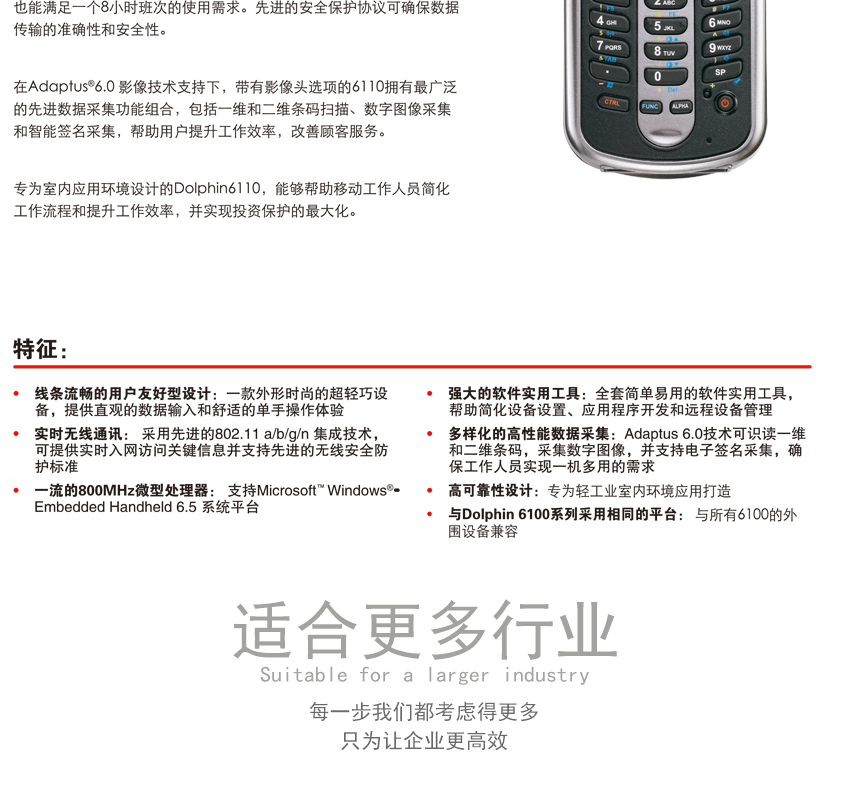

Main features of the product:
1. Ultra-light equipment brings intuitive data input and comfortable one-handed operation with the appearance of fashion.
2. Adopting the advanced technology of 802.11a/b/g/n to provide real-time access to key information and support advanced wireless security protection standards.
3. Support Microsoft ® ® Windows CE 6.0 and Windows Embedded Handheld 6.5 platform.
4. Adaptus 6.0 imaging technology can read a peacekeeping two-dimensional barcode, collect digital images, and support electronic signature collection to ensure that the staff can achieve the multi-functional requirements.
Specially designed for light industry indoor environment.
DetailParameterDownloadVideo data
Performance parameters of Honeywell 6110 data collector
Physical / environmental parameters
ESD air discharge + 15kV; contact discharge + 8Kv
Environmental density class IP54
Roll down 1m within 500 rolls
Fall resistance can withstand 1.2 meters in the air repeatedly fall
Humidity 95%, relative humidity, no condensation
The operating temperature is -20 DEG C, -70 DEG C
Physical size (length X, width, x height)
Standard cell: 175mm, x, 69mm, x, 39mm
Large capacity battery: 175mm, x, 69mm, x, 43mm
Grip: 58mm
weight
Image type: standard battery: 8.7oz; large capacity battery: 9.5OZ
Laser type: standard battery: 8.9oz; large capacity battery: 9.7oz (including wristband)
system architecture
Processor Texas, Instruments, OMAP3715, 800MHZ processor
Operating system Microsoft, Windows, Embedded, Handhend, 6.5.3
Memory 512MB RAM * 512MB Flash
Keyboard type 28, type letters keyboard, with backlight
Audio integrated microphone and speaker, stereo headphone jack
I/O full speed USB1.1 base, RS232 base
Voice communication is equipped with VoIP language function and one click pass
The operating time of the battery is -40 DEG C and 60 DEG C
Battery charge time, standard battery 4 hours, large capacity battery 6 hours
Decoding capability: image standards, one and two dimensional code system, laser type: one dimensional code system for reading standards
Warranty period, terminal box, peripheral equipment guarantee 1 years
Wireless parameter
WLAN 802.11 a/b/g/n; Wi-Fi authentication
Product site: http://www.dzbarcode.com/honeywell/6110.htm
