Honeywell Voyager 1202g wireless single-line laser scanner one-dimensional bluetooth barcode scanning gun

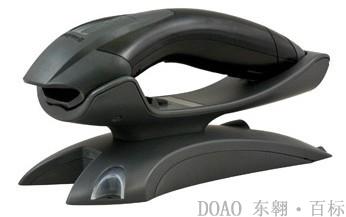

Voyager 1202g wireless single-line laser scanner

Brand: Honeywell
Model: Voyager 1202g
Main features of the product:
Bluetooth wireless technology: support the scanning of standard one-dimensional barcode within a range of 10 meters (33 feet) or more (depending on the application)
Battery life is durable and requires no tools to disassemble: the user's preferred lithium-ion battery can provide 12 hours or longer of use, depending on the scan amount; Field replaceable batteries can be replaced quickly and easily without any tools
Automatic interface configuration: a single device supports all common interfaces, replacing the time-consuming and laborious programming barcode scanning process with automatic interface detection and configuration
Low drout performance: the low quality of the bar code read various one dimensional barcode scanning fast, including those broken and smudgy barcode, added a scan pass rate and reduce the manual keyboard input error
The search function: simply press the button on the base to locate the missing scanner; The Voyager1202g indicator panel responds by a series of buzzes and flashes
Remote MasterMind Remote management: provide a full range of Remote device management solutions that can easily manage and track the use of installed devices and reduce the overall cost

DetailParameterDownloadVideo data

Physical parameters

Size: scanner: 18 cm tall x 6.6 cm long x 9.2 cm wide; Base: 20 cm high x 6.7 cm long x 9.7 cm wide

Weight: scanner: 180 grams (including battery); Base: 185 g

The performance parameters

Scanning mode: single line scan

Scanning speed: 100 scan lines per second

Scanning Angle: horizontal 30 °

Discernibility reflection contrast: the lowest 10% reflection difference

Slope, partial degrees: 60 °, 60 °

Decoding ability: read all the GS1 DataBar symbol system

Wireless communication performance

Radio frequency/communication range: 2.4 to 2.5ghz (ISM spectrum) adaptive FM (AFH) bluetooth Class2:10-meter visual distance communication

Data rate (transmission rate) : 3Mbit/second (2.1mbit/SEC)

Battery: minimum 1800 milliampere lithium ion battery

Scan frequency: each charge can be scanned nearly 45 million times

Expected operating time: 12 hours

Estimated charging time: 4 hours

Using the environment

Working temperature: scanner: 5 ° C to 40 ° C; Base: charging 5 ° C to 40 ° C, not charging 0 ° C to 50 ° C

With battery storage temperature: scanner: - 5 ° to 35 ° C C, charging communications tower: - 5 ° to 35 ° C C

Humidity: relative humidity of 0% to 95%, no condensation

Anti-seismic ability: scanner: can withstand 30 times 1.5 m repeatedly fall (to concrete floor); Base: can withstand 30 1m air falls (to the concrete floor)

Light level: 0 to 70000lux

Seal level: IP42

Electrical parameters

Working power: 5W (1A, 5VDC)

Standby power: 0.625 W (0.1 A, 5VDC)

Supported interfaces: USB, RS232, RS485, keyboard interface

Option to

A plastic bracket used to fix a scanner to a wall, with two fixed screws

Voyager 1202g decoding area:

The barcode width is deep

5 mil 27 mm - 151 mm

7.5 mil 16 mm - 216 mm

10 mil 0 mm - 277 mm

13 mil 0 mm - 311 mm

20 mil 0 mm - 367 mm
