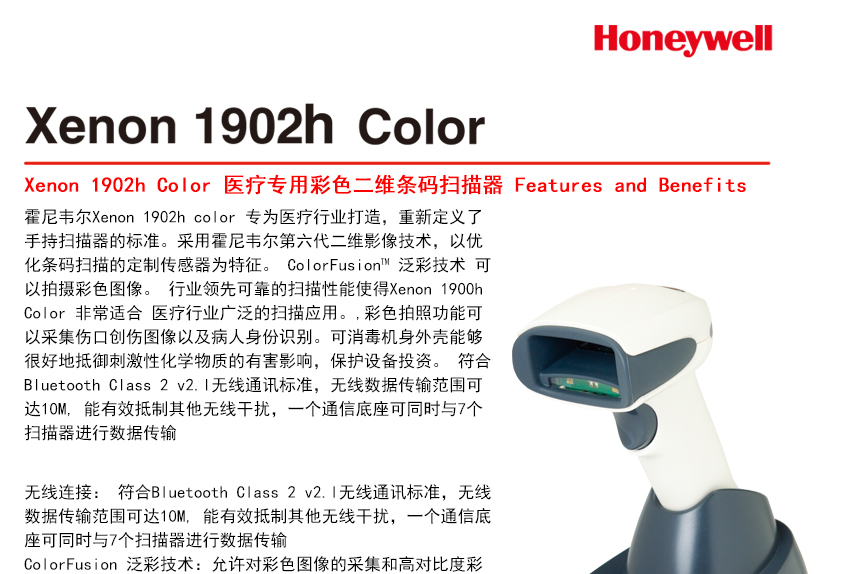

Honeywell Honeywell Xenon 1902h Color medical specialty Color 2d barcode scanner
Brand: Honeywell
Model: Xenon 1902h Color
Main features of the product:
Wireless connection: comply with Bluetooth Class 2 v2. L wireless standards, wireless data transmission range of up to 10 m, can effectively resist 2. Other wireless interference, a communication base at the same time with seven scanner for data transmission
3. ColorFusion panchromatic technology: allow the scanning of color image collection and high contrast color bar code without reducing the performance of barcode scanning
4. Long battery without the need of tools to remove:
5. Disinfectant fuselage shell: strong and durable equipment structure, which can resist the harmful effects of irritant chemicals and protect equipment investment
6. Remote joint ® scanner Remote management software: a fast and convenient solution that satisfies the IT administrators in a fixed location management requirements of all the scanner in the grid
7. Vertical base: minimize the footprint, support demonstration scanning, and make the scanner more suitable for use in places such as pharmacy
8. No laser scheme: Class I LED lighting reduces the risk of eye damage and is different from laser-type equipment, which does not require safe operation training
DetailParameterDownloadVideo data
Xenon, 1902h, Color technical parameters
Wireless communication performance
Radio frequency band / communication distance: 2.4 to 2.5GHz (ISM frequency band), adaptive frequency hopping (AFH), Bluetooth v2.1, Class 2, 10 meter visual distance communication
Data rate (transfer rate): 3Mbit/ seconds (2.1Mbit/ seconds)
Battery: minimum 1800 Ma lithium ion battery
Scanning times: each charge can be scanned nearly 50 thousand times
Expected operating time: 14 hours
Estimated charging time: 4.5 hours
Physical / electrical parameters
Scanner charger / communication base station
Dimensions (L * w * h) 104 mm x71 mm x160 mm 132 mm X102 mm x81 mm
Weight 214G 179g
Work power (charge) without 5W (1A@5V)
Non charge state power without 0.5W (0.1A@5V)
Host system interface without USB, keyboard port, RS232, IBW, 46XX (RS485)
Environment parameter
Operating temperature 0 degrees C to 50 degrees C charging: 5 degrees C to 40 degrees C
No charge: 0 degrees C to 50 degrees C
Storage humidity -40 degrees C to 70 degrees C, -40 degrees C to 70 degrees C
Humidity 0% to 95% relative humidity, no condensation, 0% to 95% relative humidity, no condensation
Anti fall strength can withstand 50 times 1.8m air fall, can withstand 50 1m air fall
Industrial grade IP41 IP41
Light rating 0 to 100000Lux (9290 feet of candle light) without
Scanning performance
Scan mode two-dimensional image (838 x, 640 pixel array)
Anti jitter best focus scanning 13mil UPC code can reach 610 cm / sec
Scanning angle high density H: level: 41.4 degrees; vertical: 32.2 degrees
Standard distance SR: level: 42.4 degrees: vertical: 33 degrees
Long distance ER: level: 31.6 degrees: vertical 24.4 degrees
A reflectance difference of 20% at the lowest reflex contrast is recognized
Slope, skewness 45 degrees, 65 degrees
Decoding capabilities can be soviet standard, one-dimensional, stacked, two-dimensional bar code and postal code, and specific OPCR fonts
