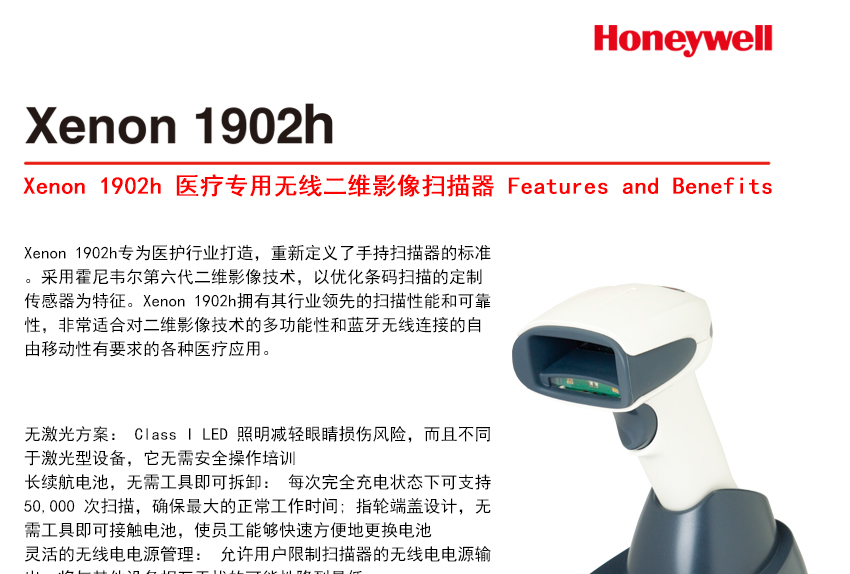

Xenon 1902h medical special wireless 2d image scanner
Brand: Honeywell
Model: Xenon 1902h
Main features of the product:
1. No laser scheme: Class I LED lighting reduces the risk of eye damage and is different from laser type equipment, which does not require safe operation training
2. Long battery life, without the need of the tool to disassemble: each time fully charging state can support 50,000 scans, ensure the maximum normal 3. Finger wheel cover design, no tool can contact the battery, so that the staff can change the battery quickly and easily
4. Flexible radio power management: allow users to restrict the output of the scanner's radio power, and minimize the possibility of interference with other devices
5. Disinfectant fuselage shell: strong and durable equipment structure, which can resist the harmful effects of irritant chemicals and protect equipment investment
6. Remote joint ® scanner Remote management software: a fast and convenient solution that satisfies the IT administrators in a fixed location management requirements of all the scanner in the grid
7. Vertical base: minimize the footprint, support demonstration scanning, and make the scanner more suitable for use in places such as pharmacy
DetailParameterDownloadVideo data
Xenon, 1902h technical parameters
Wireless communication performance
Radio frequency band / communication distance: 2.4 to 2.5GHz (ISM frequency band), adaptive frequency hopping (AFH), Bluetooth v2.1, Class 2, 10 meter visual distance communication
Data rate (transfer rate): 3Mbit/ seconds (2.1Mbit/ seconds)
Battery: minimum 1800 Ma lithium ion battery
Scanning times: each charge can be scanned nearly 50 thousand times
Expected operating time: 14 hours
Estimated charging time: 4.5 hours
Physical / electrical parameters
Scanner charger / communication base station
Dimensions (L * w * h) 104 mm x71 mm x160 mm 132 mm X102 mm x81 mm
Weight 214G 179g
Work power (charge) without 5W (1A@5V)
Non charge state power without 0.5W (0.1A@5V)
Host system interface without USB, keyboard port, RS232, IBW, 46XX (RS485)
Environment parameter
Operating temperature 0 degrees C to 50 degrees C charging: 5 degrees C to 40 degrees C
No charge: 0 degrees C to 50 degrees C
Storage humidity -40 degrees C to 70 degrees C, -40 degrees C to 70 degrees C
Humidity 0% to 95% relative humidity, no condensation, 0% to 95% relative humidity, no condensation
Anti fall strength can withstand 50 times 1.8m air fall, can withstand 50 1m air fall
Industrial grade IP41 IP41
Light rating 0 to 100000Lux (9290 feet of candle light) without
Scanning performance
Scan mode two-dimensional image (838 x, 640 pixel array)
Anti jitter best focus scanning 13mil UPC code can reach 610 cm / sec
Scanning angle high density H: level: 41.4 degrees; vertical: 32.2 degrees
Standard distance SR: level: 42.4 degrees: vertical: 33 degrees
Long distance ER: level: 31.6 degrees: vertical 24.4 degrees
A reflectance difference of 20% at the lowest reflex contrast is recognized
Slope, skewness 45 degrees, 65 degrees
Decoding capabilities can be soviet standard, one-dimensional, stacked, two-dimensional bar code and postal code, and specific OPCR fonts
