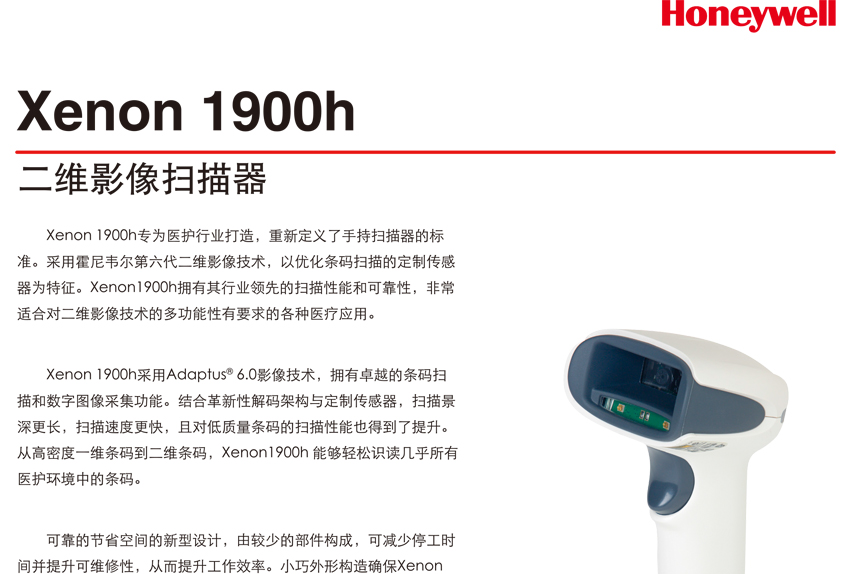

Xenon 1900h image scanner
Brand: Honeywell
Model: Xenon 1900h

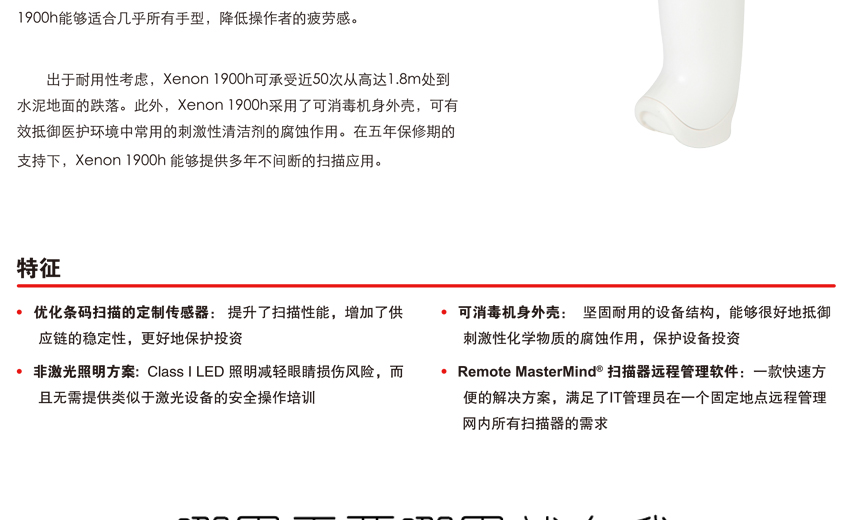

Main features of the product:
1. Optimization of the custom sensor of barcode scanning: enhanced scanning intensity, increased supply chain stability, and better protection of investment
2. No laser scheme: Class I LED lighting reduces the risk of eye damage and is different from laser type equipment, which does not require safe operation training
3. Disinfectant fuselage shell: strong and durable equipment structure, which can resist the harmful effects of irritant chemicals and protect equipment investment
4. Remote joint ™ scanner Remote management software: a solution quickly and easily, to meet the IT administrators in a fixed location management requirements of all the scanner in the grid
DetailParameterDownloadVideo data
Xenon 1900h technical parameters
Physical parameter
Dimensions (L * w * h): 104 mm x71 mm x160 mm (4.1 "x2.8" x6.3 ")
Weight: 147 grams (5.2oz)
Electrical Parameters
Input voltage: 4VDC to 5.5VDC
Operating power: 2.3W (450mA@5VDC)
Standby power: 0.45W (90mA@5VDC)
Host system interface: USB interface, keyboard port, RS232, IBM46xx (RS485)
Environment parameter
Operating temperature: 0 degrees C to 50 degrees C
Storage temperature: -40 degrees C to 70 degrees C
Temperature: 0% to 95% relative humidity, without condensation
Resistance to fall: can withstand 50 times 1.8m (6 ') of repeated drops (to the concrete floor)
Industrial grade: IP41
Illumination rating: 0 to 100000lux (9290 feet of candle light)
Scanning performance
Scan mode: two-dimensional image (838 x, 640 pixel array)
Jitter resistance: the best focus of scanning 13mil, UPC bar code can reach 610 cm / S (240 inches / sec)
Scanning angle: high density HD: level 41.4 degrees; vertical: 32.2 degrees
Standard distance SR: horizontal; 42.4 degrees; vertical: 33 degrees
Recognizable reflected contrast: recent 20% reflection difference
Slope and skewness: 45 degrees, 65 degrees
Decoding capability: able to read standard ID, PDF, 2D barcodes, and various postal codes and OCR characters. Note: the ability to decode depends on the configuration of the product"
Warranty: 5 years, factory warranty
