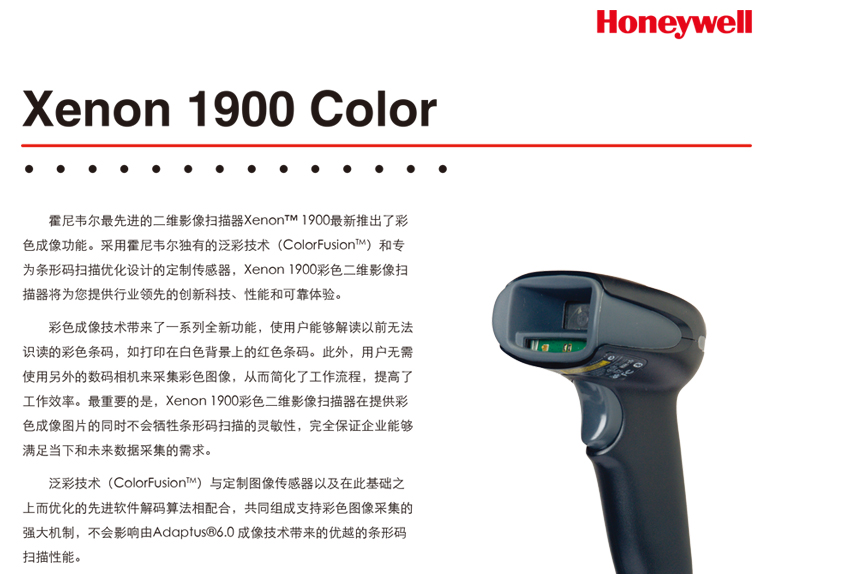

Xenon ™ 1900 color color of 2 d image scanner
Brand: Honeywell
Model: Xenon ™ 1900 color
Main features of the product:
1. ColorFusion panchromatic technology: allow the scanning of color image collection and high contrast color bar code without reducing the performance of barcode scanning
2. Custom sensor which is most suitable for barcode scanning: improved scanning intensity and protected investment by increasing the stability of the supply chain
3. Two focal length choices: high density and standard spacing, which can be used to provide scanning applications for specific USES, thus improving production efficiency
4. Image processing software: provide advanced editing functions, such as cutting, increasing brightness, rotation and sharpening, etc., to make high-quality digital images
5. TotalFreedom ™ 2.0: secondary development platform, make on the scanner can be loaded and links to many applications, to strengthen the function of image processing, decoding, or data format, without the need for modifications on the host
DetailParameterDownloadVideo data
Xenon 1900 Color technical parameters
Physical parameter
Dimensions (L * w * h): 104 mm x71 mm x160 mm (4.1 "x2.8" x6.3 ")
Weight: 147 grams (5.2oz)
Electrical Parameters
Input voltage: 4VDC to 5.5VDC
Operating power: 2.3W (450mA@5VDC)
Standby power: 0.45W (90mA@5VDC)
Host system interface: USB interface, keyboard port, RS232, IBM46xx (RS485)
Environment parameter
Operating temperature: 0 degrees C to 50 degrees C
Storage temperature: -40 degrees C to 70 degrees C
Temperature: 0% to 95% relative humidity, without condensation
Resistance to fall: can withstand 50 times 1.8m (6 ') of repeated drops (to the concrete floor)
Industrial grade: IP41
Illumination rating: 0 to 100000lux (9290 feet of candle light)
Scanning performance
Scan mode: two-dimensional image (838 x, 640 pixel array)
Jitter resistance: the best focus of scanning 13mil, UPC bar code can reach 610 cm / S (240 inches / sec)
Scanning angle: high density HD: level 41.4 degrees; vertical: 32.2 degrees
Standard distance SR: horizontal; 42.4 degrees; vertical: 33 degrees
Recognizable reflected contrast: recent 20% reflection difference
Slope and skewness: 45 degrees, 65 degrees
Decoding capability: able to read standard ID, PDF, 2D barcodes, and various postal codes and OCR characters. Note: the ability to decode depends on the configuration of the product"
Warranty: 5 years, factory warranty
