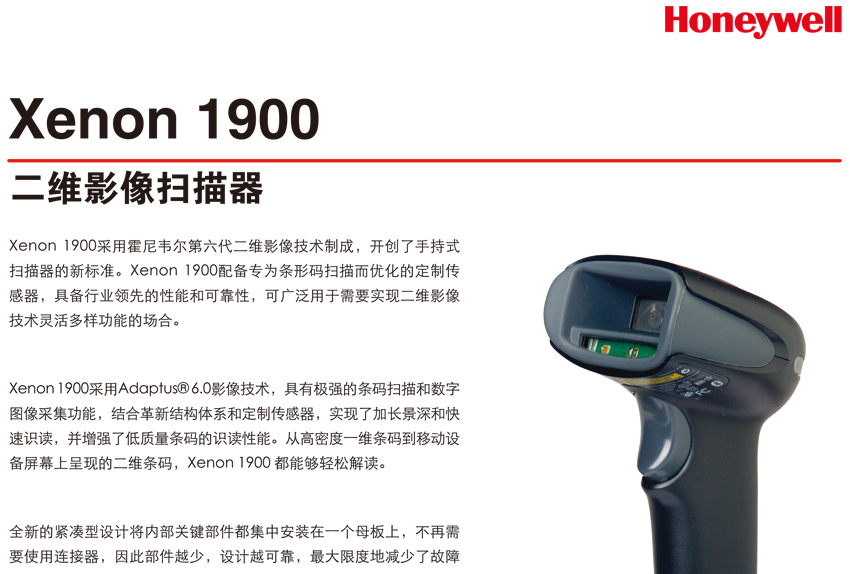

Xenon ™ 1900 two-dimensional image scanning guns
Brand: Honeywell
Model: Xenon ™ 1900

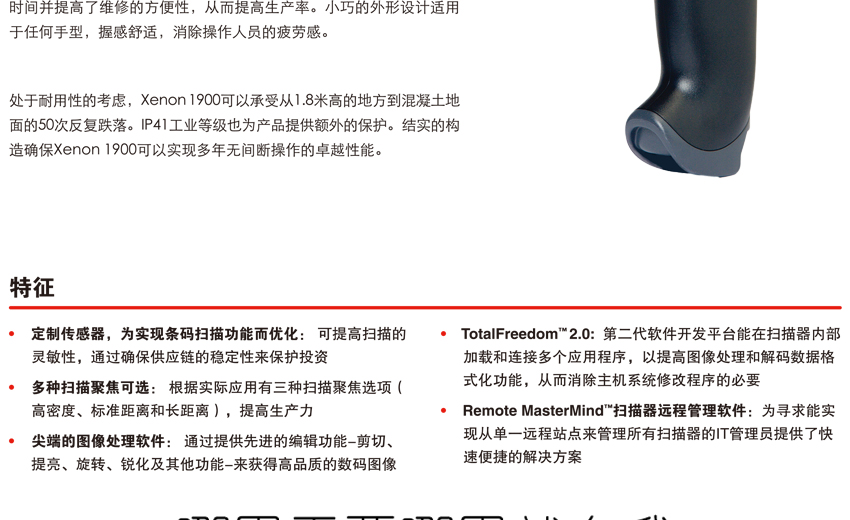

Main features of the product:
1. The selection of three types of scanning focus (high density, standard, long distance) can help improve productivity
2. The built-in image processing software has advanced image editing functions - cutting, lighting, rotation, sharpening, etc., which can output high-precision digital images
3. TotalFreedom ™ 2.0 software secondary development function, can be connected directly to load or a variety of applications to the scanner, with auxiliary, decoding image processing or data format, without additional modify the main system
4. Remote joint ™ scanner management software to make IT managers can be convenient to manage the multiple scanner Remote monitoring
5. Optional medical disinfection shell structure is strong, resistant to chemical erosion and protection of investors' interests
DetailParameterDownloadVideo data
Yojie HF500
Physical / electrical parameters
Dimensions (length x, width, x, height, x): 52.3mmx49mmx29mm
Weight: 50g
Input voltage: 5 + 0.5VDC
Operating power: 2.25W, 450mA (typical) @5VDC
Standby power: 1.25W, 250mA (typ) @5VDC
Interface: USB, RS232
Environment parameter
Operating temperature: -10 degrees C~40 degrees C
Storage temperature: -40 degrees C~60 degrees C
Temperature: 95%
IP level: IP40 (Standard Version)
IP50 (rubber protective sleeve)
Resistance to fall: can withstand multiple times from 1 meters down the impact of cement
Illumination: 0~100000LUX
Scanning performance
Light source: white light LED
Sight: red LED, 617nm
Indicator: Blue blinking = decoding successful
Scan type: image type
Recognizable print contrast: minimum 35% contrast
Rotation angle, elevation angle, deflection angle: 360 degrees, 60 degrees, 70 degrees
Minimum recognition accuracy: ID, 4mil, Code39,2D6.7milQR
Decoding capability: Interpretation of standard one-dimensional and two-dimensional barcodes
