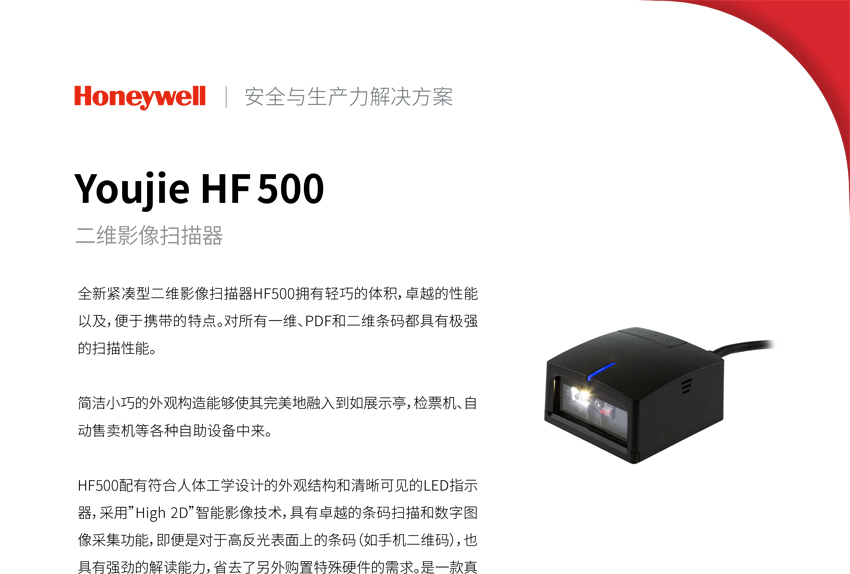

Youjie HF500 2d image scanning gun
Brand: excellent solution
Model: HF500

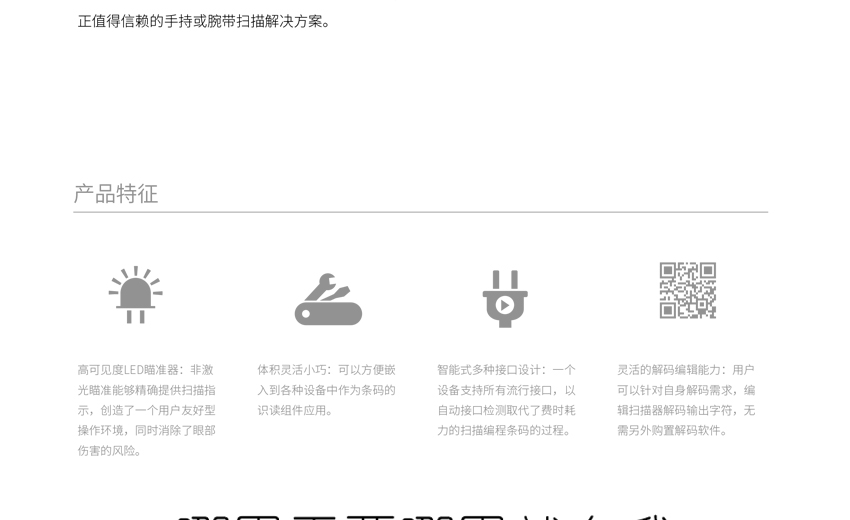

Main features of the product:
1. High visibility LED sight: non-laser targeting can accurately provide scanning instructions, create a user-friendly operating environment, and eliminate the risk of eye injury.
2. Compact size: it can be easily embedded into various devices to be used as bar code for reading components.
3. Intelligent multi-interface design: one device supports all popular interfaces, and automatic interface detection replaces time-consuming and time-consuming scanning programming barcode.
4. Flexible decoding ability: the user can decode the demand for itself, and edit the scanner to decode the output characters without the need for additional decoding software.
DetailParameterDownloadVideo data
Yojie HF500
Physical / electrical parameters
Dimensions (length x, width, x, height, x): 52.3mmx49mmx29mm
Weight: 50g
Input voltage: 5 + 0.5VDC
Operating power: 2.25W, 450mA (typical) @5VDC
Standby power: 1.25W, 250mA (typ) @5VDC
Interface: USB, RS232
Environment parameter
Operating temperature: -10 degrees C~40 degrees C
Storage temperature: -40 degrees C~60 degrees C
Temperature: 95%
IP level: IP40 (Standard Version)
IP50 (rubber protective sleeve)
Resistance to fall: can withstand multiple times from 1 meters down the impact of cement
Illumination: 0~100000LUX
Scanning performance
Light source: white light LED
Sight: red LED, 617nm
Indicator: Blue blinking = decoding successful
Scan type: image type
Recognizable print contrast: minimum 35% contrast
Rotation angle, elevation angle, deflection angle: 360 degrees, 60 degrees, 70 degrees
Minimum recognition accuracy: ID, 4mil, Code39,2D6.7milQR
Decoding capability: Interpretation of standard one-dimensional and two-dimensional barcodes
