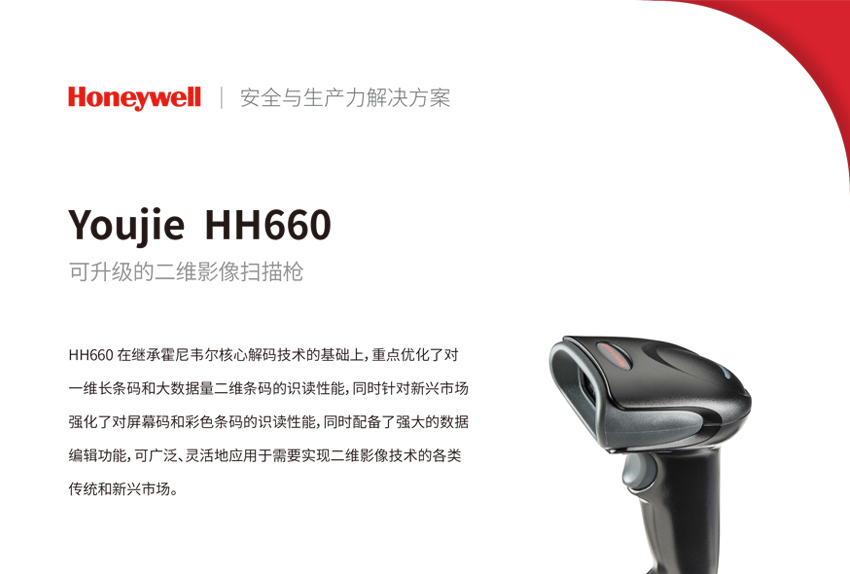

Youjie HH660 2d image scanning gun
Brand: Youjie
Model: HH660
Main features of the product:
1. New decoding architecture design, further optimize the bar code to read the degree, and effectively guarantee the user experience and operation efficiency.
2. The professional screen code and color bar code are optimized to make the products applicable to all kinds of emerging market.
3. Provide the economical 2d barcode scanning function, a machine can satisfy the current and future barcode scanning demand of the enterprise.
4. The exquisite shape design is suitable for any hand type, holding a comfortable grip, even if it is high intensity scanning operation, it is not easy to be tired.
DetailParameterDownloadVideo data
Yojie HH660
Physical / electrical parameters
Dimensions (length x, width, x, height, x): 62mmx169mmx82mm
Weight: 130g
Input voltage: 4.0~5.5VDC
Operating power: 2.0W, 400mA (typical) @5VDC
Standby power: 0.45W, 90mA (typ) @5VDC
Interface: USB
Environment parameter
Operating temperature: 0 degrees C~40 degrees C
Storage temperature: -40 degrees C~60 degrees C
Temperature: 5%~95%
IP level: IP42 (Standard Version)
Resistance to fall: withstands the impact of falling cement from 1.5 meters
Illumination: 0~100000LUX
Scanning performance
Light source: red LED
Sight: green LED, 528nm
Indicator: red flashing = decoding successful
Scan type: image type
Recognizable print contrast: minimum 35% contrast
Rotation angle, elevation angle, deflection angle: 360 degrees, 60 degrees, 70 degrees
Minimum recognition accuracy: 4mil
Decoding capability: Interpretation of standard one-dimensional and two-dimensional barcodes
Scan speed: 30 frames per second
Movement tolerance: 10cm/s
