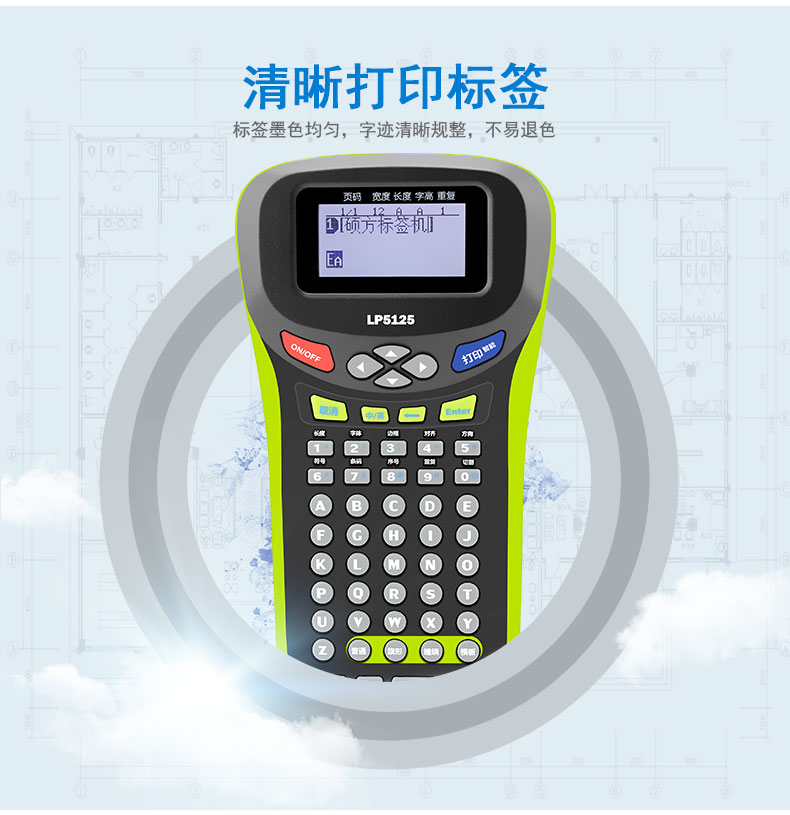

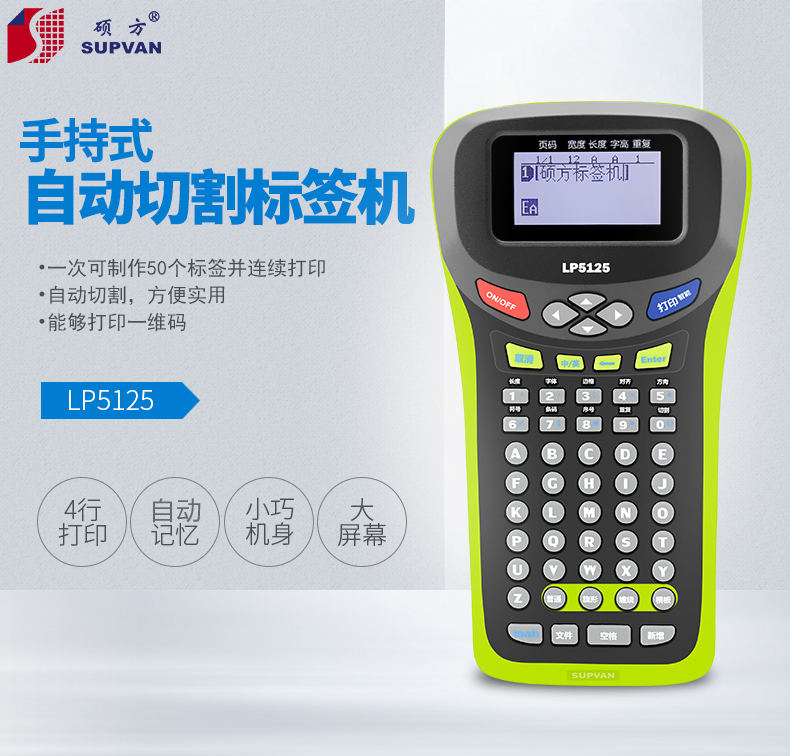

SUPVAN LP5125 label

Brand: SUPVAN
Model: LP5125
Main features of the product:

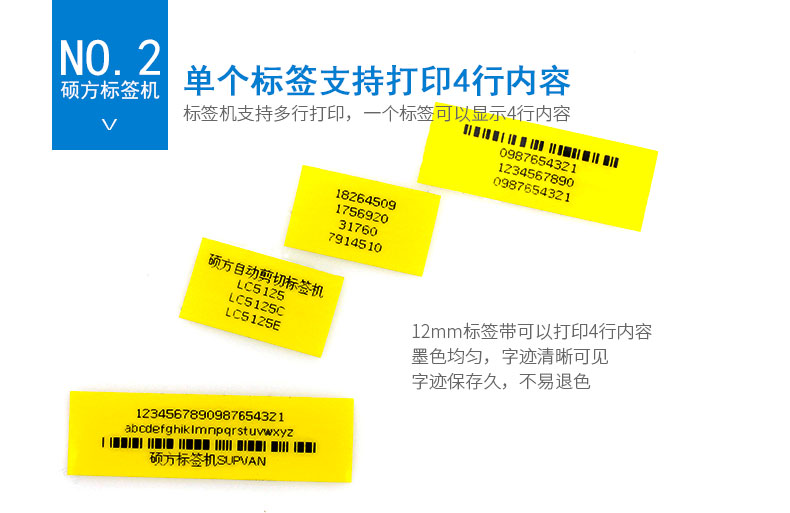

1. Printing range is larger: the maximum can print 4 lines of content label;
2. Unique design: a key for you to save tedious lengthy menu function, meets the design requirements of you to tag a key, can quickly set up (flag label and the label of twisting, template tags, form tag);

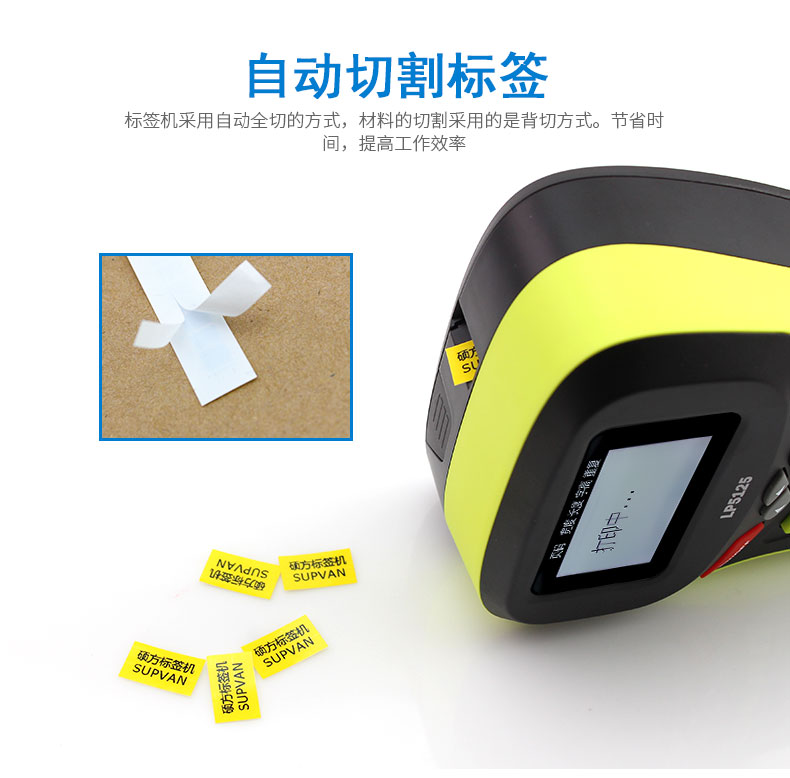

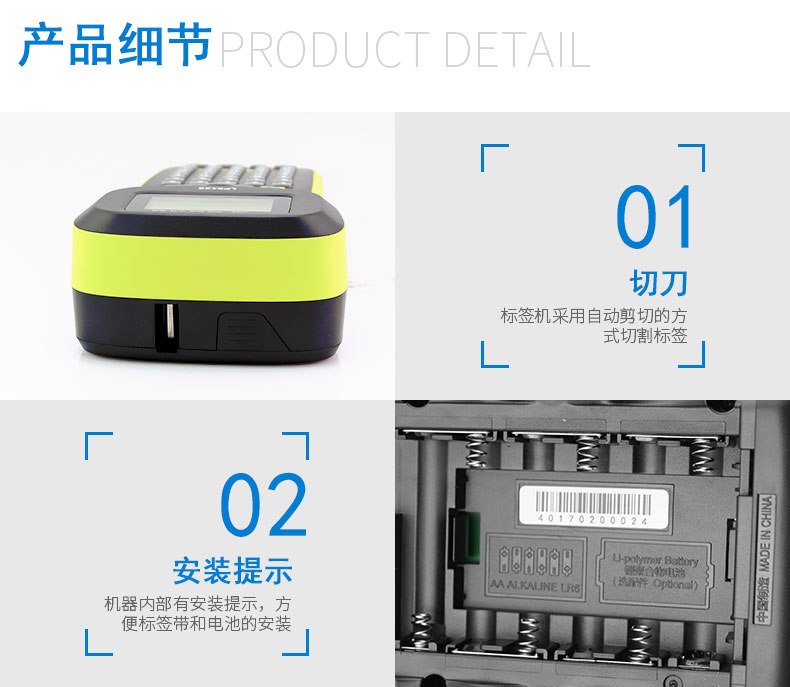

3. Automatic shearing function: realizing automatic shearing label, faster printing speed and overall improvement of your label production efficiency;

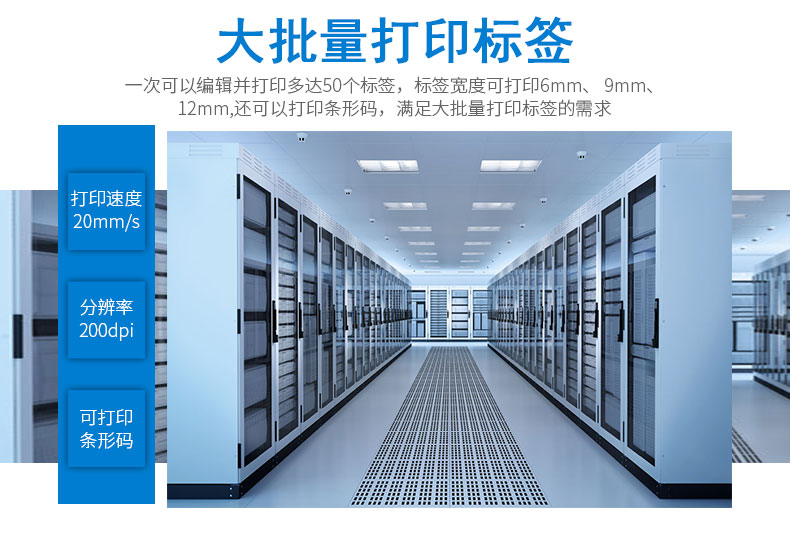

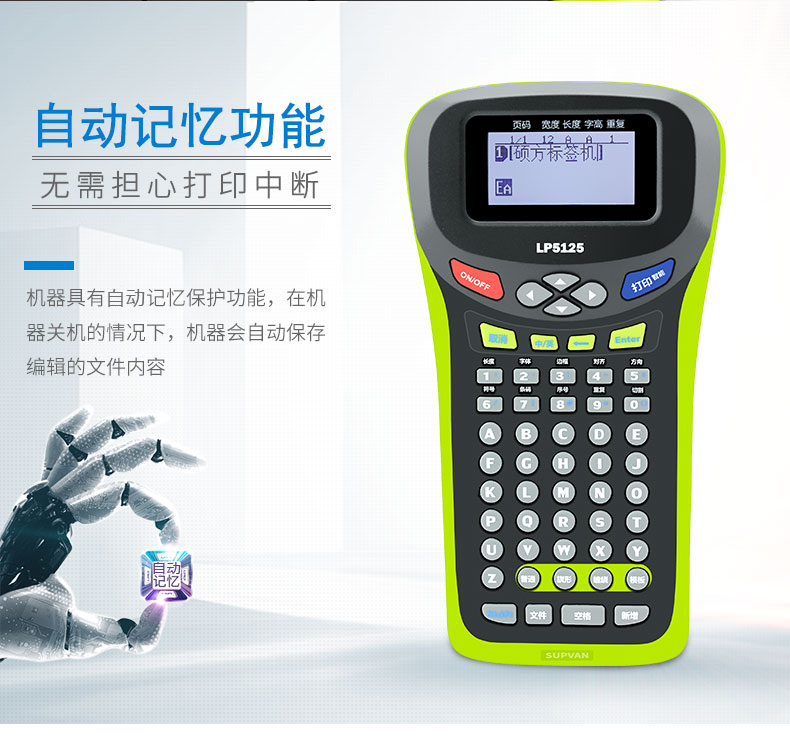

4. Batch label production: the machine can build up to 50 labels and print labels quickly. Strong built-in file storage capacity, can store 64 different files, convenient to call at any time;

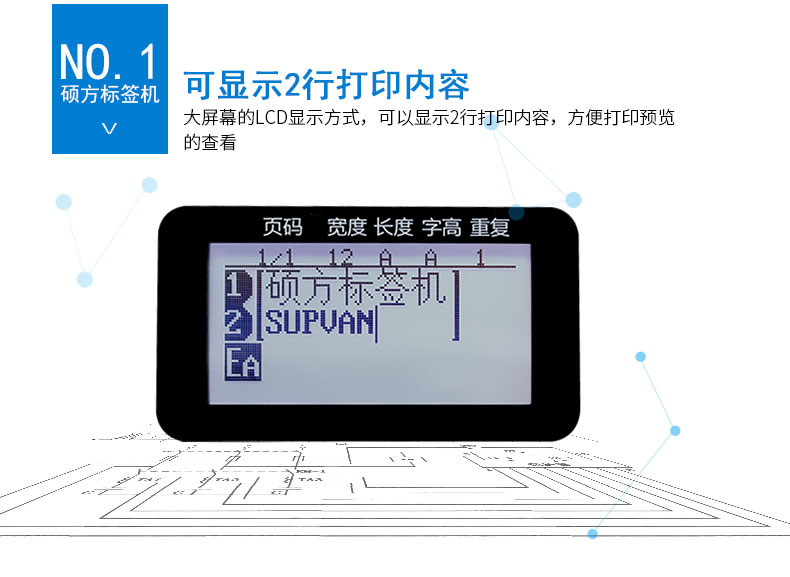

5. Large LCD display: it can display more editing content, making the process of making labels easier and more intuitive;
6. Good outdoor construction guarantee: equipped with hard suitcase (LP5125E), which can effectively protect the label machine;
7. Excellent mobile construction capability: equipped with lithium ion rechargeable battery (LP5125E), capable of printing large quantities of labels and repeatedly using more environmental protection;
8. Automatic shutdown: machine automatically shutdown, low carbon energy saving;

DetailParameterDownloadVideo data

Model

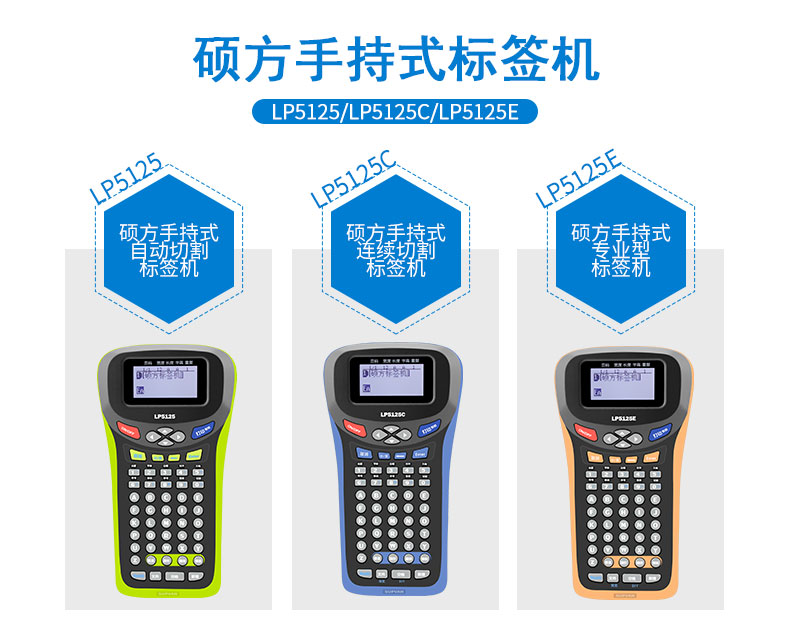

LP5125 LP5125 LP5125E || ||
type
Handheld
Printing method heat transfer printing
Consumables width (label), 6mm, 9mm, 12mm
Effective print height 9mm
Printable rows of 4 lines
Shear mode automatic total cutting
Material cutting method, back cut
LCD displays the LCD white backlight, and the 7 status displays

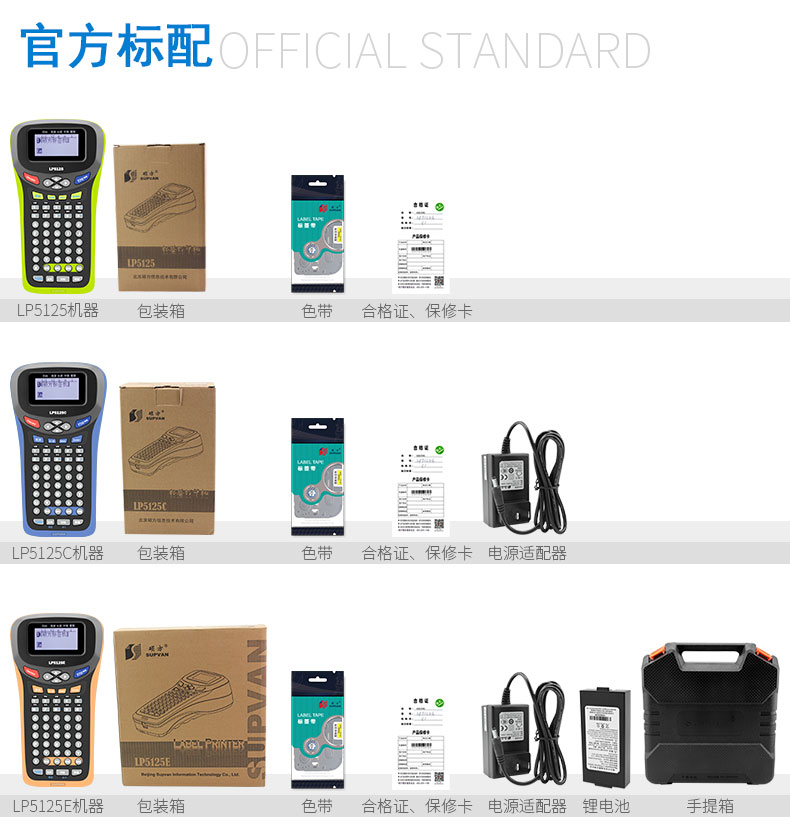

Power adapter selection / selection / standard *
Rechargeable battery not supported / selected / standard *
Portable plastic case standard / selection / standard *
1-50 labels can be edited and printed at the same time
Power supply mode, dry cell, rechargeable lithium battery, adapter *
Frame number 4 routine +87 frame

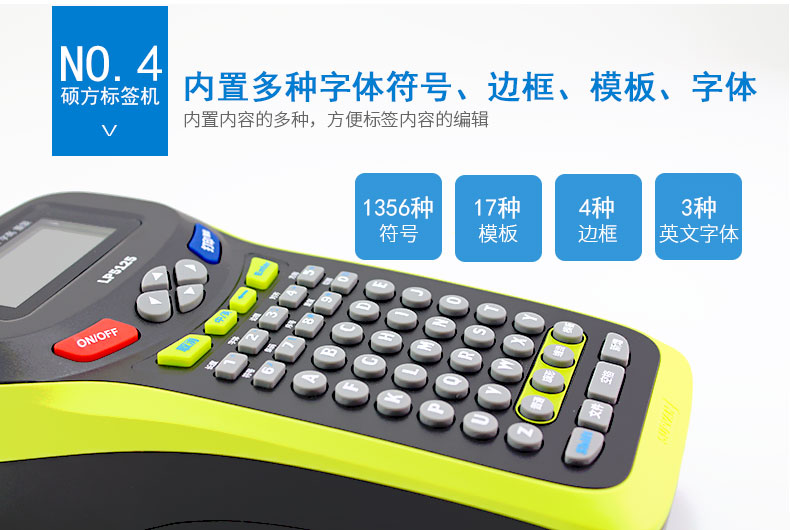

Number of templates 17
Symbol library 1356
The printing precision is greater than or equal to 200DPI
Print speed 20mm/s

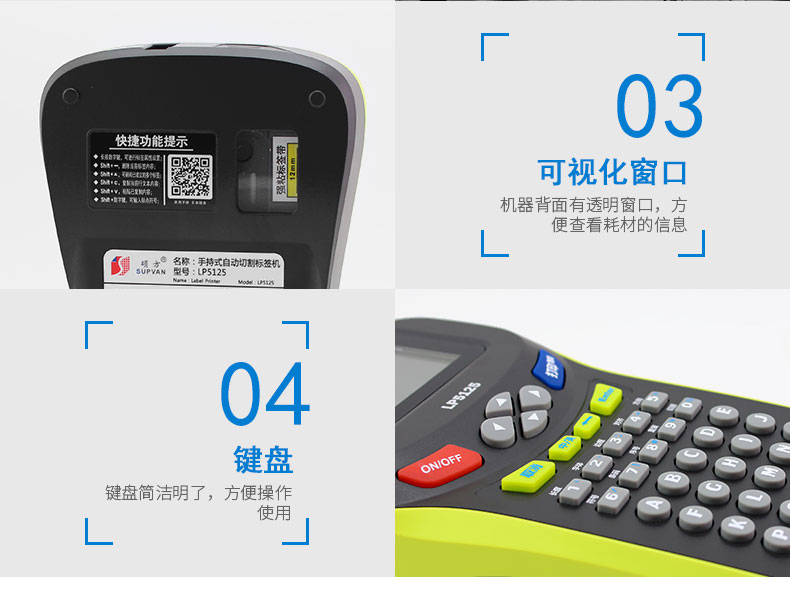

Keyboard type silicone keyboard (54 keys)
Exterior size 222x120x66mm
The weight is less than 630g (not including the ribbon and battery)
Power AC100~240V 50~60HZ (city power)
The working environment temperature is 10 degrees C~35 degrees C
Working environment humidity 20~80% does not dew

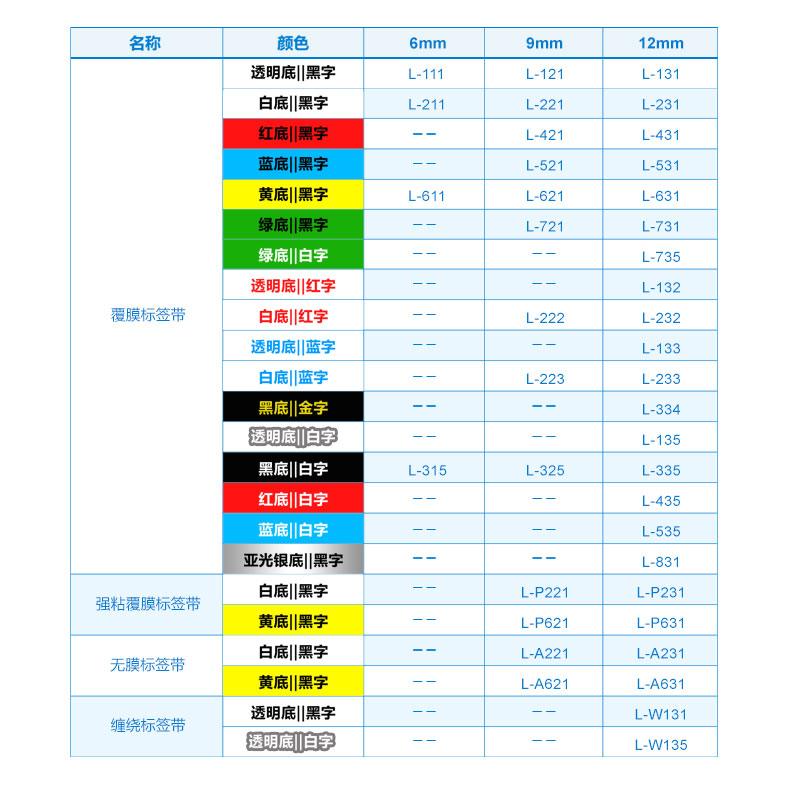

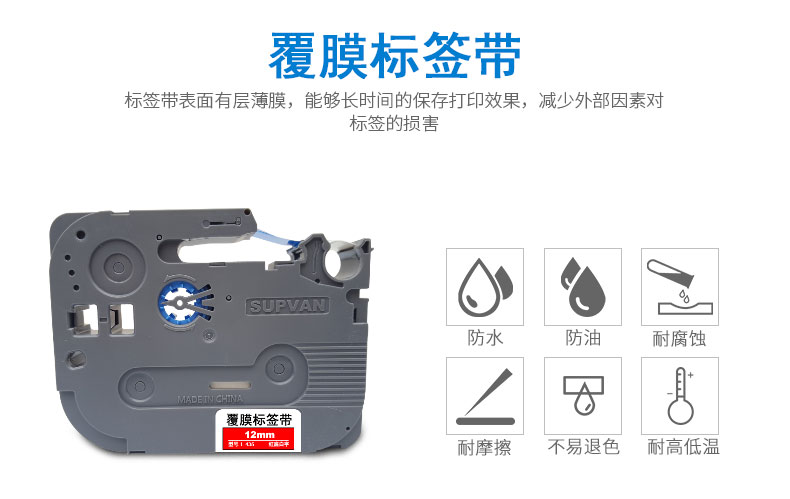

Material type, film coated / strongly adhesive / winding / no film, in four categories
Storage temperature -10 degrees C~+55 degrees C
Input voltage 9V
The input current is less than 2.5A
Dry cell type 5, dry cell X6 section
