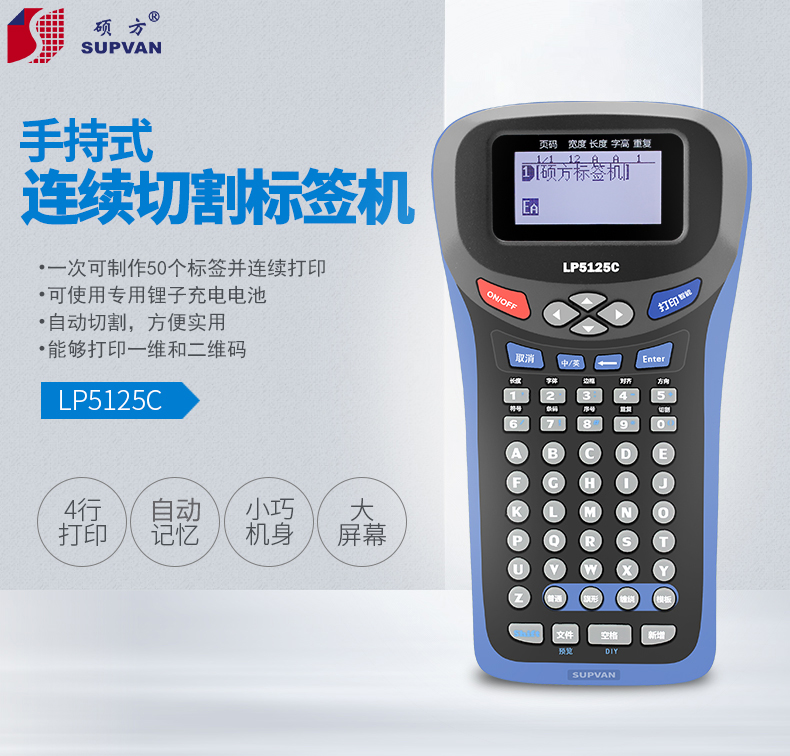

The label SUPVAN LP5125C

Brand: SUPVAN
Model: LP5125C
Main features of the product:

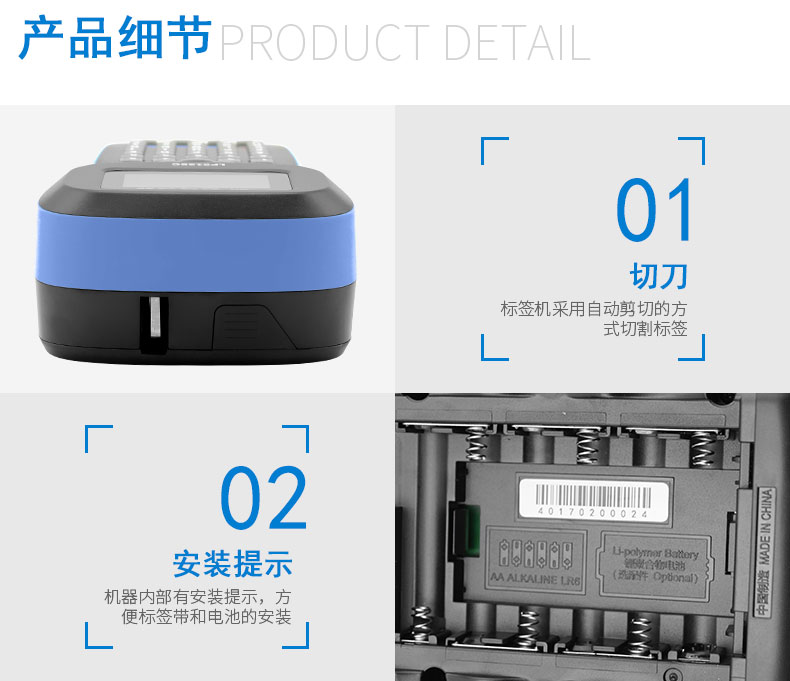

The country's first automatic cutting function holds a label.
2. Industry first printing function;

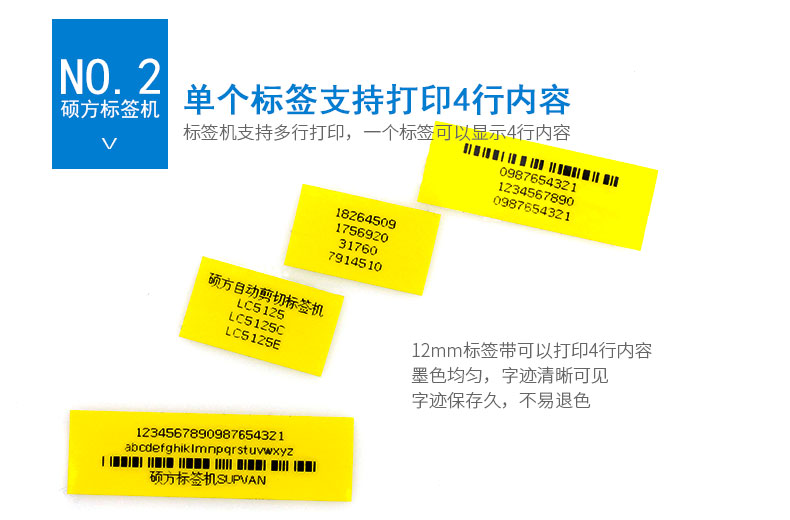

3. Print up to 4 lines;
4. Make 50 labels at a time and achieve continuous printing;
5. Can print 6mm, 9mm, 12mm wide label;
6. Unique custom table label function;
7. Built-in 8 styles of English fonts;
8. Up to 7 font sizes are available;
9. 64 files can be stored;
10. Printing accuracy 200DPI;
11. Convenient one-click mode switching function;

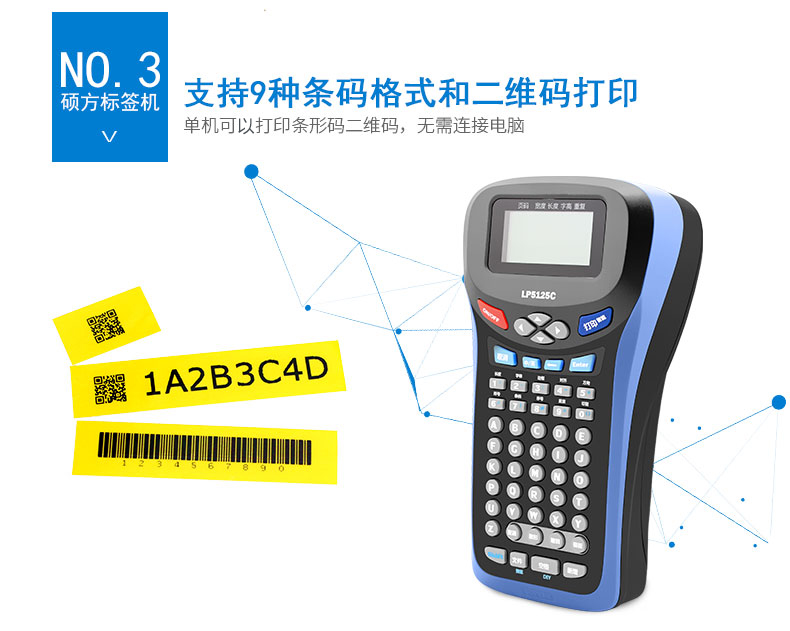

12. Built-in 9 bar codes;
13. Make a qr code label;
14. Three types of power supply methods: (lithium-ion battery charging battery, 6 AA alkaline battery, power adapter);
15. Humanized LCD backlighting design.

DetailParameterDownloadVideo data

Model

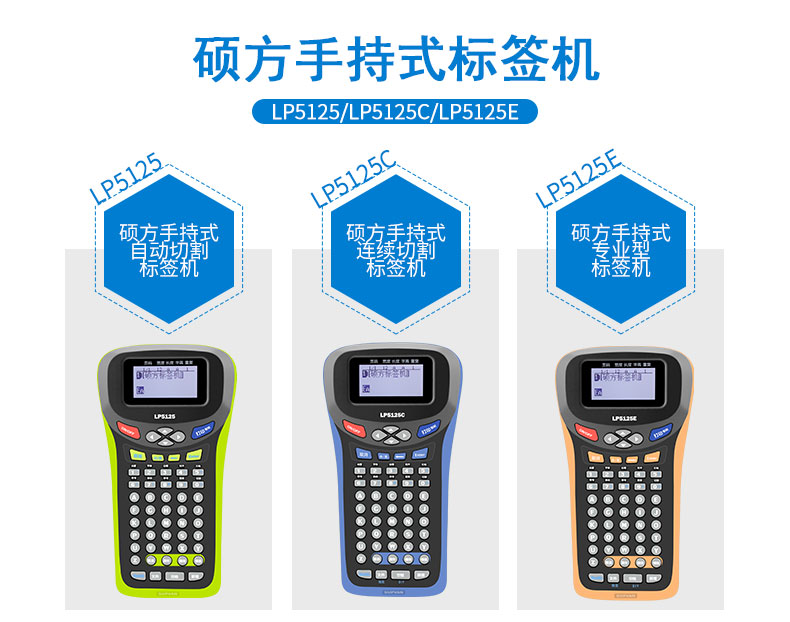

LP5125 LP5125 LP5125E || ||
type
Handheld
Printing method heat transfer printing

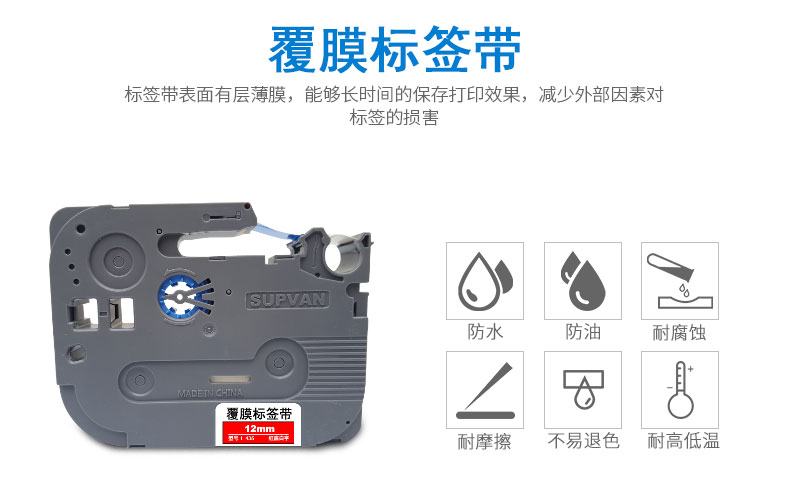

Consumables width (label), 6mm, 9mm, 12mm
Effective print height 9mm
Printable rows of 4 lines

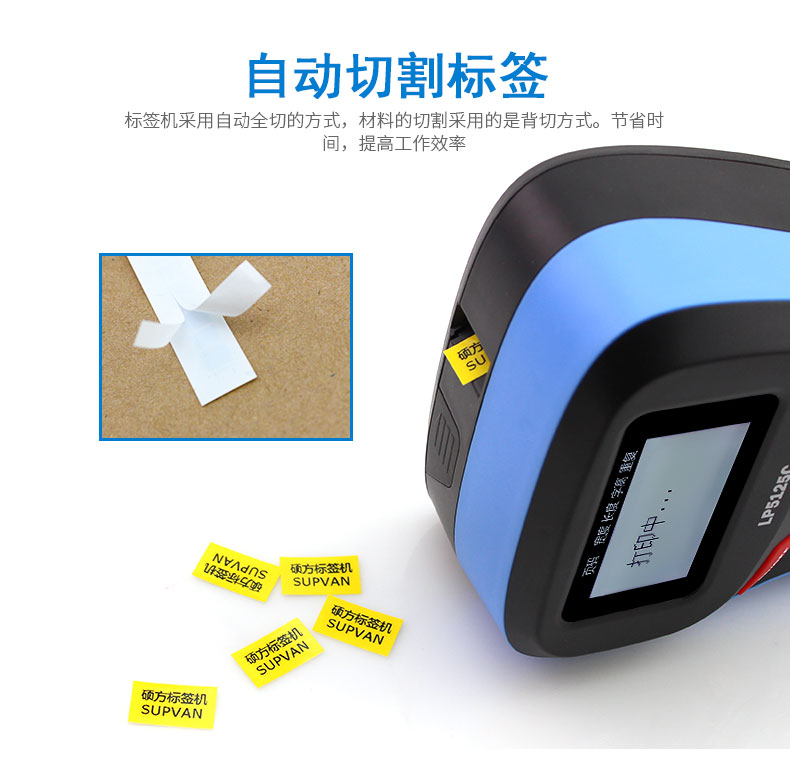

Shear mode automatic total cutting
Material cutting method, back cut

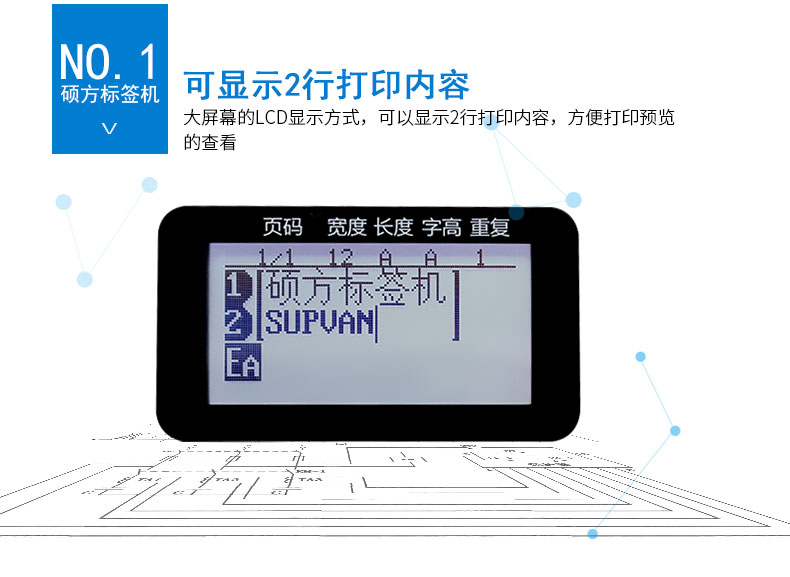

LCD displays the LCD white backlight, and the 7 status displays

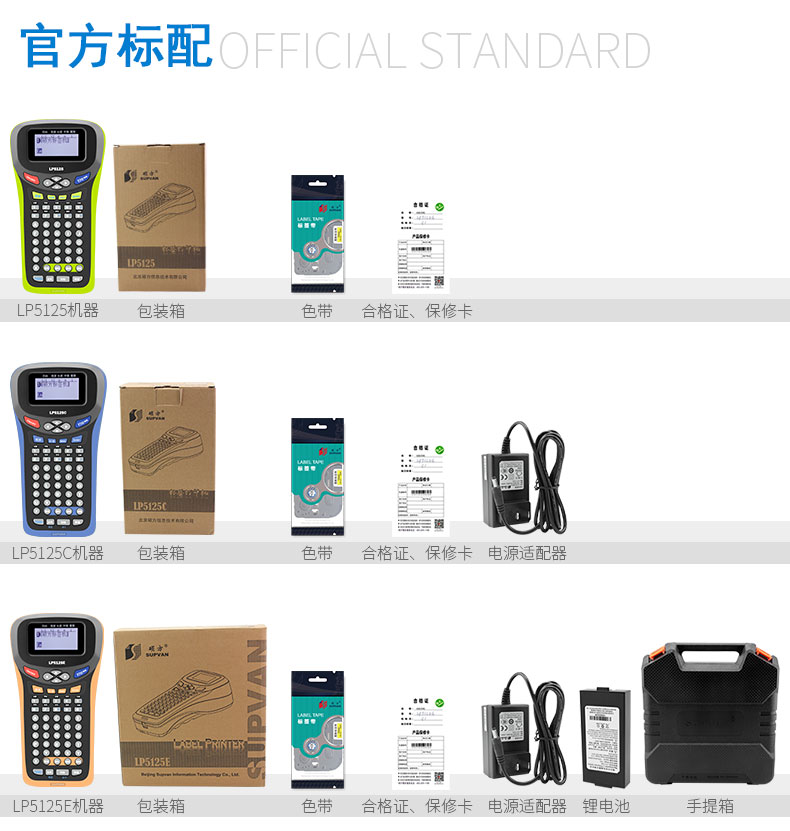

Power adapter selection / selection / standard *
Rechargeable battery not supported / selected / standard *
Portable plastic case standard / selection / standard *
1-50 labels can be edited and printed at the same time
Power supply mode, dry cell, rechargeable lithium battery, adapter *

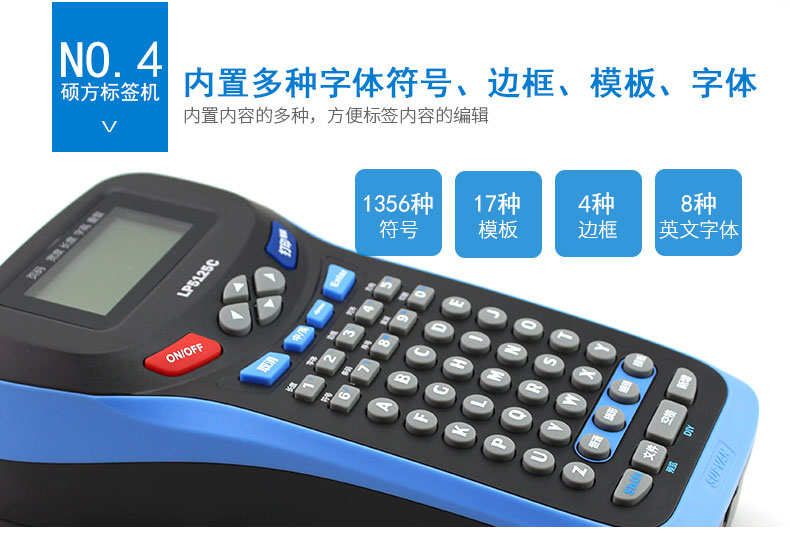

Frame number 4 routine +87 frame
Number of templates 17
Symbol library 1356
The printing precision is greater than or equal to 200DPI
Print speed 20mm/s

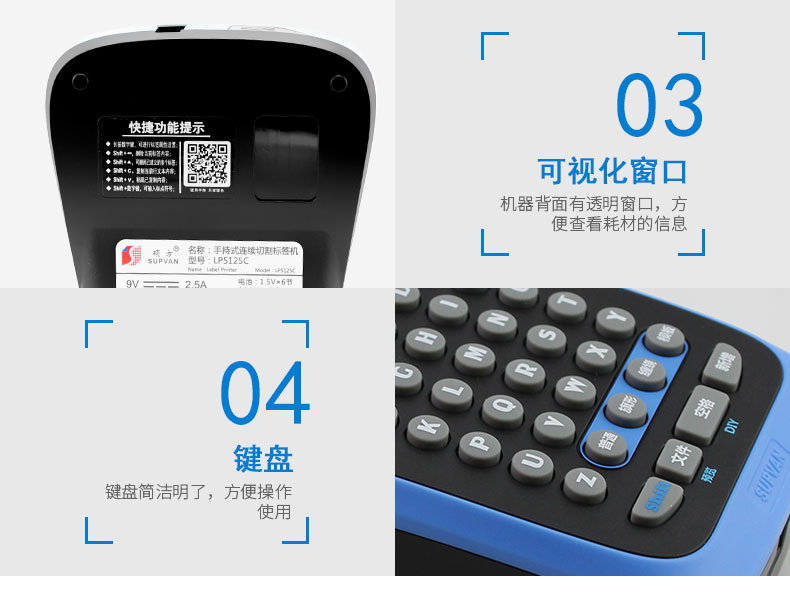

Keyboard type silicone keyboard (54 keys)
Exterior size 222x120x66mm
The weight is less than 630g (not including the ribbon and battery)
Power AC100~240V 50~60HZ (city power)
The working environment temperature is 10 degrees C~35 degrees C
Working environment humidity 20~80% does not dew

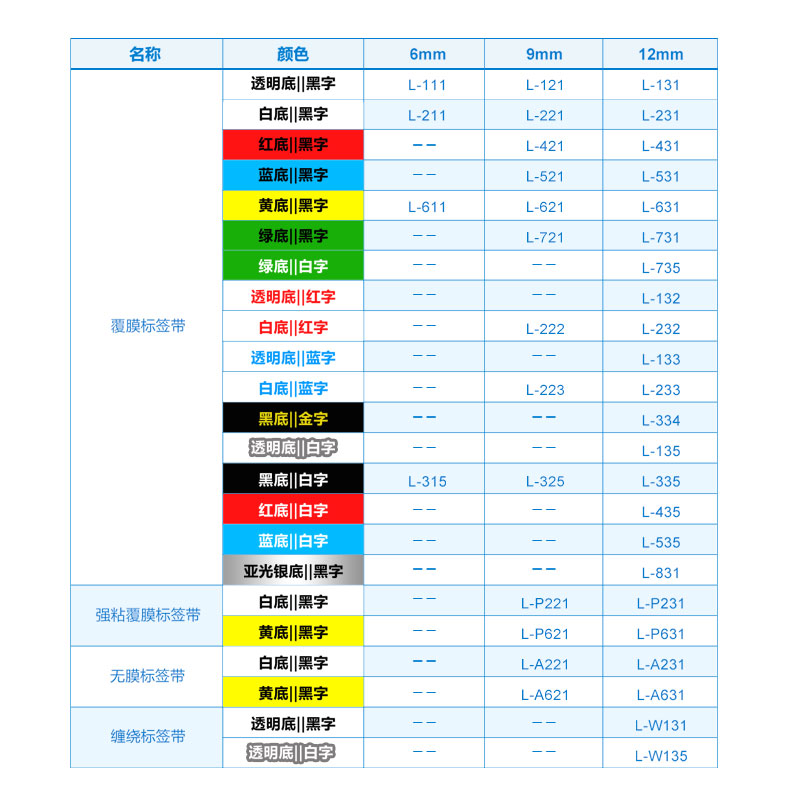

Material type, film coated / strongly adhesive / winding / no film, in four categories
Storage temperature -10 degrees C~+55 degrees C
Input voltage 9V
The input current is less than 2.5A
Dry cell type 5, dry cell X6 section
