hardware
The dimensioning (W by D by H) 170 times 222 by 148

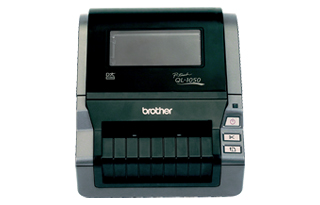

Machine type thermal computer label printer
The weight of 1690 g
Interface RS - 232C, USB port (1.1 or 2.0)
There is no keyboard
Shear automatic shear
The power 220-240 - v
Print height 98.6 mm
The width of the ribbon (mm) is 102mm in width
Heat sensitive to print
Print precision 300dpi
Print speed 110mm/s
Random attachment cd-rom
Use instruction (with warranty)
DK fixed-length label (40 pieces, 102mm x 152mm)
DK continuous label (62mm x 8m)
The power cord
USB cable
features
Text modification of computer fonts
Any size within the effective range of font size
Image printing has
Serial number printing (1-9999 / A ~ Z/A ~ Z)
Print lines are the size of the font
Border 126
Automatic format
Memory 512 KB
Multiple prints (1-9999)
Print preview
Barcode 19
No time function
date-free
On both ends of the blank
System environment
Operating system Win XP/Vista/Win 7
Memory Win XP 128MB or higher;
Win Vista 512MB or higher;
Win 7:1 GB (32-bit) or 2GB (64-bit) or higher
Hard disk 70MB available or higher
Monitor SVGA, HighColor level graphics card
Interface rs-232c, USB port (the 1.1 or 2.0 protocol)
Other cd-rom drives
PC software
Edit software p-touch Editor 5.0
Windows XP/Vista/Win 7
Driver QQL - 1050
