Print type heat sensitive
Resolution 203 dpi
The width of the printing paper is 16 ~ 82 mm
Print speed 3 ~ 5 inches/SEC
Interface type USB + serial port
Memory DRAM: 2M, FLSH: 2M
The printing head temperature detects thermistor
Print head position to detect micro switch
Paper exists to detect photoelectric sensors
Barcode character CODE128 / EAN128 / ITF/CODE39 / CODE93 / EAN13 EAN13 + 2 /
EAN13 + 5 / EAN8 EAN8 + 2 / + 5 / CODABA EAN8 / POSTNET/UPCA + 2 /
UPCA + 5 / UPCE + 2 / UPC/UPC - E - E + 5 / UPCE + 2 / UPC - E + 5 / CPOST /
MSI/MSIC PLESSEY/ITF14 / EAN14
FONT: 0 to FONT 8
The subcharacter amplification/rotation transverse longitudinal can be magnified 1 ~ 10 times, rotating printing (0 ~ 90/270/360 degree)
Graphics monochrome PCX, BMP and other image files can be downloaded to FLASH, DRAM

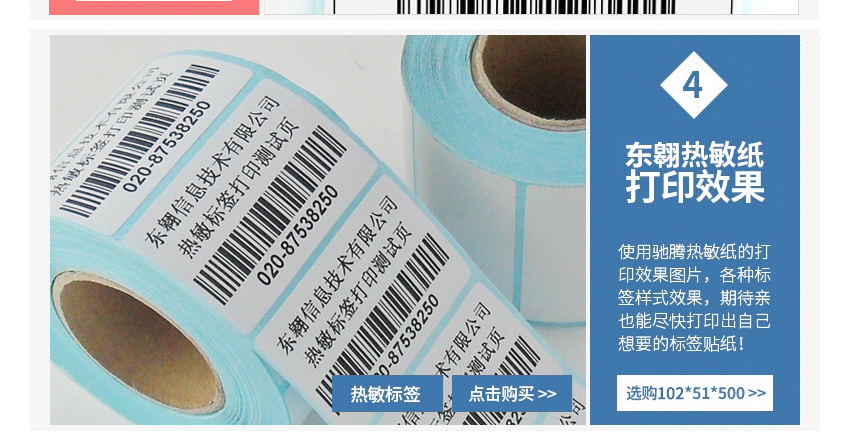

Medium paper type heat sensitive roll paper, adhesive, etc
The medium width is 16 ~ 82mm
The paper volume is 85mm, minimum 25mm
To tear off or peel off paper
Power input 24DC, 2.0 A
The physical property weighs about 1.5kg
Appearance size 150 x 220 x 150 mm (wide x depth x height)
Environmental elements working environment temperature: 5 ~ 45 ℃, humidity: 10 ~ 80%
Storage temperature: - 10 ~ 50 ℃, humidity: 10 ~ 90% (condensation)
