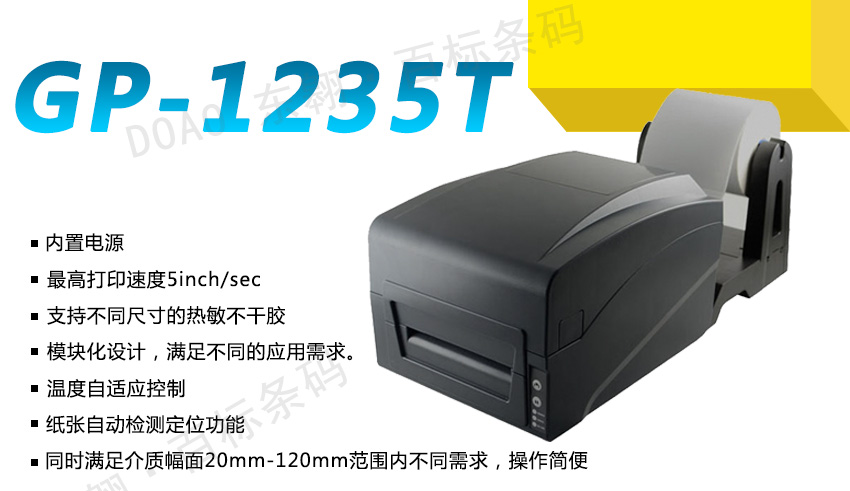

Print specifications
Way of print
Heat transfer/heat sensitive type
The printing speed
1 ~ 5 inch/s
Print interface
4 interface (serial port + USB + interface + mesh)
Print head resolution
300 dots per inch (12 dots/mm)
Print mode
Carbon ribbon/heat sensitive
Printing point size
X0.084 0.084 mm (1 mm = 12 dots)
Maximum print width
104 mm (4.09 ")
Maximum print length
2286 mm (90)"
The general specification
memory
RAM: 8 MB FLASH: 4 MB
Printer size
285 x210x180 (WxDxH)
Printer weight
2.09 KG
The operating environment
5 ~ 45 ℃ (41 to 104 ° F), 25 ~ 85% no condensation
Storage environment
- 10 ~ 50 ℃ (10 ~ 140 ° F), 10 ~ 90% no condensation
Pulse excitation
1 x108pulses
Thermal film (wear resistance)
50 km
The power supply
Input: AC 110V / 240V, Output: DC24V / 2.5a, 60W
Carbon with specifications
Carbon with outer diameter
Maximum 67 mm
Carbon belt length
300 m
Carbon belt axial size
1 inch (25.4 mm)
Carbon belt width
Max. 110 mm, Min. 30 mm
Carbon tape winding form
The volume type
Paper specifications
Built-in volume maximum outer diameter
OD 127 mm (5 ")
The paper type
Continuous paper, gap paper, folding paper, black label paper
Paper winding form
Print the external volume
Paper width (label + bottom paper)
Maximum 120mm (4.72 ") minimum 20mm (0.78 ")
Paper thickness (label + bottom paper)
Maximum 120mm (4.72 ") minimum 20mm (0.78 ")
Paper scroll core size
25.4 mm ~ 38 mm (1 "to 1.5")
Interval height of gap paper
Minimum 2 mm (0.09 ")
The length of the label
10 to 2286 mm (0.39 "to 90")
Note: if the length of the label you use is less than 25.4 mm (1 "), it is recommended to use the label paper on the gap to remove the label
accessories
Standard with external support
