Print specifications
Way of print
thermal
The printing speed
Maximum 8 inch/s; Minimum 2 inch/s
Print interface
USB
Printer resolution
203 dots per inch (eight dots/mm)
Printing point size
X0.125 0.125 mm (1 mm = 8 dots)
Maximum print width
104 mm
Maximum print length
2286 mm (90)"
The general specification
Printer size
285x210x180 (long x width x height)
Printer weight
2.09 KG
The operating environment
5 ~ 45 ℃ (41 to 104 ° F), 25 ~ 85% no condensation
Storage environment
- 10 ~ 50 ℃ (10 ~ 140 ° F), 10 ~ 90% no condensation
Pulse excitation
1 x108pulses
Thermal film (wear resistance)
50 km
The power supply
Input: AC 110V / 240V, Output: DC24V / 2.5a, 60W
Paper specifications
Built-in volume maximum outer diameter
OD 130 mm (5 ")

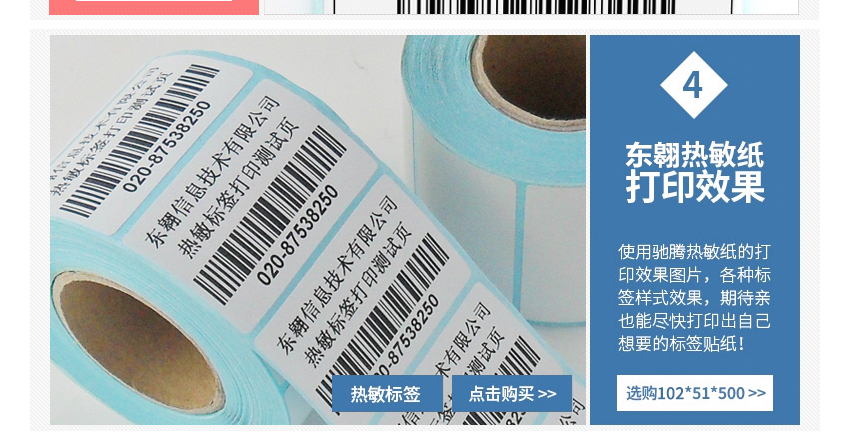

The paper type
Continuous paper, gap paper, folding paper, black label paper
Paper winding form
Print the external volume
Paper width (label + bottom paper)
Maximum 118mm (4.72 ") minimum 26mm (0.78 ")
Paper thickness (label + bottom paper)
Maximum 0.254 mm (10mil) minimum 0.06 mm (2.36 mil)
Paper scroll core size
25.4 mm ~ 38 mm (1 "to 1.5")
Interval height of gap paper
Minimum 2 mm (0.09 ")
The length of the label
10 to 2286 mm (0.39 "to 90")
Note: if the length of the label you use is less than 25.4 mm (1 "), it is recommended to use the label paper on the gap to remove the label
