Printing mode heat transfer
Resolution 300 dpi (11.8pm/mm)
Maximum printing speed 4 ips (101.6mm/s)
Effective printing width 8.64 "(219.5mm)
Maximum print length 79 "(2000 mm)
Memory 8 MB FLASH ROM, 32 MB SDRAM
Width of label volume: maximum 10.23 (260 mm), minimum 3.54 '(90mm)
Outer diameter: maximum 8.27 "(210 mm), inner diameter: 3" (76.2 mm)
The label thickness is 0.0024 "-0.019" (0.06-0.48mm), including the base paper thickness
Outer diameter of carbon coil specification: maximum 3.54 (90mm), inner diameter: 1 "(25.4mm)
Maximum width: 8.66 '(220 mm), maximum length: 1968' (600 m), outer carbon
Paper detection mode reflector (movable)/penetration (movable)
Text printing PPLE directive: built-in five kinds of dot matrix font and 24 - point Chinese song body, support to download Truetype font

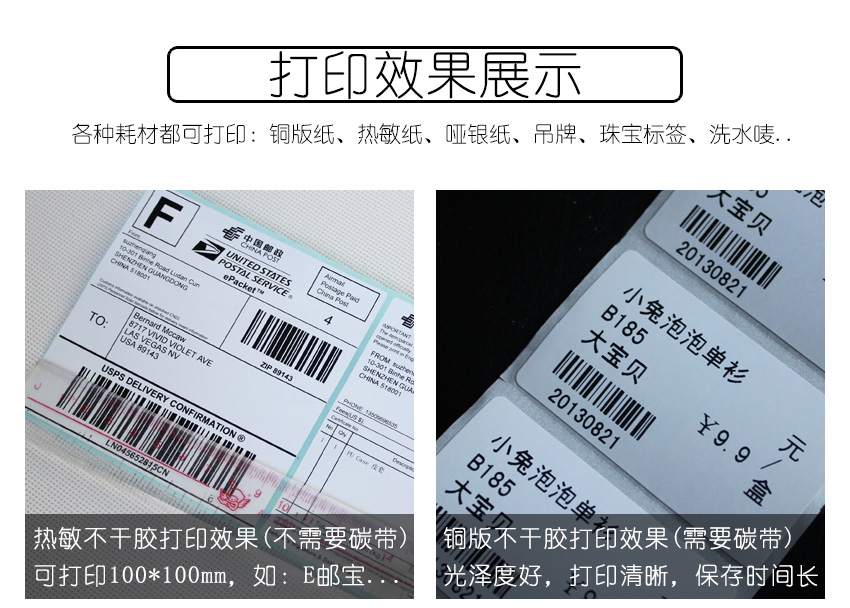

Bar Code printing Code 39, the Code 93, Code 128 / subset of A, B, C, Codabar, Interleave 2 of 5, UPC A/E 2
5 add - on, EAN - 13/8/128, ucc-128, etc.
MaxiCode, PDF417, Datamatrix, QR Code and other 2d barcodes
Interface RS - 232 serial port, 10/100M - bit Ethernet port, USB DEVICE 2.0 interface, USB HOST interface
The power rating is 100 ~ 240 V, 50/60 Hz
9 KGS net weight for
The fuselage size is 375 mm x depth 435 mm x height 250 mm (paper warehouse expansion)
Width of 37mm x depth 360 mm x height 250 mm (paper warehouse collection)
Working environment temperature: 0 ℃ to 40 ℃ (32 ° F ~ + 104 ° F). Relative humidity: 5% - 85% unexposed
Storage temperature: - 40 ℃, 60 ℃ (40 ° F ~ + 140 ° F). Relative humidity: 5% - 85% unexposed
Extensible RFID UHF features, WiFi, bluetooth
* the model and parameters of the customized version shall be subject to the specific product sheet.
