Print mode heat transfer/heat transfer
Resolution 203 dpi (8 dots/mm)
Print speed 6 IPS (150 mm/s)
Print width 6.61 "(168 mm)
Printing length Min. 0.51 "(13 mm); Max. 118" (3000 mm)
Memory 4MB Flash / 16MB SDRAM
The sensor form is left - shaped, reflected and transmitted

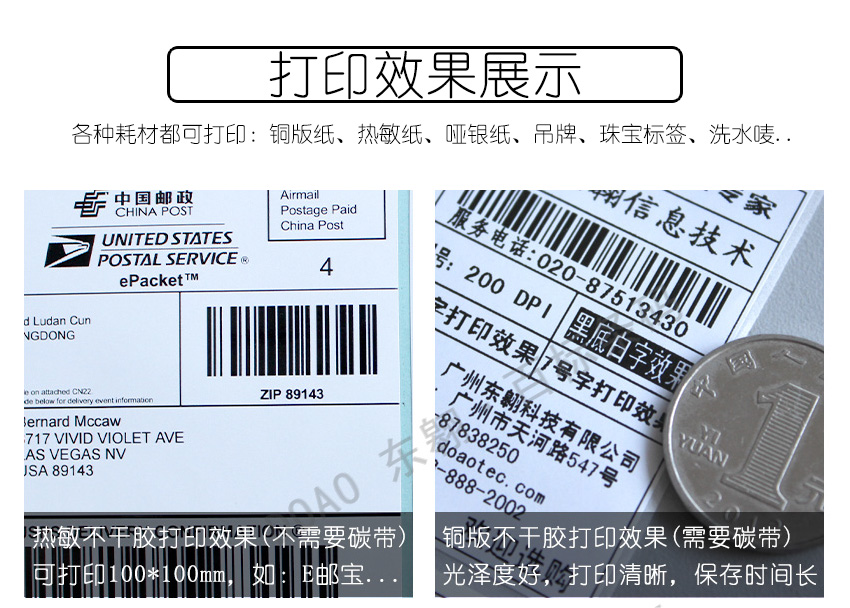

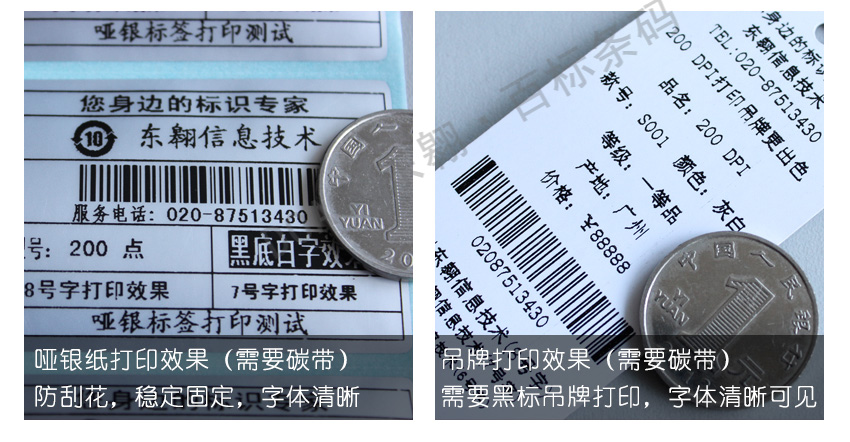

Material specifications paper type: back rubber label paper, between the black mark paper, continuous or folding label paper, no receipt of back glue paper, label length can be manually or automatically detects command control
Paper width: 50.8 mm (2 ") ~ 178 mm (7 ")
Paper thickness: 0.06 mm (0.003 inch) ~ 0.25 mm (0.01 inch)
Outside diameter: 203 mm (8 ") diameter
Paper reel core: 38.1 mm (1.5 ") / 76.2 mm (3 ")
Carbon belt specification material: general waxy type, mixed type, anti-scrape resin type
Length: 450 m (1,471 feet)
Width: 60 mm to 174 mm (2.36 "to 6.85"
Maximum external diameter: 76 mm (2.99 ")
Shaft core: 25.4 mm (1 inch)
Programming Language EZPL GEPL (Godex Eltron ® Printer Language), GZPL (Godex Zebra ® Printer Language)
Random software typesetting software: QLabel IV (supporting EZPL only)
Driver & DLL: support Microsoft Windows 2000, XP and Vista
Built-in Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B
Bitmap fonts print direction can rotation Angle for 0 °, 90 °, 180 °, 270 °, the font can be single rotation Angle for 0 °, 90 °, 180 °, 270 °
Bitmap fonts can be magnified 8 times horizontally or vertically
Vector fonts (scalable font), rotation Angle for 0 ° and 90 °, 180 °, 270 °
Download the font Bitmap fonts, downloadable print direction can rotation Angle for 0 °, 90 °, 180 °, 270 °. Font rotation Angle for 0 ° and 90 °, 180 °, 270 °, can be horizontal or vertical amplifier 8 times
Asia downloadable fonts, print direction can rotation Angle for 0 °, 90 °, 180 °, 270 °, can be horizontal or vertical amplifier 8 times
Downloadable vector fonts (scalable font), the print direction can rotation Angle for 0 °, 90 °, 180 °, 270 °
Bar code 1 - D Bar codes:
Code 39, the Code 93, Code 93 (subset of A, B, C), UCC/EAN - 128 - K Mart, UCC/EAN - 128, UPC A/E (add on 2 & 5), the I 2 of 5, the I 2 of 5 with Shipping Bearer Bars, EAN 8/13 (add on 2 & 5), Codabar, Post NET, EAN 128, DUN 14, HIBC, MSI Mod 10 (1), the Random Weight, Telepen, FIM, China Postal Code, RPS 128 and GS1 DataBar
2-d Bar codes:
PDF417, Datamatrix code, MaxiCode, QR code and Micro QR code
CODEPAGE 437, 850, 851, 852, 855, 857, 861, 862, 863, 865, 866, 869, 869, 869, 737
WINDOWS 1250, 1251, 1252, 1253, 1254, 1255
Unicode (UTF8, UTF16)
Graphic processing support monochrome PCX, BMP, other diagram file types can be supported by software control
Serial port: rs-232 (db-9)
USB port: V2.0
CF card slot (maximum support of 1G, with the EZPL command formatted as FAT16)
10/100 Mbps adaptive Ethernet card (network card and USB cannot be used at the same time)
Control panel backlit LCD display: 128 * 64 dots graphical interface LCD
Three monochrome LED lights: Power, Ribbon, Media
Three groups of multi-function hard body control keys: FEED, PAUSE, CANCEL
Power supply 100-240vac, 50-60hz (dc automatic switching power supply generator)
The timing device Standard
Working environment temperature operation: 41 ° F to 104 ° F (5 ° C to 40 ° C)
Storage temperature: - 4 ° F to 122 ° F (20 ° C to 50 ° C) -
Humidity: 30-85%, non-condensing.
Storage humidity: 10-90%, non-condensing.
(EMC), FCC Class A, CB, cUL, CCC
Length of body: 20.31 (516 mm)
Height: 11.22 (285 mm)
Width: 13.58 "(345 mm)
The body weight is 16.7 kg
Rotary Cutter for purchasing projects
Label Dispenser sensor with internal rewinder (Max rewinding speed is 4 IPS)
Parallel port (Centronics 36-pin) and PS2 port
External label rewinder (4 inch wide only)
Please refer to the original purchasing unit. If the above specifications are subject to change, the actual shipment shall be given priority to; No further notice.
* all trademarks mentioned above belong to the original company
